The Filter Function
The Filter button can be used to control what is displayed in the various tabs (State
Machines, Test Scripts, Test Patterns, Test Results) of the Main Library window. Right ‐
click a state machine, test script, test pattern or test result click the ellipsis icon (see
Figure 7.3) and select Filter to see the available options which are described below.

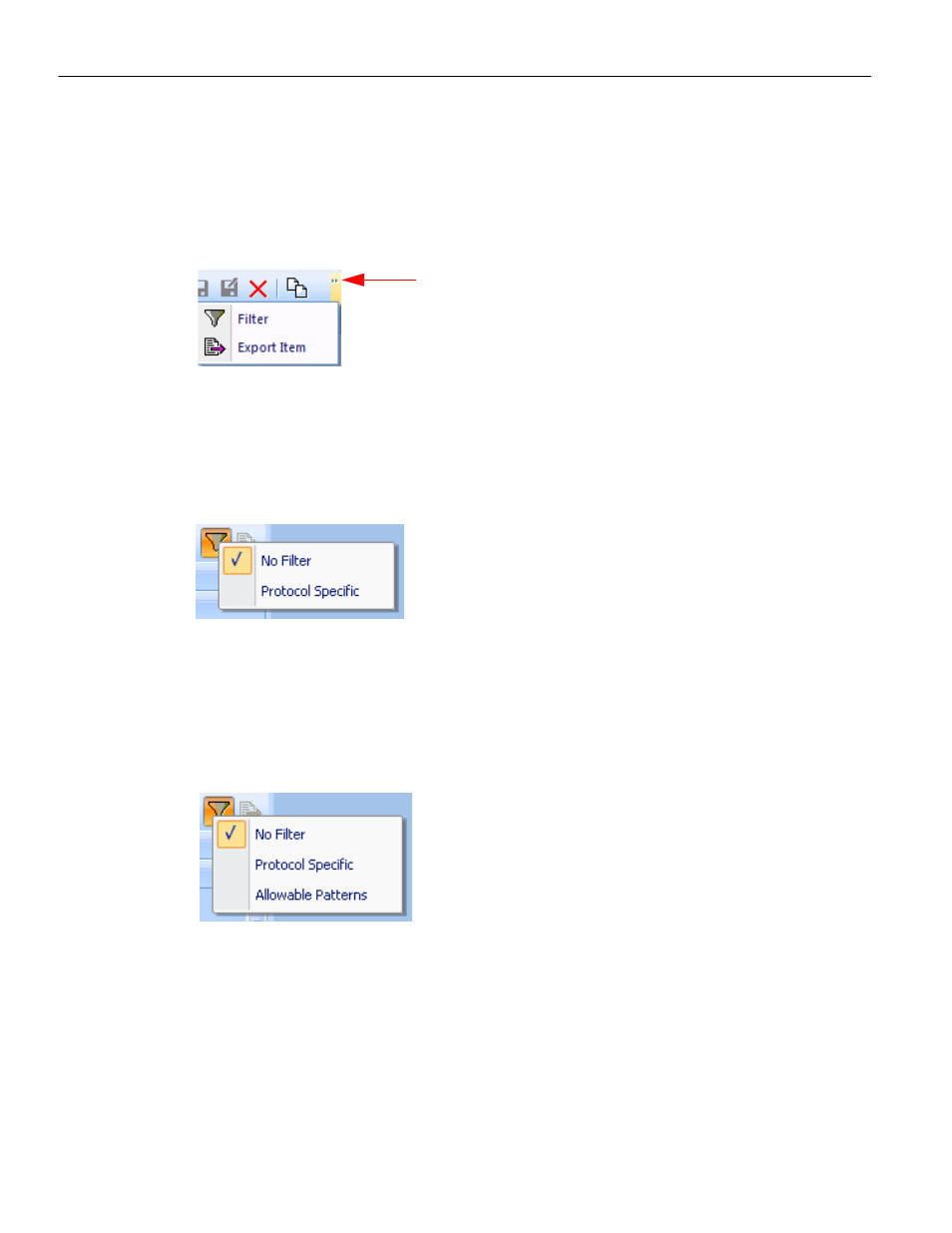

Figure 7.3: Ellipsis Icon
For State Machines and Test Scripts, the user can select either No Filter or Protocol
Specific filter. Selecting Protocol Specific limits the items displayed in the Test Scripts
section to scripts written for the current protocol. (The current protocol is the protocol
selected in the Configuration panel of the Main tab.)
Figure 7.4: Test Script Filter
For Test Patterns, the user can select No Filter, Protocol Specific, or Allowable Patterns.
If Protocol Specific is selected, patterns that have been written for the selected protocol
are displayed. If Allowable Patterns is selected, patterns that are permitted under the
current protocol are displayed. This may include some generic patterns but will exclude
patterns that were written for the current protocol but are not valid under that protocol.
Figure 7.5: Test Patterns Filter
For Test Results (see Figure 7.6 on page 72 ), the user can select No Filter, Today, Last
Week, or Arbitrary Date. If Today is selected, only test results obtained in the last 24
hours are displayed. If Last Week is selected, only test results obtained in the last seven
days are displayed. If Arbitrary Date is selected, a window will appear to allow the user to
select a range of dates.
