Teledyne LeCroy Customizing the Main Library and Output Windows
To access any of the condensed panels, click on the green button that displays in the
condensed and the full panel will display.

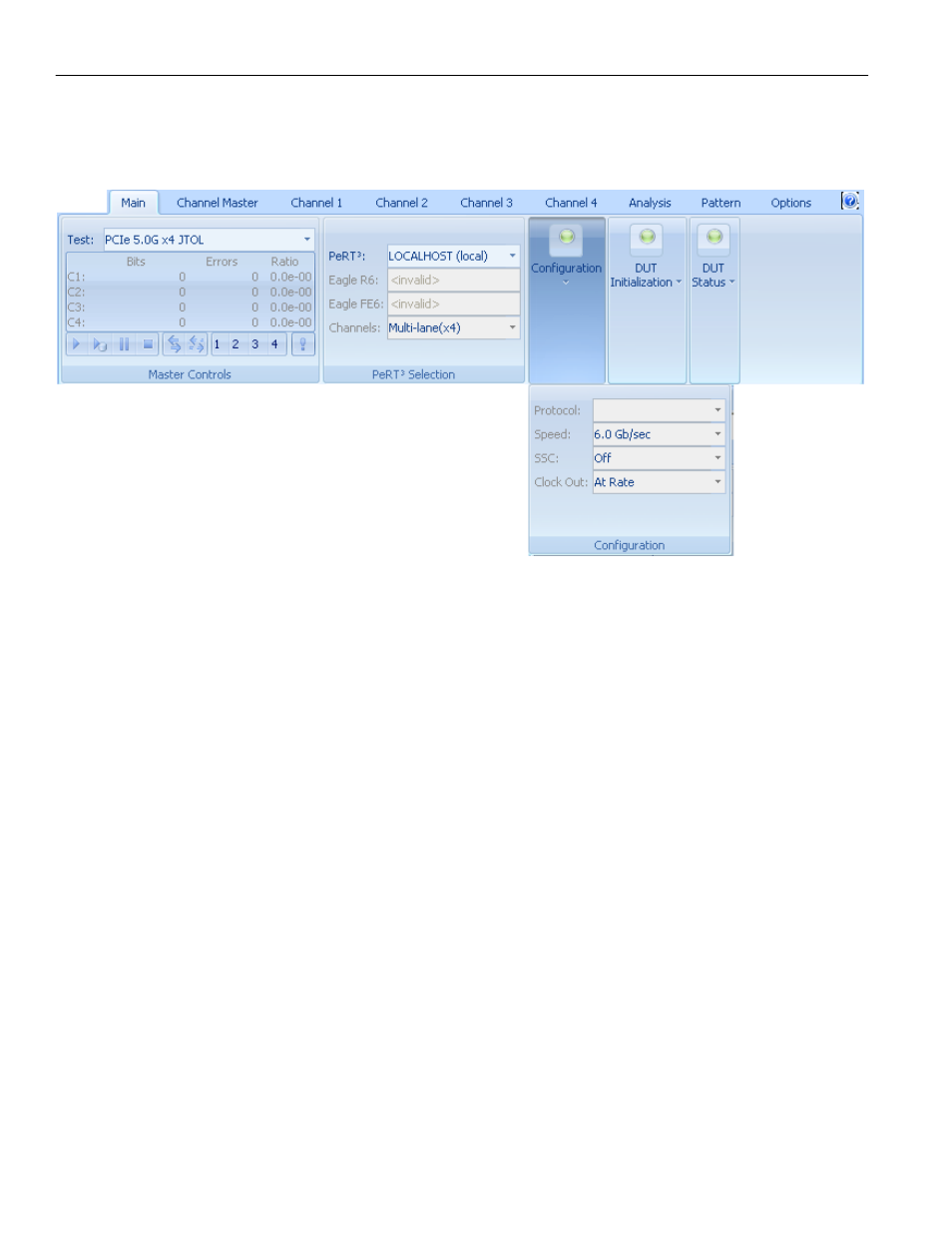

Figure 11.8: Accessing Condensed Panels
Commands and fields available within that panel can then be accessed, and the panel will
re‐condense if the green button is pressed again or if you click anywhere outside the area
of the expanded panel.
Customizing the Main Library and Output Windows
As noted in the overall description of the user interface, there are additional windows
which appear in the PeRT
3
application. These include the Main Library and Output
windows. The functions of these windows are described in detail in “Main Library
Window” on page 69 and “Analysis and Reports” on page 93 .
The Main Library window (see Figure 11.9 on page 109 ) displays by default "docked" to
the lower left edge of the main application window, stretching from the bottom of the
main application window to the bottom of the System Control Ribbon. This window can
be dragged off to create a "floating window" and can then be repositioned anywhere on
the user’s screen.
The Output window provides a log file of events during a test, and appears as shown
below. By default, the Output window is docked to the bottom of the main application
window, but as with the Main Library window, the Output window can be dragged to a
new location to create a floating window.
