Teledyne LeCroy Creating a New Test Pattern

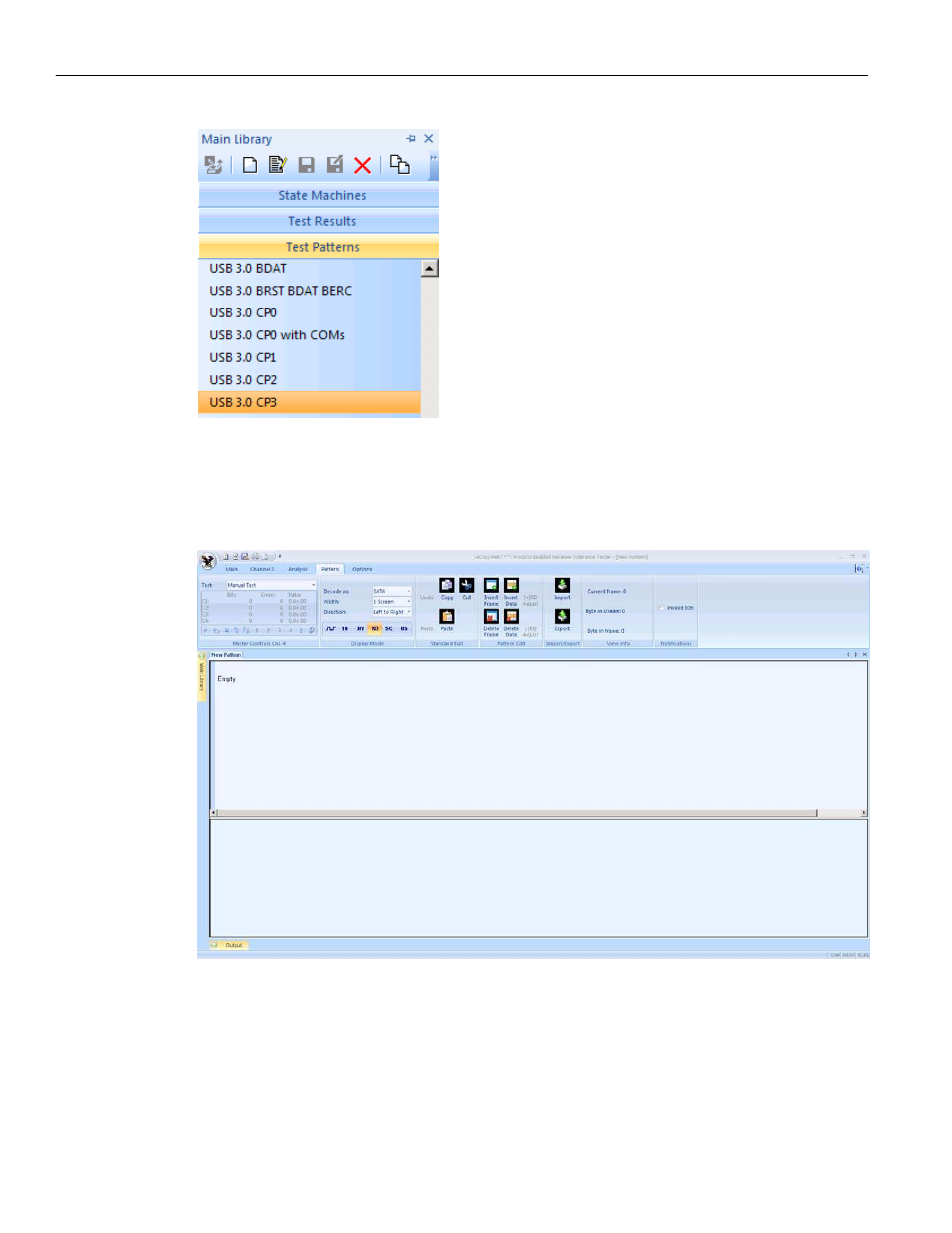

Figure 9.1: Test Patterns Window
To create a new pattern click on the Pattern tab in the System Control Ribbon. The
display, showing the Pattern Editor window and the Pattern tab controls, is shown
below:
Figure 9.2: Pattern Editor Window
