Teledyne LeCroy Creating a New Test Pattern

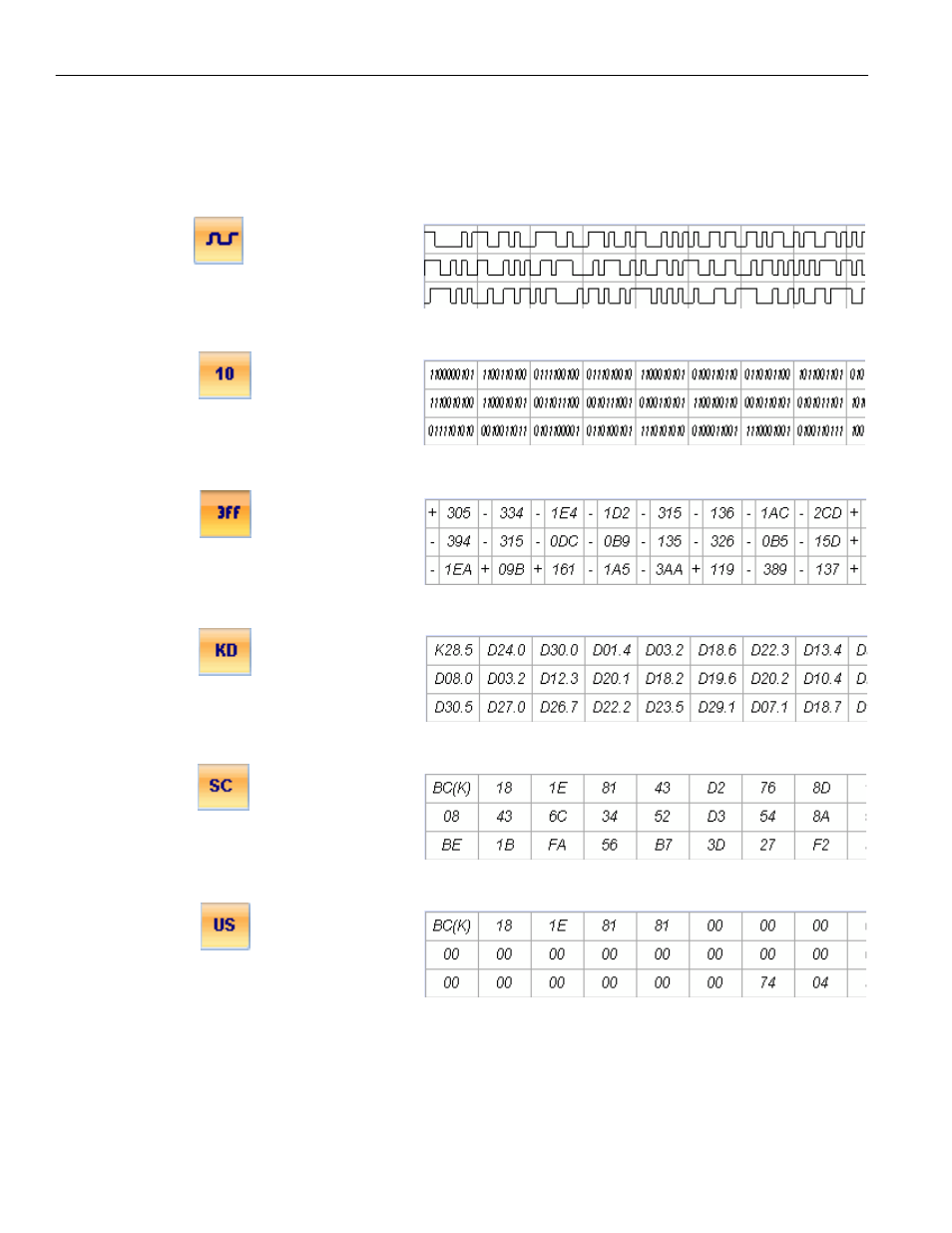

There are six different formats that can be used for displaying the pattern data. From left
to right in the selection bar, these formats are:
Display as a wave form
Display the binary pattern as 1’s and 0’s
Display the pattern in 10bit data format
Display the pattern in K/D symbols (default selection)
Display the pattern in scrambled data format
Display the pattern in unscrambled data format
