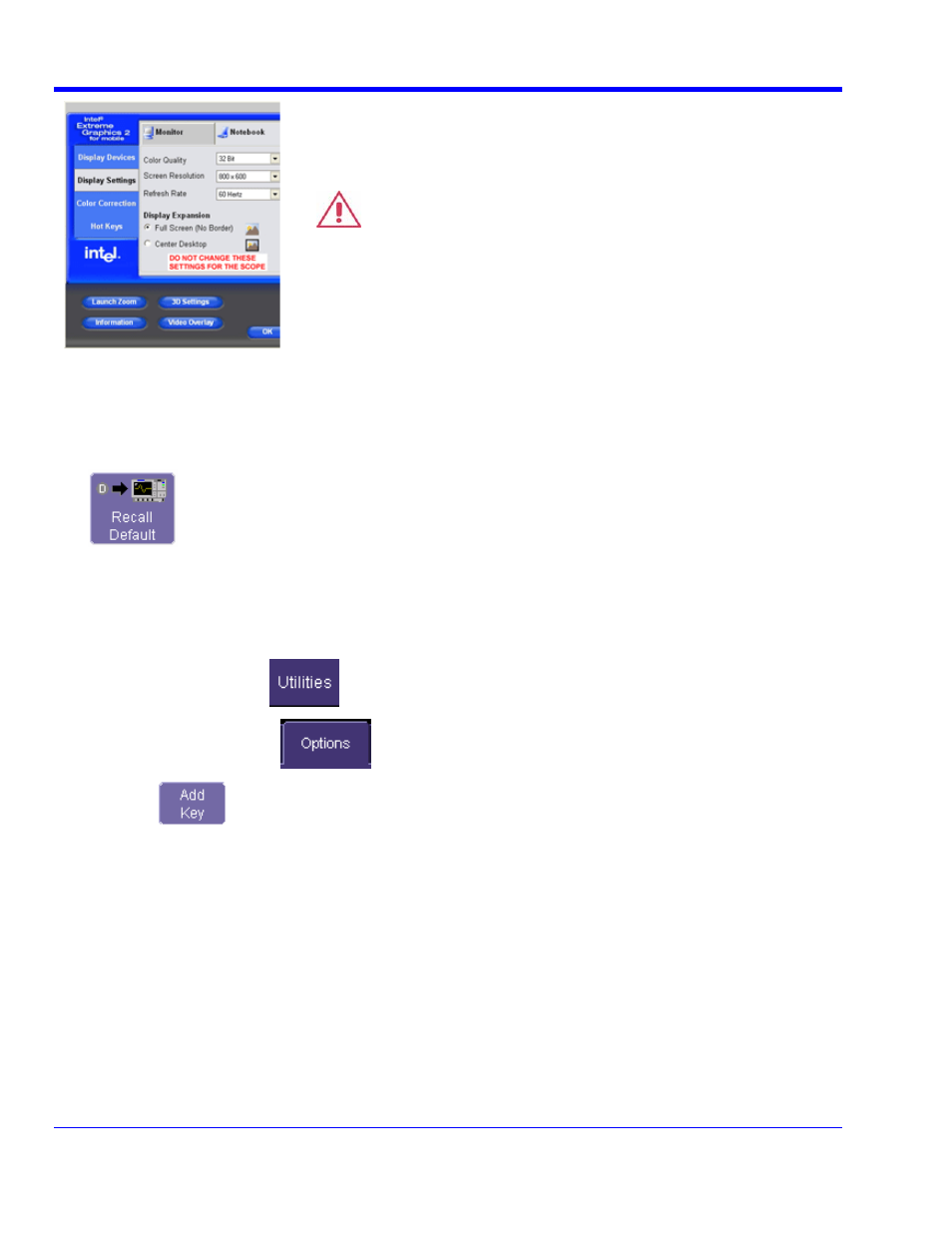

6. Click Display Settings and set the resolution (screen area) and color
palette for the external monitor.
7. CAUTION
8. To maintain proper functioning of the oscilloscope display, do not change
these settings for the Notebook (scope) monitor.
9. Click OK.
Default Settings
1. Touch File in the menu bar, then Recall Setup... in the drop-down menu.
2. Touch the Recall Setup tab in the dialog.
3. Then touch the on-screen Recall Default button.
Adding a New Option
To add a software option you need a key code to enable the option. Call LeCroy Customer Support to place an
order and receive the code.
Add the software option by doing the following:
1. In the menu bar, touch the button.
2. In the dialog area, touch the tab.
3. Touch the button.
4. Use the pop-up keyboard to type the key code. Touch O.K. on the keyboard to enter the information.
The name of the feature you just installed is shown below the list of key codes. You can use the scroll buttons
to see the name of the option installed with each key code listed:
