• A
DJUST C OARSE - This dual-function knob controls the placement of the bottom or
right cursor. When the knob is in Cursor mode, the CURS lamp is lit.
When you click in any field in any dialog, the knob automatically switches from
cursor placement mode to adjustment mode, and the
ADJ lamp lights. This allows
you to dial in coarse-grained values. When you close the dialog, the knob reverts
to cursor placement mode.

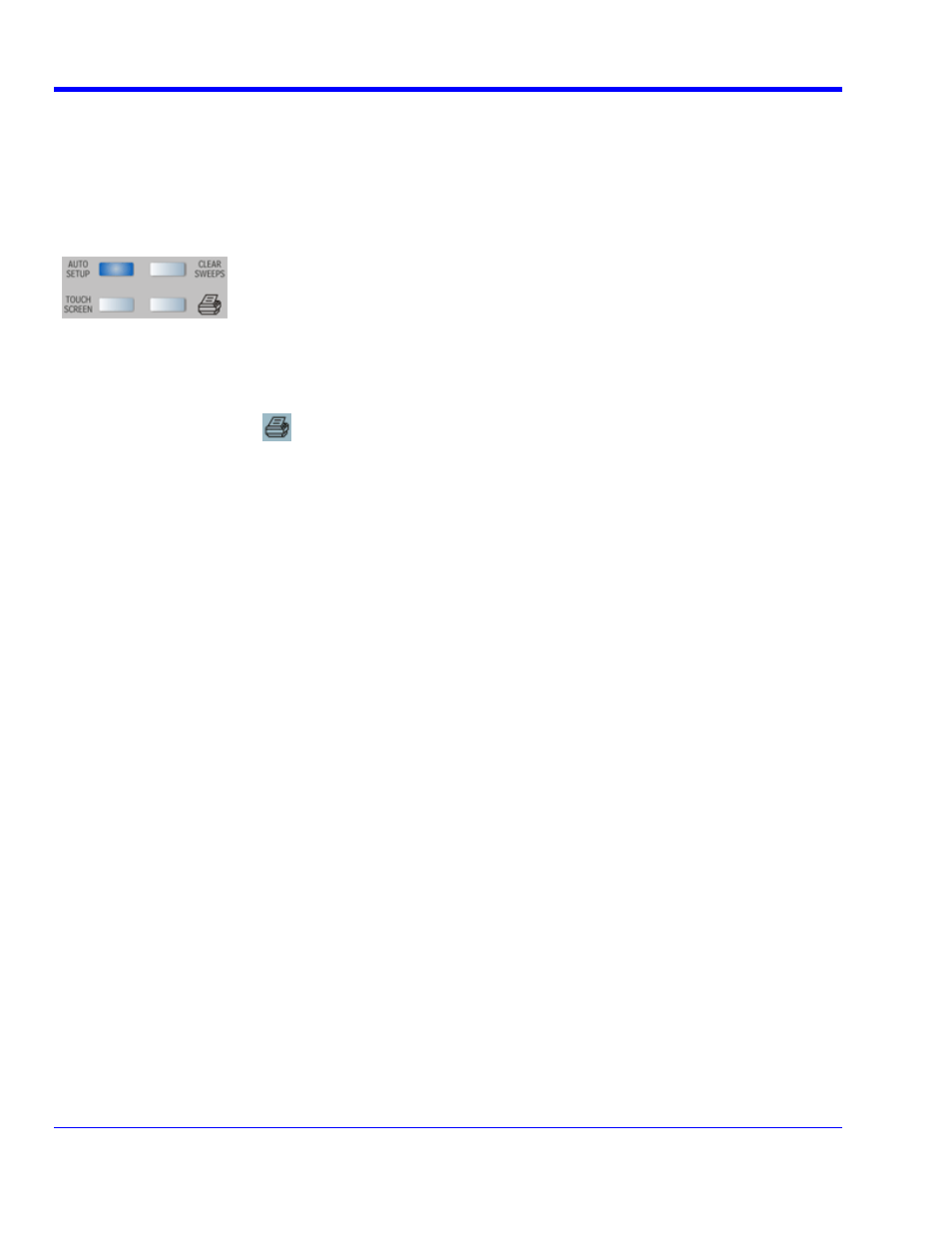

General Control Buttons
• A
UTO S ETUP - Automatically sets the oscilloscope's horizontal timebase (acquisition
system), vertical gain and offset, as well as trigger conditions, to display your
signal.
• T OUCH S CREEN - Activates or deactivates the touch screen.
• C LEAR S WEEPS - Clears data from multiple sweeps (acquisitions) including:
persistence trace displays, averaged traces, parameter statistics, and Histicons.
During waveform readout, cancels readout.
• P RINT S CREEN - Prints the displayed screen to a file, a printer, the clipboard, or
attaches it as an e-mail. You can select the device and format it in the Utilities,
Hardcopy dialog.
