The MATLAB Parameter Editor

By touching

Edit Code, you can reach the MATLAB Editor:

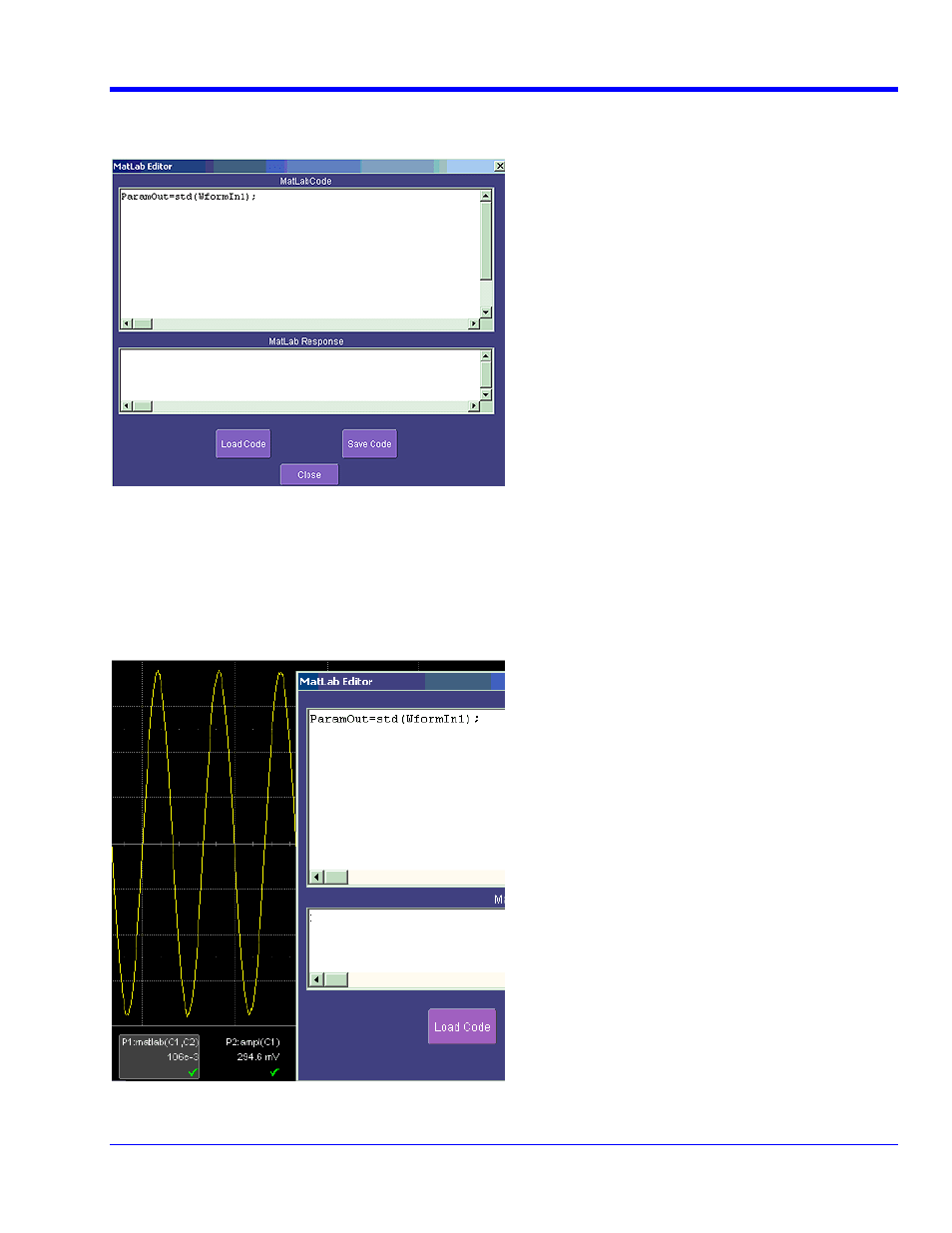

This simple example shows the MATLAB function Standard Deviation acting on input channel 1, and the result
would be shown in the

MATLAB Response pane for an amplitude of 0.15 volt.

g the

Load Code button, and you can save the current program,

ATLAB function that performs

your task. Your program in the instrument could then be a one-line call of your MATLAB function.

MATLAB Example Parameter Panel

You can load an existing MATLAB program, usin
using the

Save Code button.

If you are familiar with MATLAB you might prefer to launch MATLAB and create a M
