Measurement Mode

meter measurements on it.

acquisition:

This search and scan mode lets you apply filters to your acquisitions to highlight only the features of interest.
Post-acquisition, you can apply other filters to the acquisition, or make different para

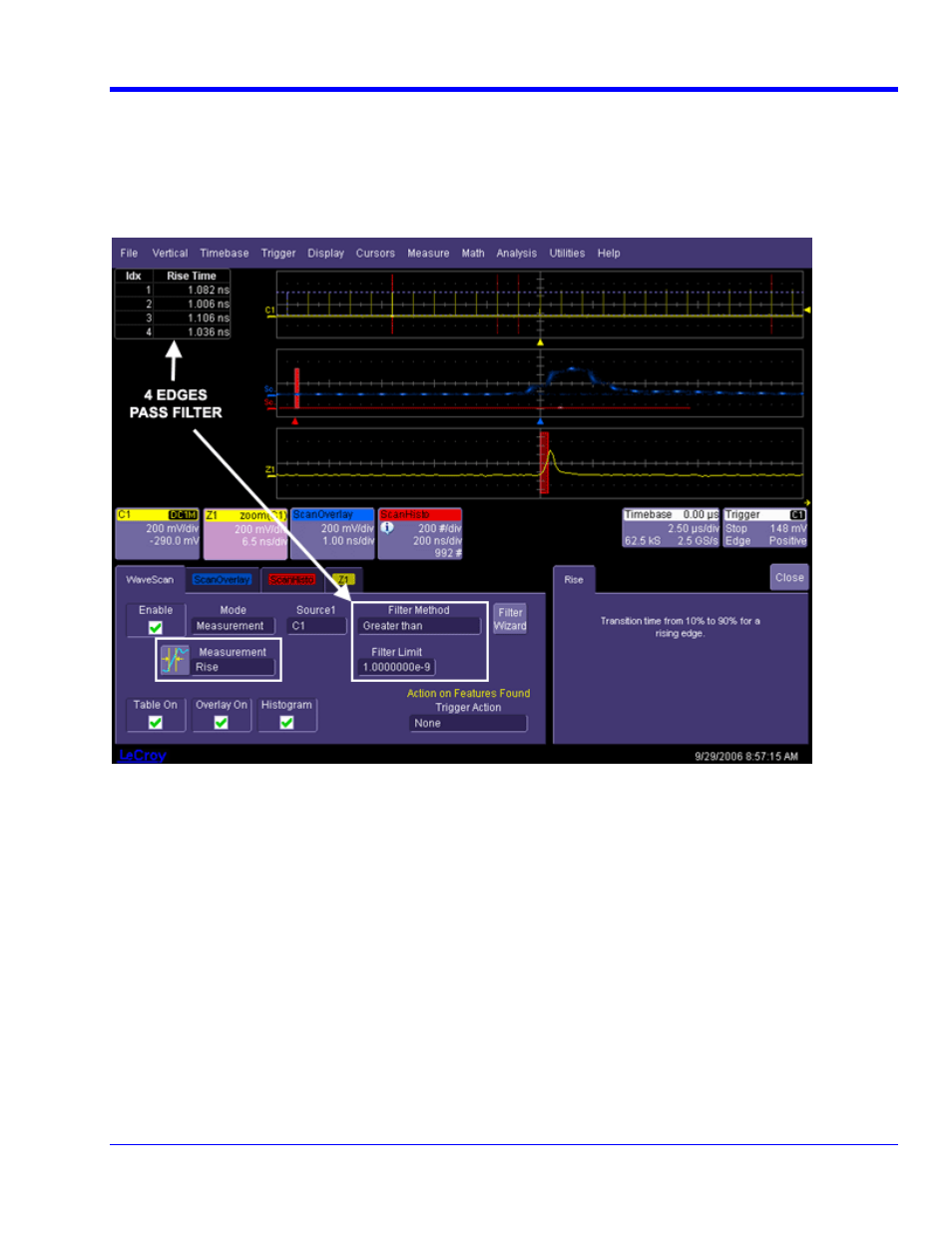

For example, in this acquisition a

Rise time (10-90%) parameter measurement is applied to fast edges during

acquisition. We are interested only in edges with a rise time slower than 1 ns. Therefore, the

Greater Than filter

method is selected, with a value of 1 ns; four edges pass during
