Examples
Simple Excel Example 1

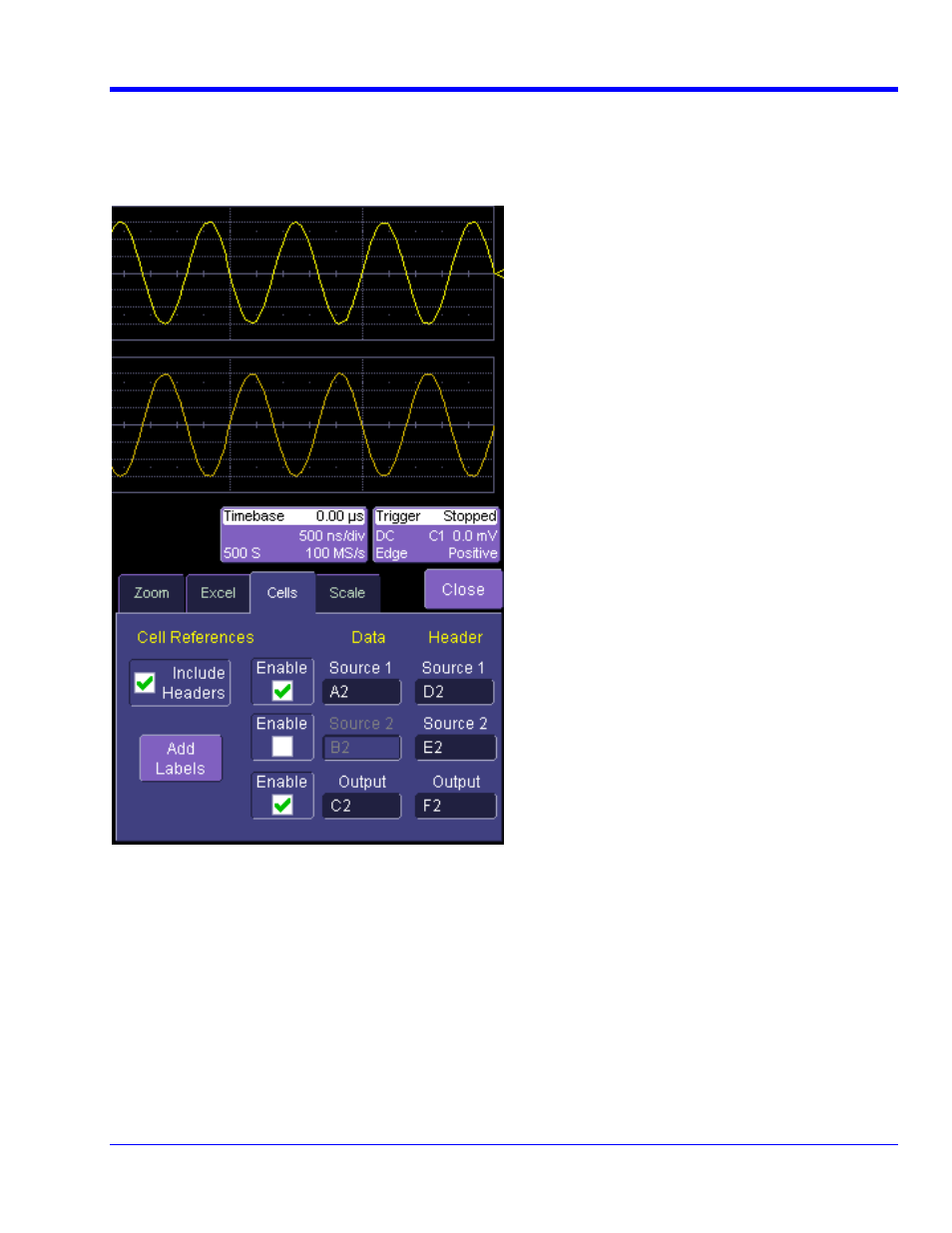

In this example we use Excel to invert or negate a waveform. The first figure shows a part of the screen. The
upper trace is the original signal. The lower is the result from Excel.
• The dialog is the one that controls the location of the data in the Excel worksheet.
• The input data are in columns A and B (though, only the first is used) and the output is in column C. All have
been set to start at row 2, allowing space for a title in row 1.
• Columns D, E and F contain the headers for the three waveforms. These are the set of numbers that provide
the description of the oscilloscope settings, such as vertical scale and offset, and number of samples.
