70
4. Description of Operating Functions

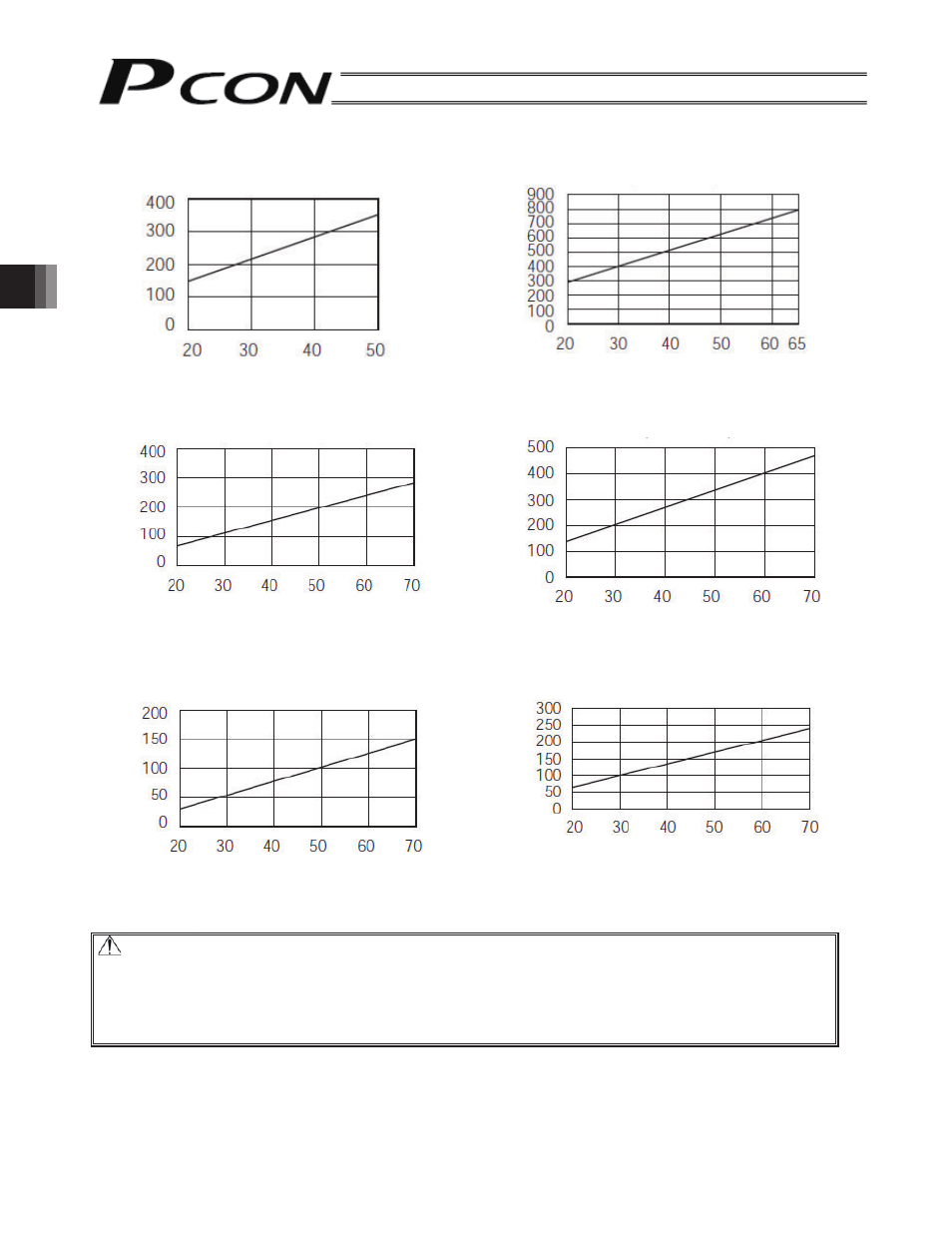

(3) RA4C type (4) RA6C type
Low-speed type
(Lead: 2.5 mm)
Current-limiting value (ratio, %)
Low-speed type
(Lead: 4 mm)
Current-limiting value (ratio, %)
Medium-speed type
(Lead: 5 mm)
Current-limiting value (ratio, %)
Medium-speed type
(Lead: 8 mm)
Current-limiting value (ratio, %)
High-speed type
(Lead: 10 mm)
Current-limiting value (ratio, %)
High-speed type
(Lead: 16 mm)
Current-limiting value (ratio, %)
Caution: Precision of each push force at standstill is not guaranteed, and the above are reference
values only.
Exercise caution that if the push force is too small, the actuator may malfunction during
push-motion operation due to slide resistance, etc.
Find the maximum current-limiting value of your controller from the applicable graph above.
The minimum value is 20%
Push force
(N)
Push force
(N)
Push force
(N)
Push force
(N)
Push force
(N)
Push force
(N)
