5 system configuration – IAI America PCON-SE User Manual
Page 26
14
1. Overview

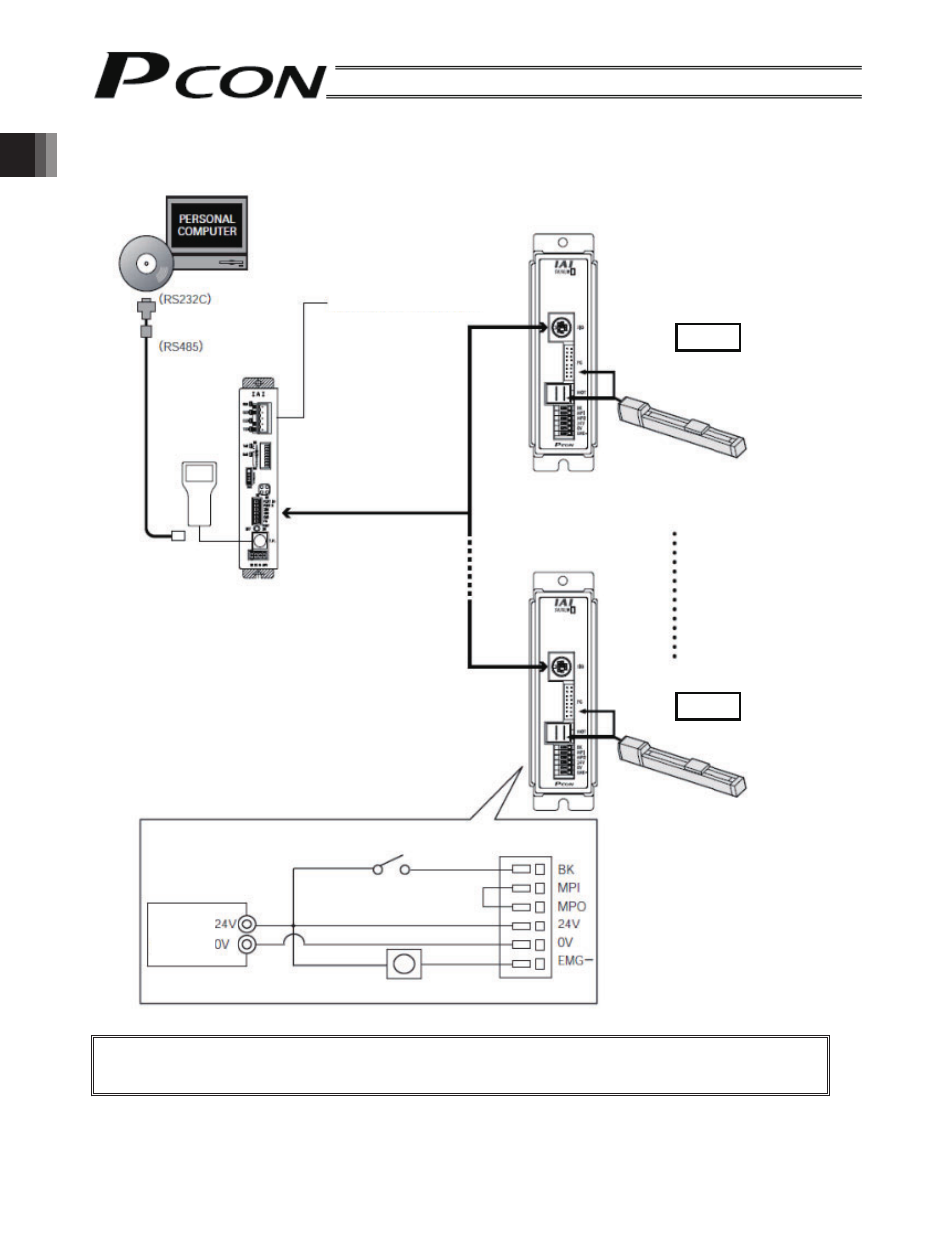

1.5 System
Configuration
(1) When the gateway unit is used (supporting field network)
Caution: (1)
If the actuator is not equipped with a brake, it is not required to connect the BK
terminal.
(2)
Make the 0V of the gateway unit power supply and PCON-SE power supply in common.
PC software
RS232C-compatible
USB-compatible
Optional
Gateway
unit
Teaching
pendant
SIO communication
RCP2 actuator
Cable length: 5m
Optional
Unit 1
Unit 16
Input power
supply
24 VDC
External EMG switch
Brake release switch to forcibly
release the brake
Power terminal
block
RCP2 actuator
Cable length: 5m
Optional
PCON-SE controller
DeviceNet/CC-Link/Profibus
PCON-SE controller
