4. Description of Operating Functions

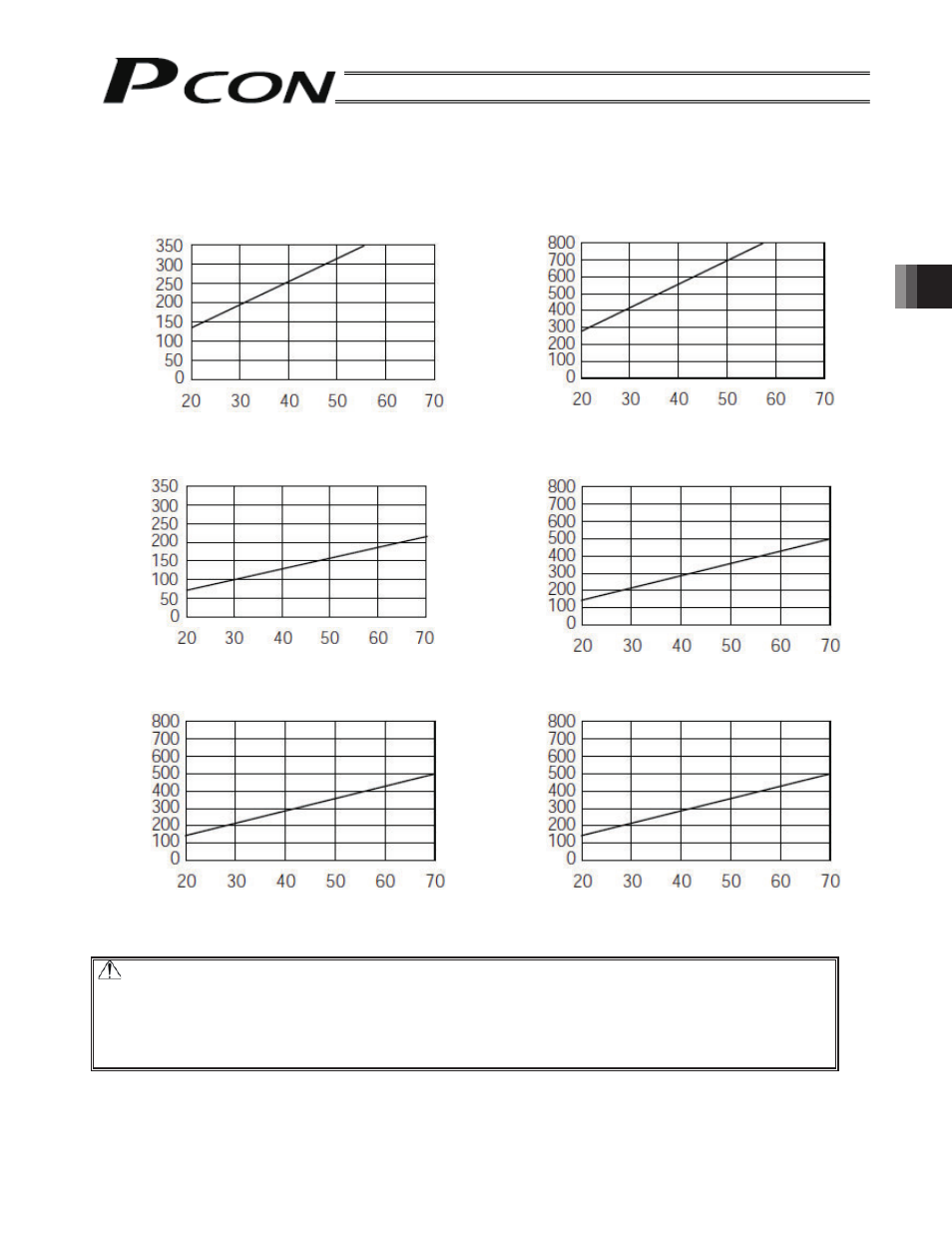

The graphs below show the relationships of current-limiting value [%] and push force [N] of respective actuators.
Note: For the relationships applicable to RCP3 controllers, refer to the operation manual for RCP3.
• Slider Type
(1) SA5C/SA6C/SS7C types (2) SA7C Type
Low-speed type
(Lead: 3 mm)
Low-speed type
(Lead: 4 mm)
Medium-speed type
(Lead: 6 mm)
Medium-speed type
(Lead: 8 mm)
High-speed type
(Lead: 12 mm)
High-speed type
(Lead: 16 mm)
Caution: Precision of each push force at standstill is not guaranteed, and the above are reference
values only.
Exercise caution that if the push force is too small, the actuator may malfunction during
push-motion operation due to slide resistance, etc.
Find the maximum current-limiting value of your controller from the applicable graph above.
The minimum value is 20%
Push force
(N)
Push force
(N)
Current-limiting value (ratio, %)
Push force
(N)
Push force
(N)
Push force
(N)
Push force
(N)
Current-limiting value (ratio, %)
Current-limiting value (ratio, %)
Current-limiting value (ratio, %) Current-limiting value (ratio, %)
Current-limiting value (ratio, %)
