15
1. Overview

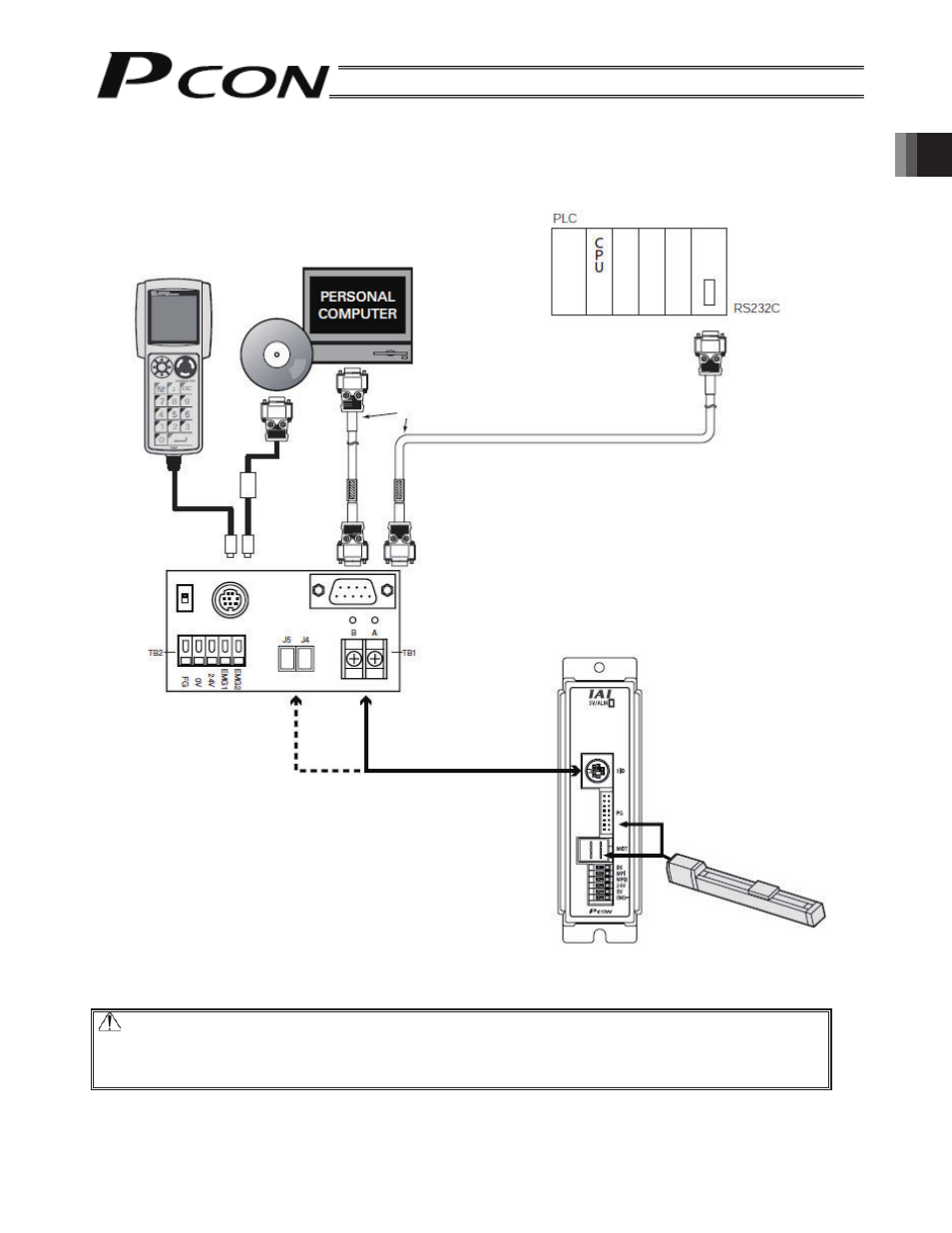

(2) When the SIO converter is used (RS232C serial communication)
Connect the teaching pendant, PC or PLC using the SIO converter (RS232C/RS485 conversion) as
shown below.
Caution: Do not connect an equipment to the mini DIN connector and D-sub connector at the same
time.
If an equipment is connected to both connectors at the same time, a communication error
(message level) will generate.
(Male)
Supplied
cable
(RCM-101-M
SIO converter
Vertical
Horizontal
RCP2 actuator
Cable length: 5 m
Optional
PCON-SE controller
(Female)
RS232C cross cable (commercial product)
(Female)
e-con
connector
*
SIO communication
* Connect the SIO converter to the
controller
̓s communication line at either
TB1 or J4 (J5) on the SIO converter.
Teaching pendant
Optional
Cable length: 5 m
PC software
RS232C-compatible
USB-compatible
Optional
(Female)
