mxCONTROL Type 8620
Page 160

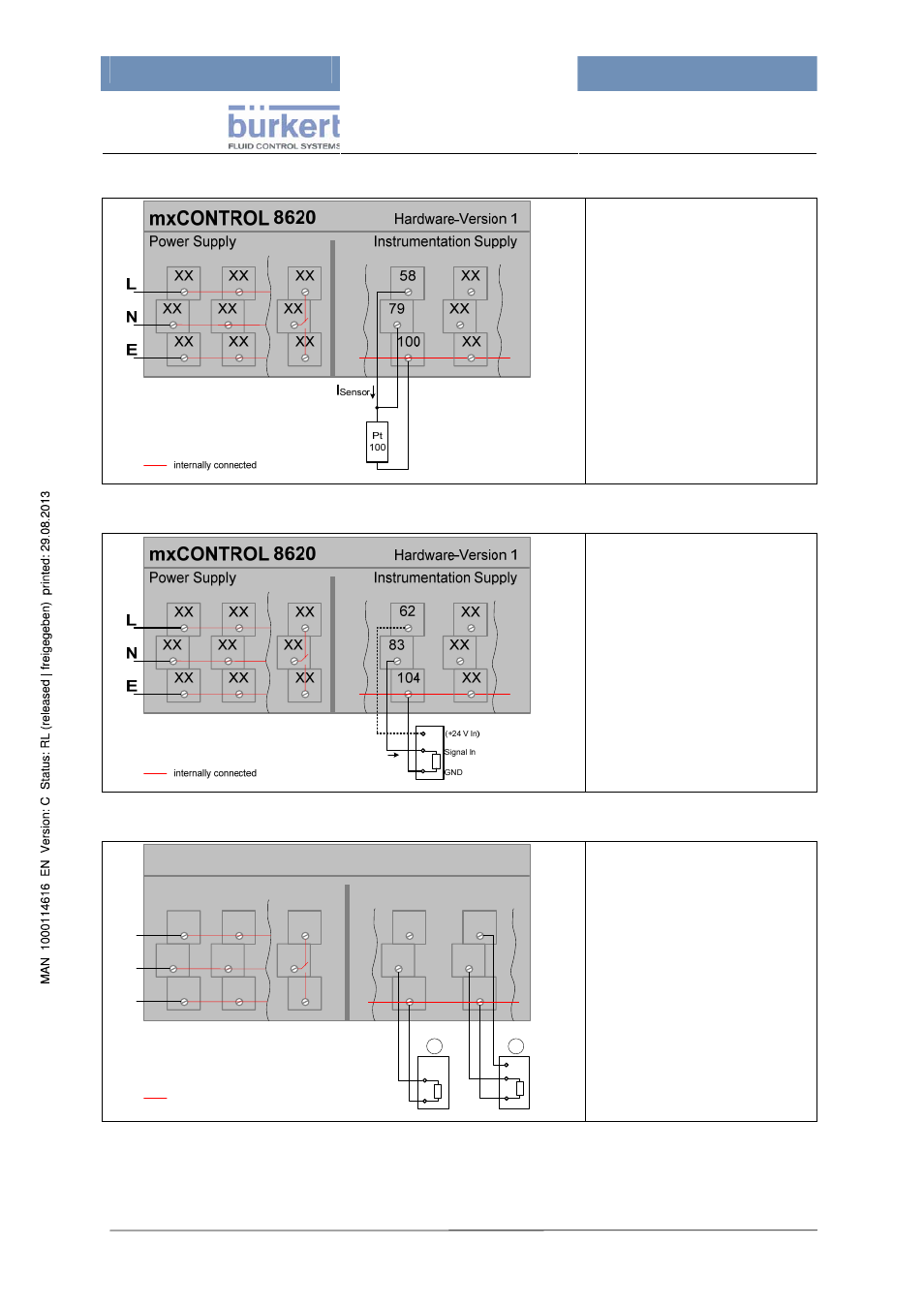

Pt100 Inputs
Example:
Connection of a Pt100-sensor
to AnalogIn 1
Analog Outputs 4…20 mA
Example:
Connection of a device with
analog output 4…20 mA
to 4…20mA-Ausgang 1
(if necessary – connection of
the device also to the 24 V DC-
supply – Pin 62)
Transistor Outputs
XX
XX
XX
XX
XX
XX
mxCONTROL 8620
Power Supply Instrumentation Supply
L
N
E
XX
XX
XX
Hardware-Version 1
67
88
109
66
87
108
1 2
+24 V In
Pulse In
GND internally connected
Examples:
(1):
Connection of a proportional
valve etc.
to Transistor output 1
(2):
Connection of a device with
Pulse- (PWM-) input
to Transistor output 2
