Output Override

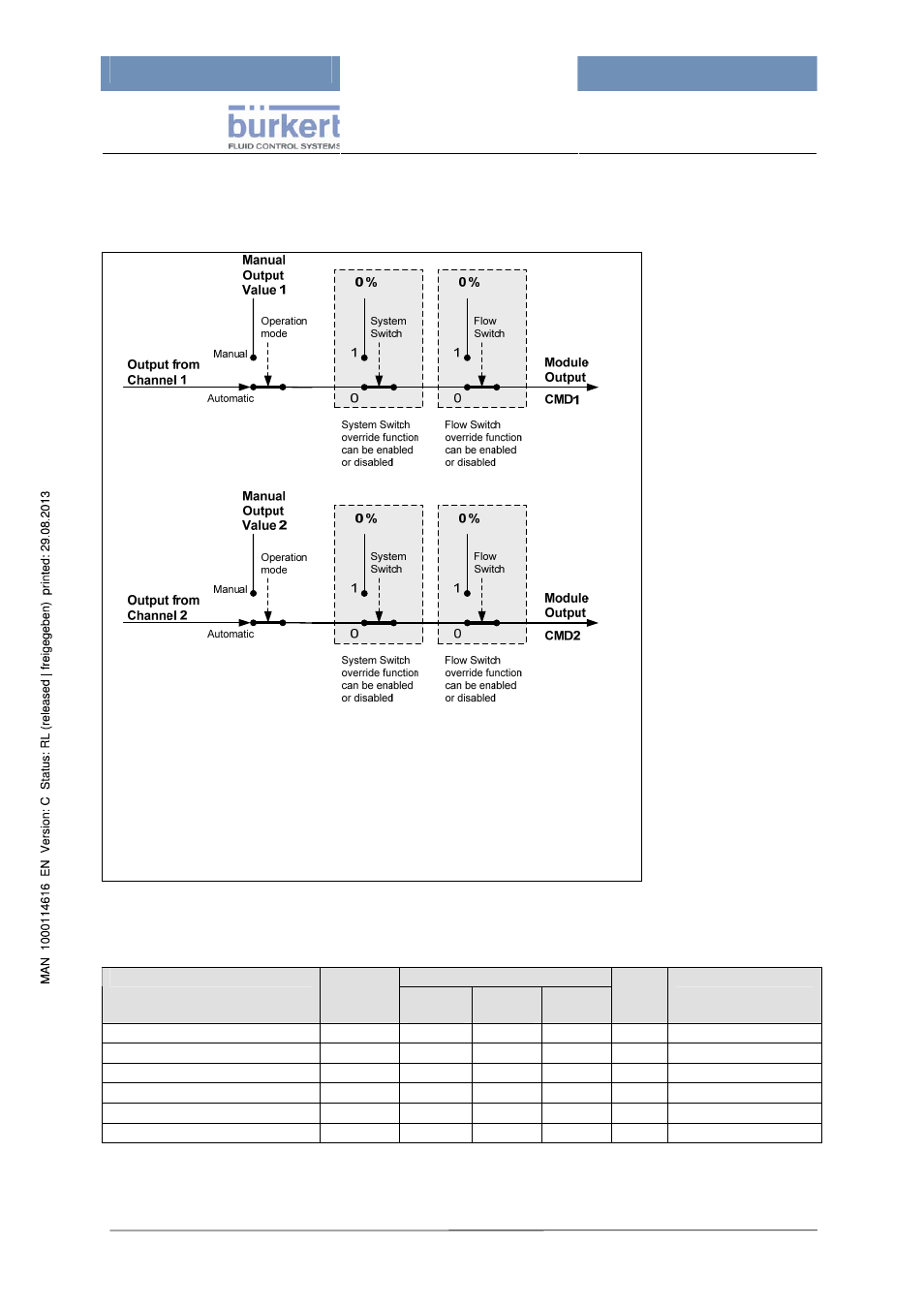

The output of this module is influenced at certain states (see the following figure).
Figure 70:
Output override
(BIOCIDE_DOSING)
Processdata and Data Logging
Display-Presentation Displayed data Abbre-
viation
(menu)
Full
Screen
Trend
chart
Line
Data-
Log.
Notes
State Channel 1 x x
State Channel 2 x x If ChMode = Dual
Next dosing event Channel 1 x
Next dosing event Channel 2 x If ChMode = Dual
Module output channel 1 CMD 1 x x
Module output channel 2 CMD 2 x x If ChMode = Dual
