mxCONTROL Type 8620
Page 137
14.10 Monitoring Process Values (MONITOR_PV)
This module is designed for external monitoring of up to two process values, e.g. via the optional
4…20 mA output
. But also the relay outputs or the transistor outputs can be connected.
It is possible to use an input signal as a source for another (controller) module and loop the same
input signal through for external monitoring.
This module can also be used for logging process values only without any output connected.

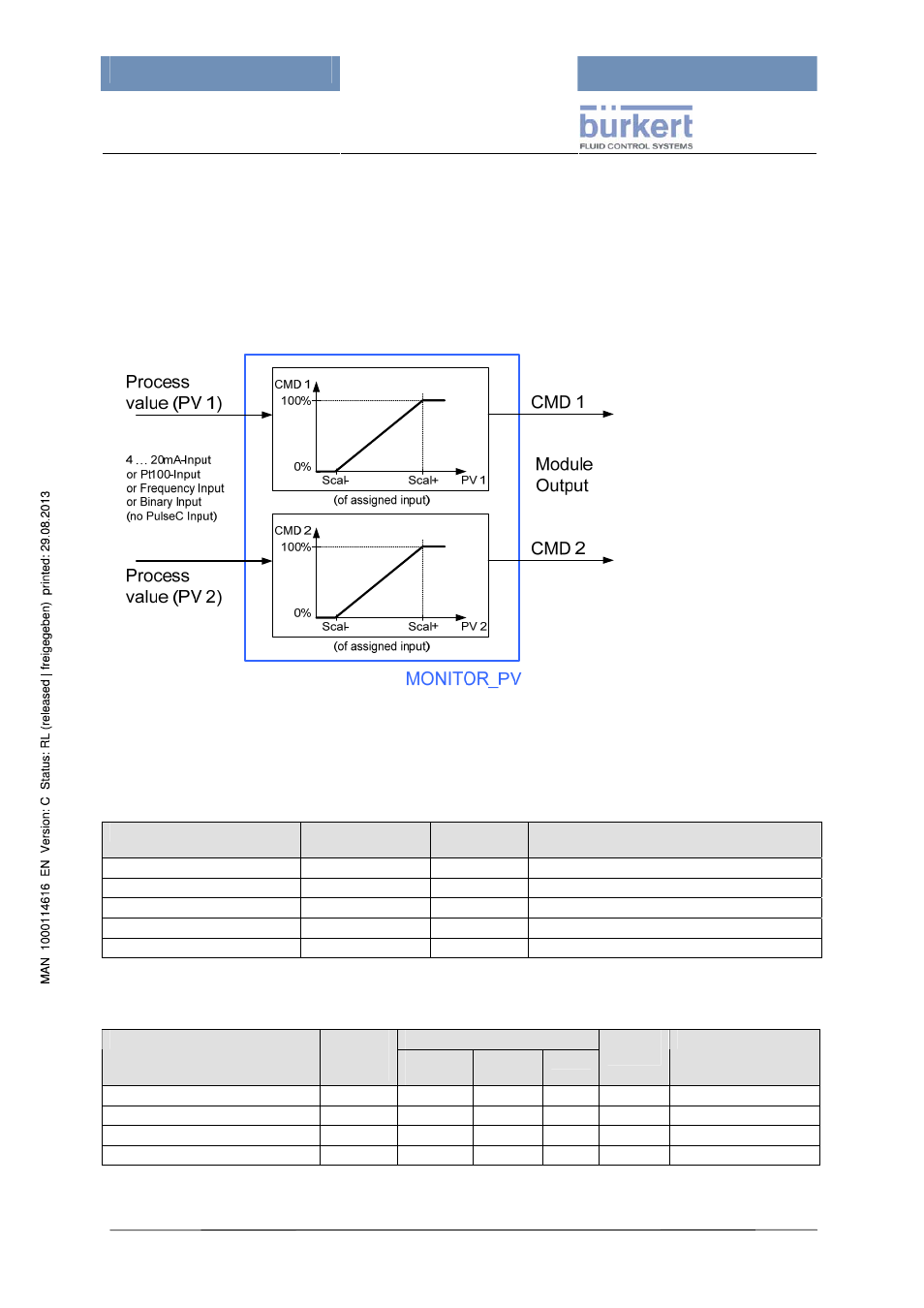

Figure 72:
MONITOR_PV
Each controller output signal is calculated depending on the configured input type.
If the input signal has a continuous input range (digital frequency input, analog inputs), the input range
will be represented linearly on the controller output. Please refer to the following table.
Input type Input range Controller
output Controller output connected with
4...20 mA output
Digital binary input 0, 1 0 %, 100 % 4 mA, 20 mA
Digital pulse counter input -- 0 % --
Digital frequency input Scal- … Scal+ 0 … 100 % 4 … 20 mA
Analog 4…20 mA input Scal- … Scal+ 0 … 100 % 4 … 20 mA
Analog Pt100 Input Scal- … Scal+ 0 … 100 % 4 … 20 mA
Processdata and Data Logging
Display-Presentation Displayed data Abbre-
viation
(menu)
Full
Screen
Trend
chart
Line
Data-
Log.
Notes
Process value 1 PV1 x x x x
Process value 2 PV2 x x x x if ChMode = Dual
Module output 1 CMD1 x x x
Module output 2 CMD2 x x x if ChMode = Dual
