mxCONTROL Type 8620
Page 104
Pre-bleeding and "Biocide Dosing" Module
Compare the section "Pre-bleeding and "Biocide Dosing" Module" in chapter 14.3.1.
On/Off-Controller
Compare the section "On/Off-Controller" in chapter 14.3.1.
Output Override

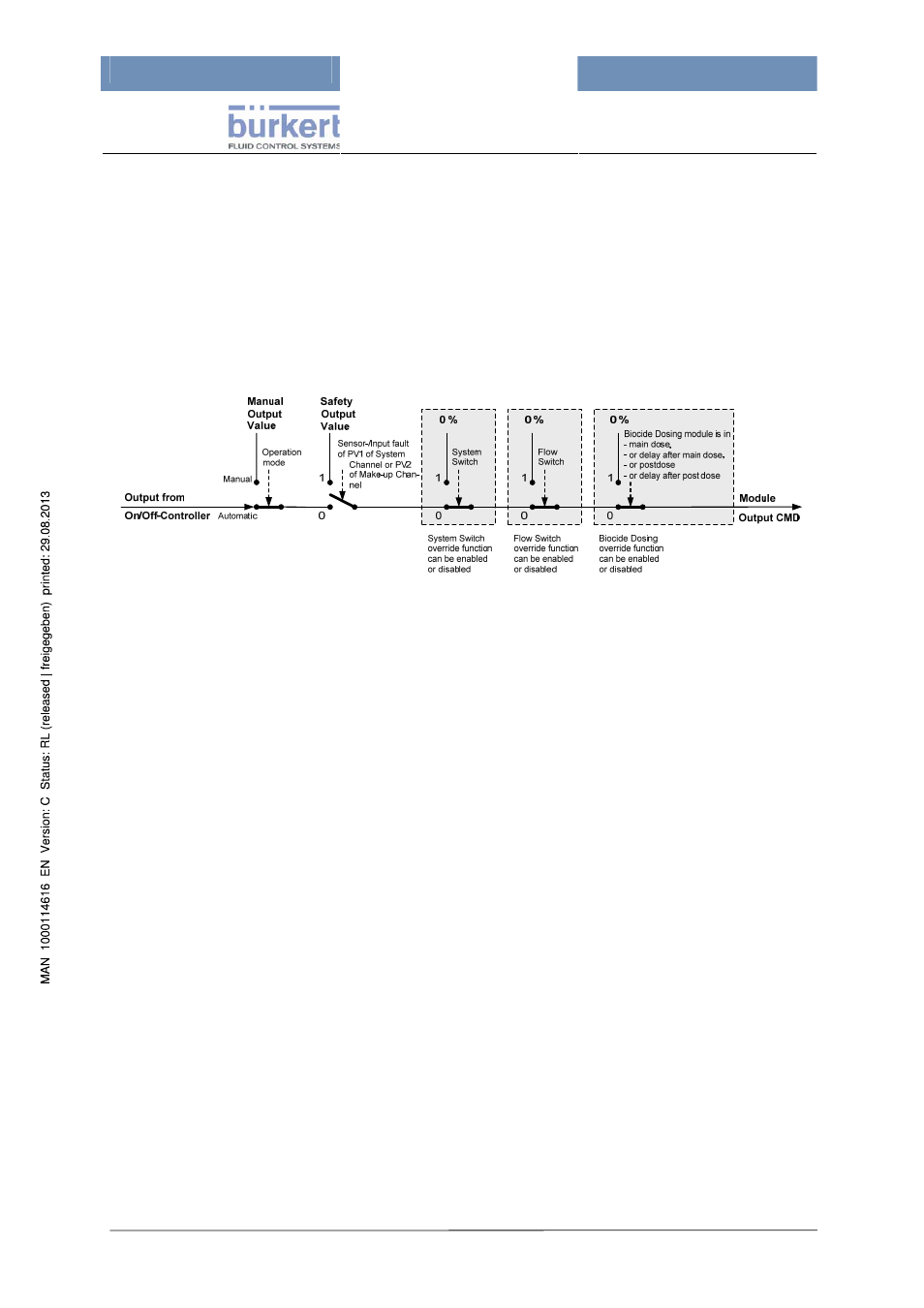

The output of this module is influenced at certain states (see figure).
Figure 44: Output override (COND_CONTROL_RATIO)
"Biocide dosing" override
Refer to the description on "Biocide Dosing" override in the section "Output Override” of chapter 14.3.1
Maximum Output Timer (MOT)
Compare the description of the Maximum Output TImer in section "Maximum Output Timer (MOT)" in
chapter 14.3.1.
Total Dissolved Solids (TDS)-Display
The TDS display is only available for the conductivity process value of the System Channel.
Please refer to the description on "Total Dissolved Solids (TDS)-Display" in chapter 14.3.1
