ESG Family Signal Generators

Service Software

Running the Service Support Software

Calibration Guide

3-21

Identifying the DUT

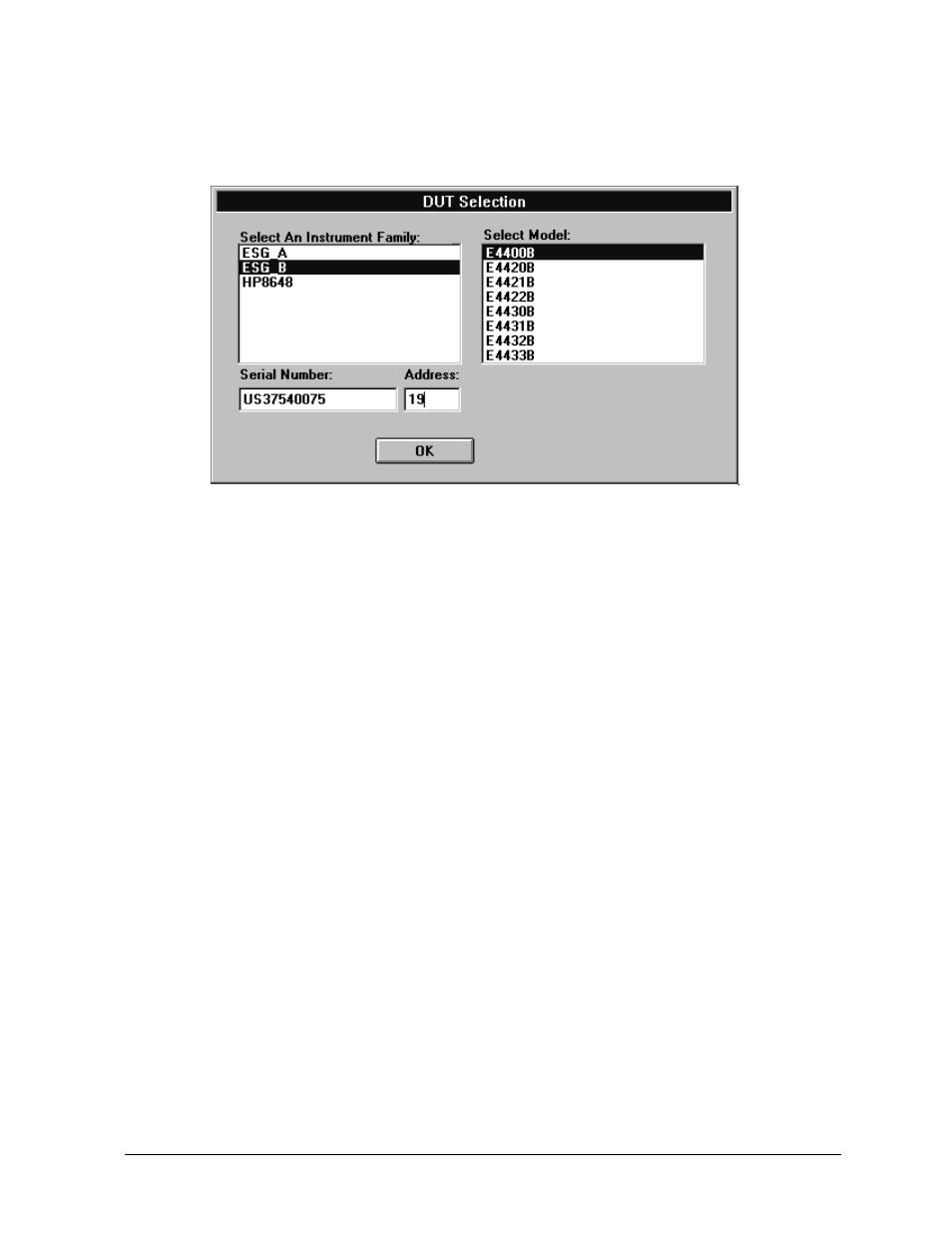

When the DUT Selection dialog box is displayed,

1. Make sure that ESG_B is selected in the Select An Instrument Family list.

2. In the Select Model list, select the signal generator model of the DUT to be adjusted or

tested.

3. In the Serial Number box, enter the complete serial number of the DUT.

4. In the Address box, enter the two-digit GPIB address of the DUT. (To display the

address on the signal generator, press

Utility

GPIB/RS-232

. The

GPIB Address

softkey

shows the current address.)

5. Select the OK button.
