ESG Family Signal Generators Service Software
ESG Family Support Software Administration
Calibration Guide 3-11

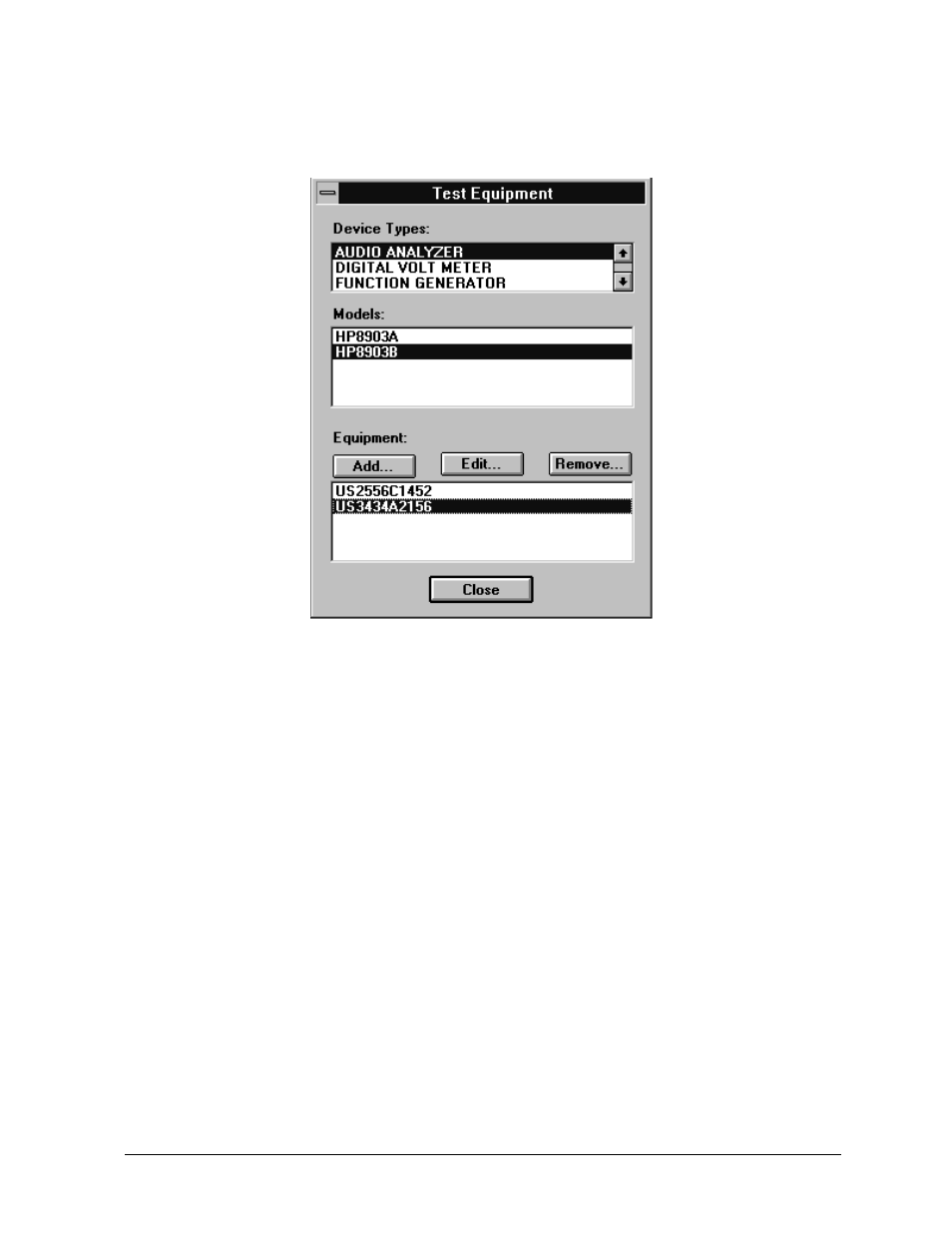

Figure 3-5 Removing and Editing Test Equipment Using the Test Equipment
Window
2. Select the model of the test equipment to be removed from the Models field.
3. Select the serial number of the test equipment to be removed from the Equipment field.
4. Click Remove.
5. Click Close.
Editing Test Equipment
Editing test equipment parameters is accomplished using the Test Equipment dialog box.
Refer to
Figure 3-5 .
1. Select the Device Type of the test equipment to be edited.
2. Select the model of the test equipment to be edited from the Models field.
3. Select the serial number of the test equipment to be edited.
4. Click Edit. The Edit Test Equipment window will appear. Change the field parameters
as necessary.
5. Click OK to save the changes and close the window.
6. Click Close in the Test Equipment window.
