Technical Data Sheet

A High Performance – Handheld

Base Station Analyzer

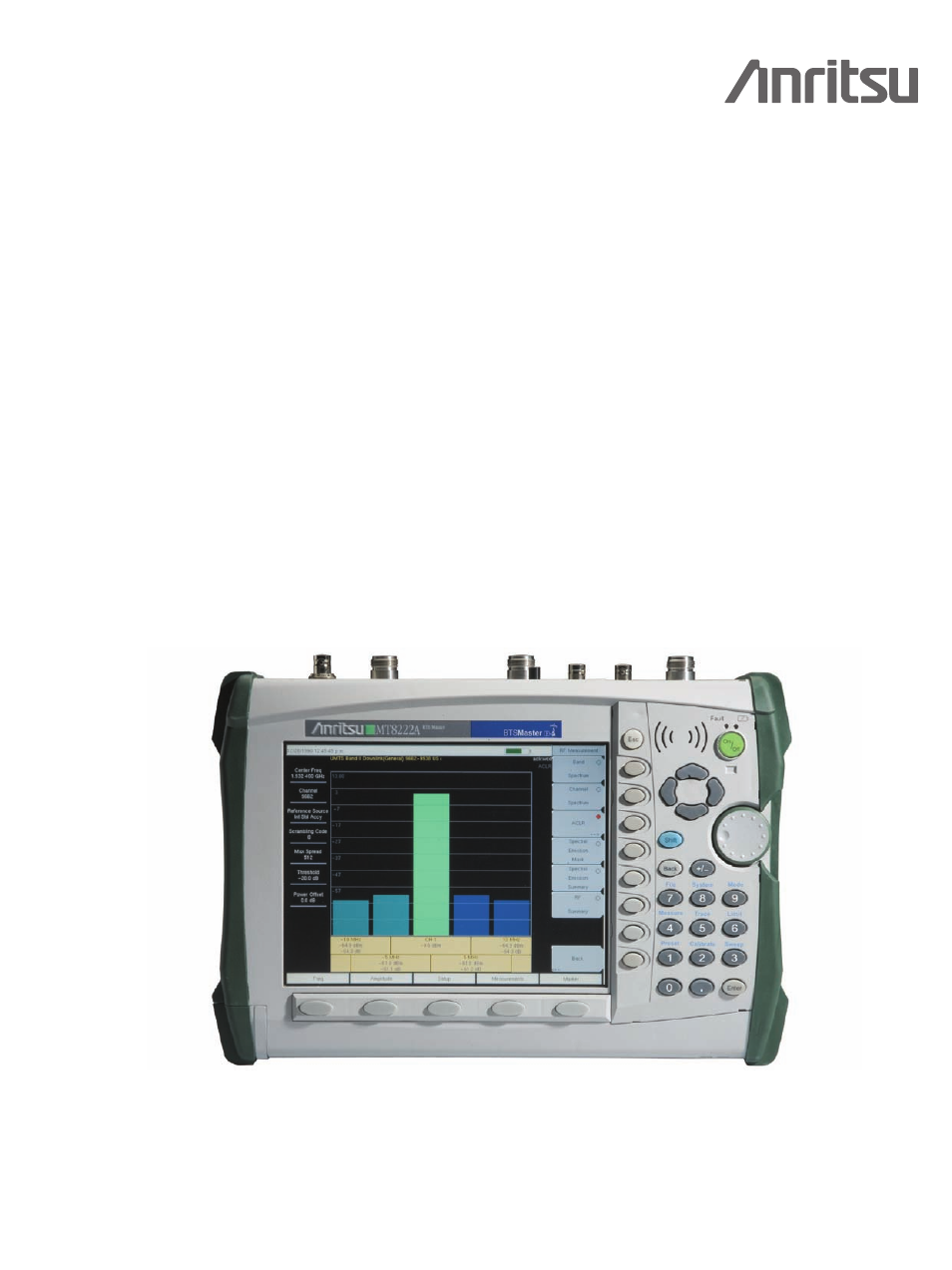

MT8222A

BTS Master

The Anritsu MT8222A is the most advanced ultra-portable base station analyzer on the market,

featuring unparalleled performance at a modest price.

Introduction

High performance handheld base station analyzer with a complete set of measurement tools, spectrum analyzer, cable and
antenna analysis, power meter, Bit Error Rate Tester for communication backhaul, supports multiple modulation formats
GSM/GPRS/EDGE, W-CDMA/HSDPA, CDMA/EVDO, WiMAX 802.16d/802.16e, TD-SCDMA, LTE and GPS.

• Spectrum Analyzer 100 kHz to 7.1 GHz

• 2 port Cable & Antenna Analyzer

10 MHz to 4 or 6 GHz

• High Accuracy Power Meter ± 0.16 dB

• 4 kg (9.0 lbs)

• Bit Error Rate Tester E1, T1 & T3

• Interference Analyzer

• Channel scanner

• GPS receiver option

• 2 and 2.5G modulation options

GSM/GPRS/EDGE, IS-95

• PIM Analyzer

• 3G Modulation options W-CDMA/

HSDPA, 1xrtt/EVDO and TD-SCDMA

• 3.5G modulation options LTE,

802.16d and 802.16e

• 2.5 – 3 hour battery life

High Performance Highlights
