273
ATmega169V/L
2514A–AVR–08/02

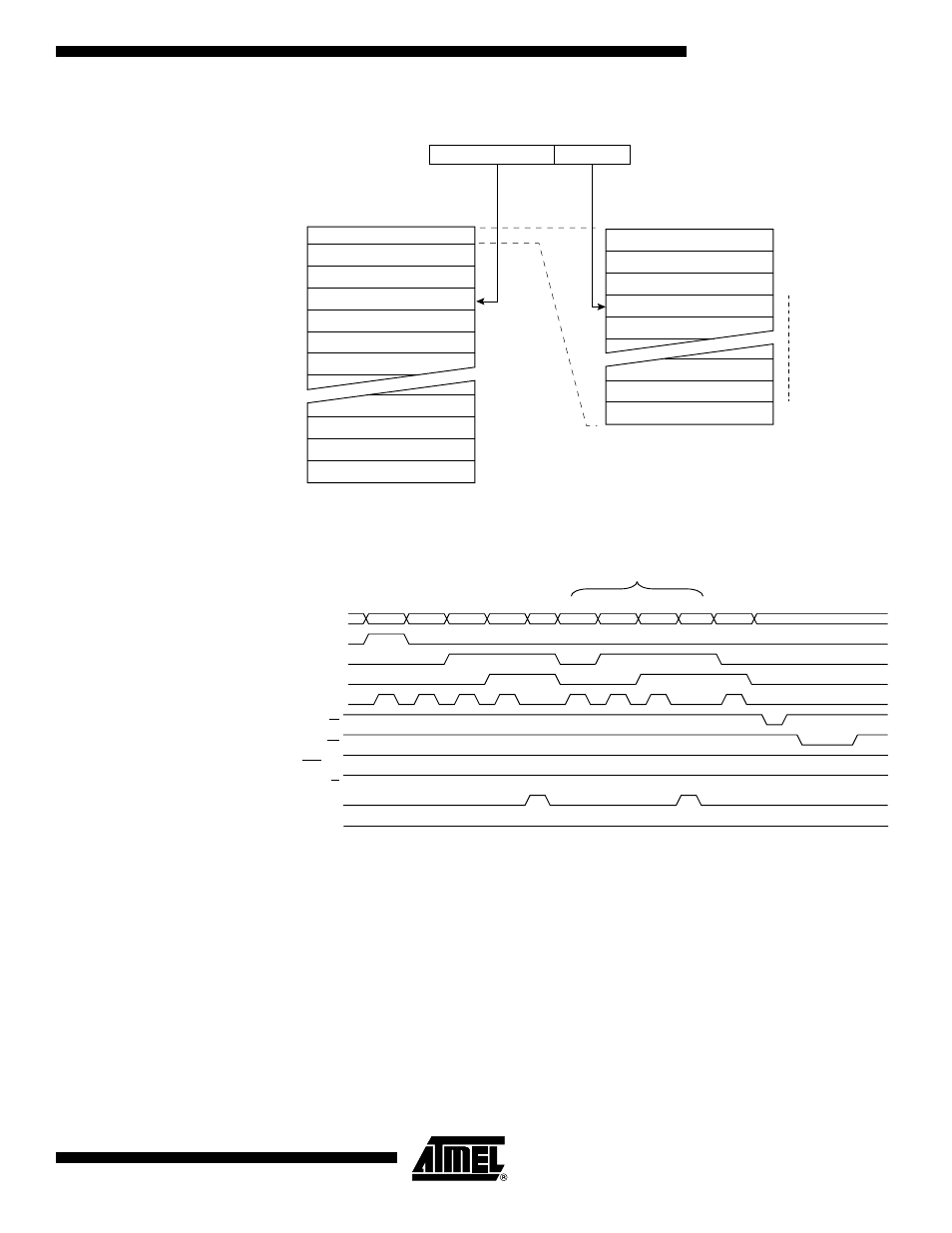

Figure 119. Addressing the Flash Which is Organized in Pages (1)
Note: 1. PCPAGE and PCWORD are listed in Table 125 on page 270.
Figure 120. Programming the Flash Waveforms (1)
Note: 1. “XX” is don’t care. The letters refer to the programming description above.
Programming the EEPROM The EEPROM is organized in pages, see Table 126 on page 270. When programming
the EEPROM, the program data is latched into a page buffer. This allows one page of
data to be programmed simultaneously. The programming algorithm for the EEPROM
data memory is as follows (refer to “Programming the Flash” on page 271 for details on
Command, Address and Data loading):
1. A: Load Command “0001 0001”.
2. G: Load Address High Byte (0x00 - 0xFF).
3. B: Load Address Low Byte (0x00 - 0xFF).
4. C: Load Data (0x00 - 0xFF).
5. E: Latch data (give PAGEL a positive pulse).
PROGRAM MEMORY
WORD ADDRESS
WITHIN A PAGE PAGE ADDRESS
WITHIN THE FLASH
INSTRUCTION WORD
PAGE
PCWORD[PAGEMSB:0]:
00
01
02
PAGEEND
PAGE
PCWORD PCPAGE
PCMSB PAGEMSB
PROGRAM
COUNTER
RDY/BSY
WR
OE
RESET +12V
PAGEL
BS2
0x10 ADDR. LOW ADDR. HIGH DATA
DATA LOW DATA HIGH ADDR. LOW DATA LOW DATA HIGH
XA1
XA0
BS1
XTAL1
XX XX XX
A B C D E B C D E G H
F
