196

ATmega169V/L

2514A–AVR–08/02

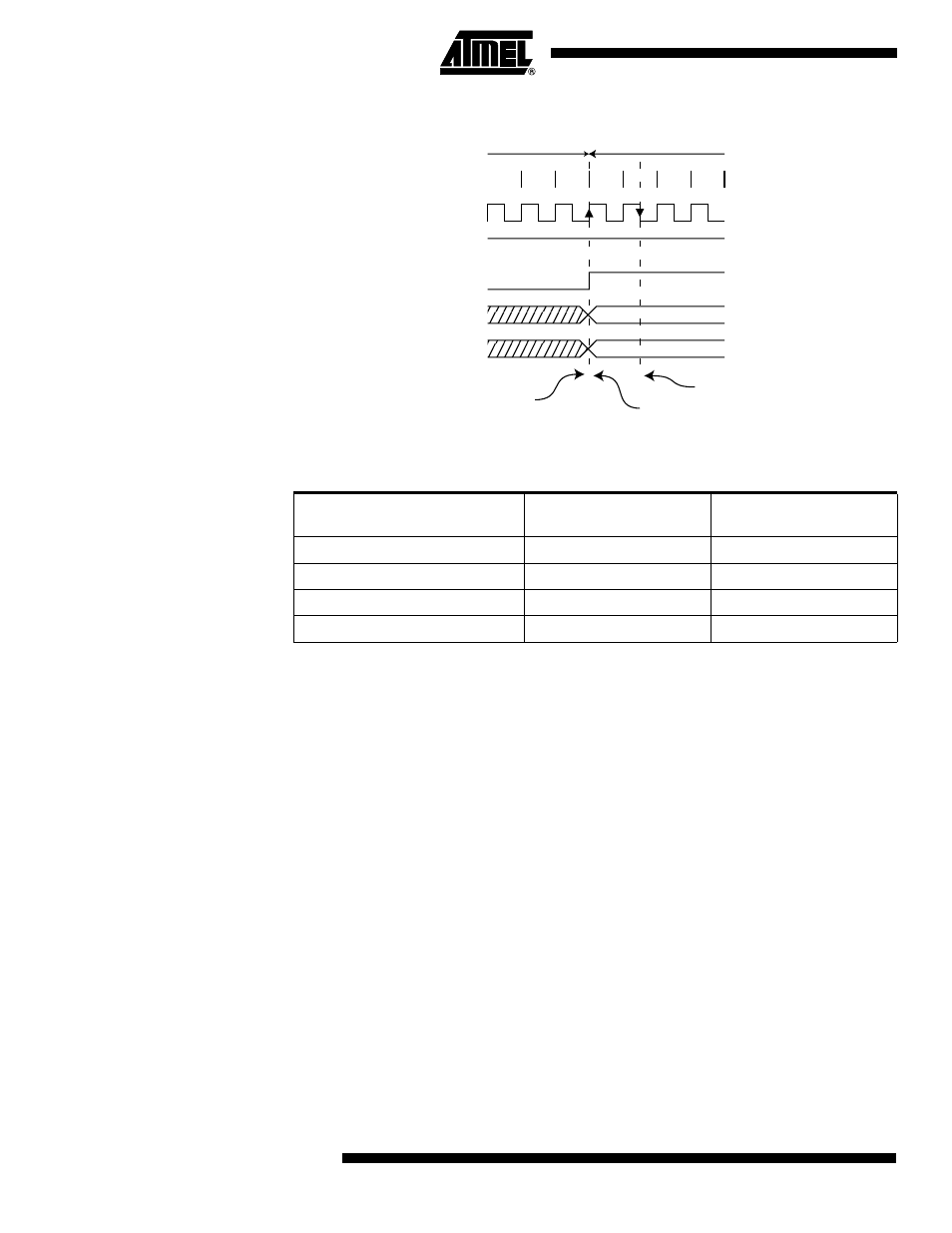

Figure 88. ADC Timing Diagram, Free Running Conversion

Differential Channels

When using differential channels, certain aspects of the conversion need to be taken
into consideration.

Differential conversions are synchronized to the internal clock CK

ADC2

equal to half the

ADC clock. This synchronization is done automatically by the ADC interface in such a
way that the sample-and-hold occurs at a specific phase of CK

ADC2

. A conversion initi-

ated by the user (i.e., all single conversions, and the first free running conversion) when
CK

ADC2

is low will take the same amount of time as a single ended conversion (13 ADC

clock cycles from the next prescaled clock cycle). A conversion initiated by the user
when CK

ADC2

is high will take 14 ADC clock cycles due to the synchronization mecha-

nism. In Free Running mode, a new conversion is initiated immediately after the
previous conversion completes, and since CK

ADC2

is high at this time, all automatically

started (i.e., all but the first) Free Running conversions will take 14 ADC clock cycles.

If differential channels are used and conversions are started by Auto Triggering, the
ADC must be switched off between conversions. When Auto Triggering is used, the
ADC prescaler is reset before the conversion is started. Since the stage is dependent of
a stable ADC clock prior to the conversion, this conversion will not be valid. By disabling
and then re-enabling the ADC between each conversion (writing ADEN in ADCSRA to
“0” then to “1”), only extended conversions are performed. The result from the extended
conversions will be valid. See “Prescaling and Conversion Timing” on page 194 for tim-
ing details.

Table 87. ADC Conversion Time

Condition

Sample & Hold (Cycles
from Start of Conversion)

Conversion Time

(Cycles)

First conversion

14.5

Normal conversions, single ended

1.5

Auto Triggered conversions

13.5

Normal conversions, differential

1.5/2.5

13/14

Sign and MSB of Result

LSB of Result

ADC Clock

ADSC

ADIF

ADCH

ADCL

Cycle Number

One Conversion

Next Conversion

Conversion

Complete

Sample & Hold

MUX and REFS
Update
