Installation and Operation Manual Chapter 1 Introduction
IPmux-11 Ver. 2.00 Functional Description 1-7
• Internal timing – in this mode, the Tx clock is derived from an internal
oscillator.
• External timing – in this mode the Tx clock is derived from the external clock
input. The external clock port also outputs the input clock signal to allow
connection to other units, if needed.
In adaptive timing the regenerated clock is subject to network packet delay
variation. That is why the quality of the adaptive clock depends on the quality of the
network.
Network Timing Schemes
The following paragraphs describe typical timing schemes and the correct timing
mode settings for achieving end-to-end synchronization.
External Network Timing
When the edges of the network are synchronized by an external network clock
source, all the IPmux-11 units should be configured to work in loopback timing
mode (see
Figure 1-3 ). This topology enables any-to-any connectivity.

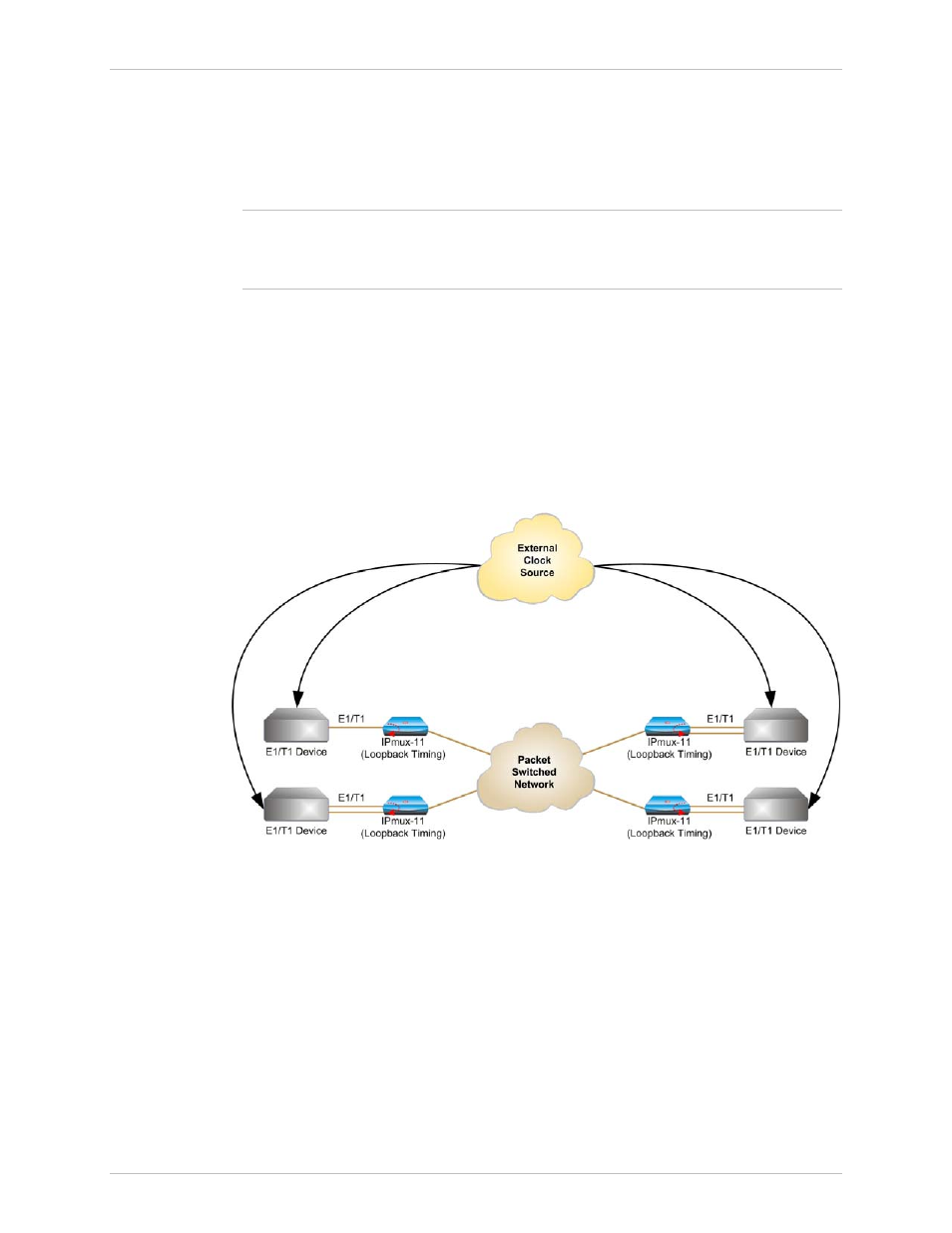

Figure 1-3. IPmux-11 in Loopback Timing Mode
External timing from the network can also be issued to IPmux-11 by external clock
input.
Note
