Front Panel
377-901-02/06
Supplement

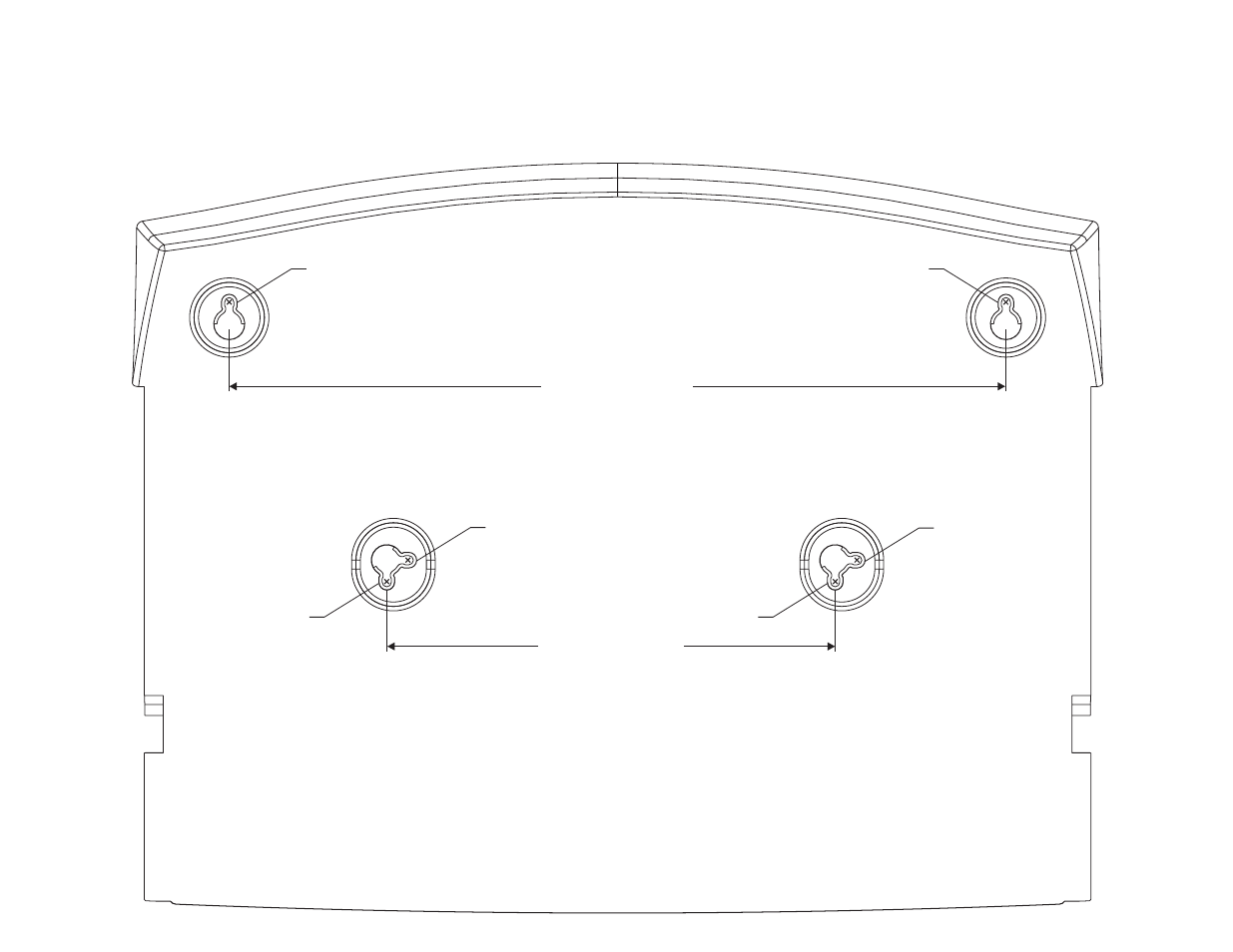

Drilling Template for Wall Installation
This panel is drawn to scale.
To drill the holes for a wall installation, tear this page out
of the manual or print it
and
hold it against the wall.
on letter-size paper (8.5"x11.0")
LEDs facing up - drill at .
1
LEDs facing down - drill at .
LEDs facing left - drill at .
2
3
176 mm (6.92 in)
101.6 mm (4 in)
