Getting Started
AP-700 User Guide
Initialization
29

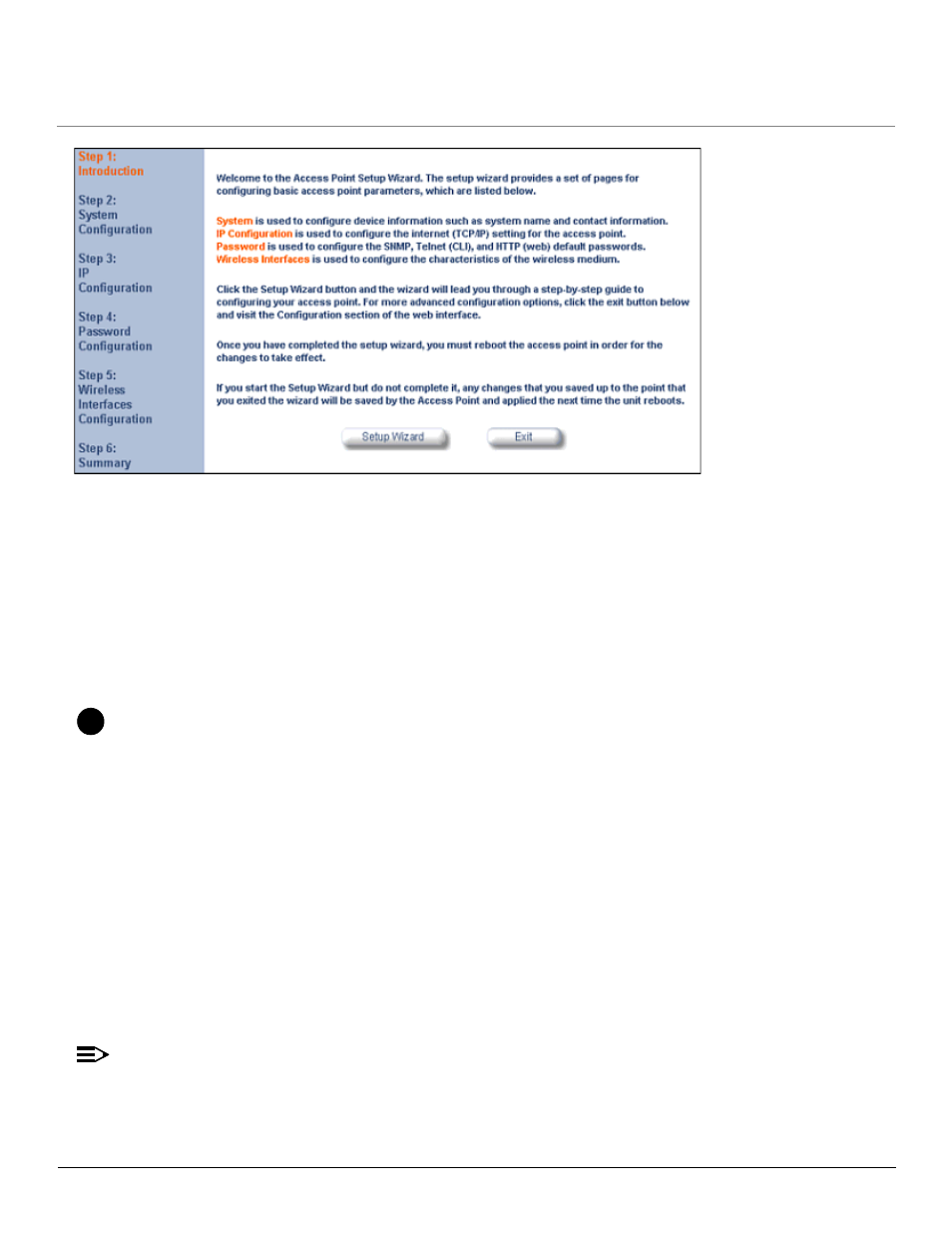

Figure 2-11 Setup Wizard
5. Click Setup Wizard to begin. If you want to configure the AP without using the Setup Wizard, click Exit and see
The Setup Wizard supports the following navigation options:
•
Save & Next Button: Each Setup Wizard screen has a Save & Next button. Click this button to submit any changes you made to the
unit’s parameters and continue to the next page. The instructions below describe how to navigate the Setup Wizard using the Save &
Next buttons.
•
Navigation Panel: The Setup Wizard provides a navigation panel on the left-hand side of the screen. Click the link that corresponds
to the parameters you want to configure to be taken to that particular configuration screen. Note that clicking a link in the navigation
panel will not submit any changes you made to the unit’s configuration on the current page.
•
Exit: The navigation panel also includes an Exit option. Click this link to close the Setup Wizard at any time.
CAUTION
!
If you exit from the Setup Wizard, any changes you submitted (by clicking the Save & Next button) up to that point will be saved to
the unit but will not take effect until it is rebooted.
6. Configure the System Configuration settings and click Save & Next. See
7. Configure the Access Point’s Basic IP address settings, if necessary, and click Save & Next. See
for more
information.
8. Assign the AP new passwords to prevent unauthorized access and click Save & Next. Each management interface has its own
password:
•
SNMP Read Password
•
SNMP Read-Write Password
•
CLI Password
•
HTTP (Web) Password
By default, each of these passwords is set to “public”. See
for more information.
9. Configure the basic wireless interface settings and click Save & Next.
•
The following options are available for the AP-700:
— Primary Network Name (SSID): Enter a Network Name (between 1 and 32 characters long) for the wireless network. You must
configure each wireless client to use this name as well.
NOTE
Do not use quotation marks (single or double) in the Network Name; this will cause the AP to misinterpret the name.
— Additional Network Names (SSIDs): The AP-700 supports up to 16 SSIDs and VLANs. Please refer to the Advanced
Configuration chapter for information on the detailed rules on configuring multiple SSIDs, VLANs, and security profiles.
