Performing Advanced Configuration
AP-700 User Guide
SSID/VLAN/Security
100
3. Enter a unique Network Name (SSID), between 1 and 32 characters. This parameter is mandatory.
NOTE
Do not use quotation marks (single or double) in the Network Name; this will cause the AP to misinterpret the name.
4. Enter a unique VLAN ID. This parameter is mandatory.
–
You must specify a unique VLAN ID for each SSID on the interface. A VLAN ID is a number from -1 to 4094. A value of -1 means that
an entry is “untagged.”
–
You can set the VLAN ID to “-1” or “untagged” if you do not want clients that are using a specific SSID to be members of a VLAN
workgroup. Only one “untagged” VLAN ID is allowed per interface.
–
The VLAN ID must match an ID used by your network; contact your network administrator if you need assistance defining the VLAN
IDs.
5. If editing an entry, enable or disable the VLAN using the Status drop-down menu. If adding an entry, this field will not appear.
6. Specify a QoS profile. Refer to the
Enabling QoS and Adding QoS policies
section for more information.
7. Click OK to return to Wireless Security Configuration Screen. See
Figure 4-43
.

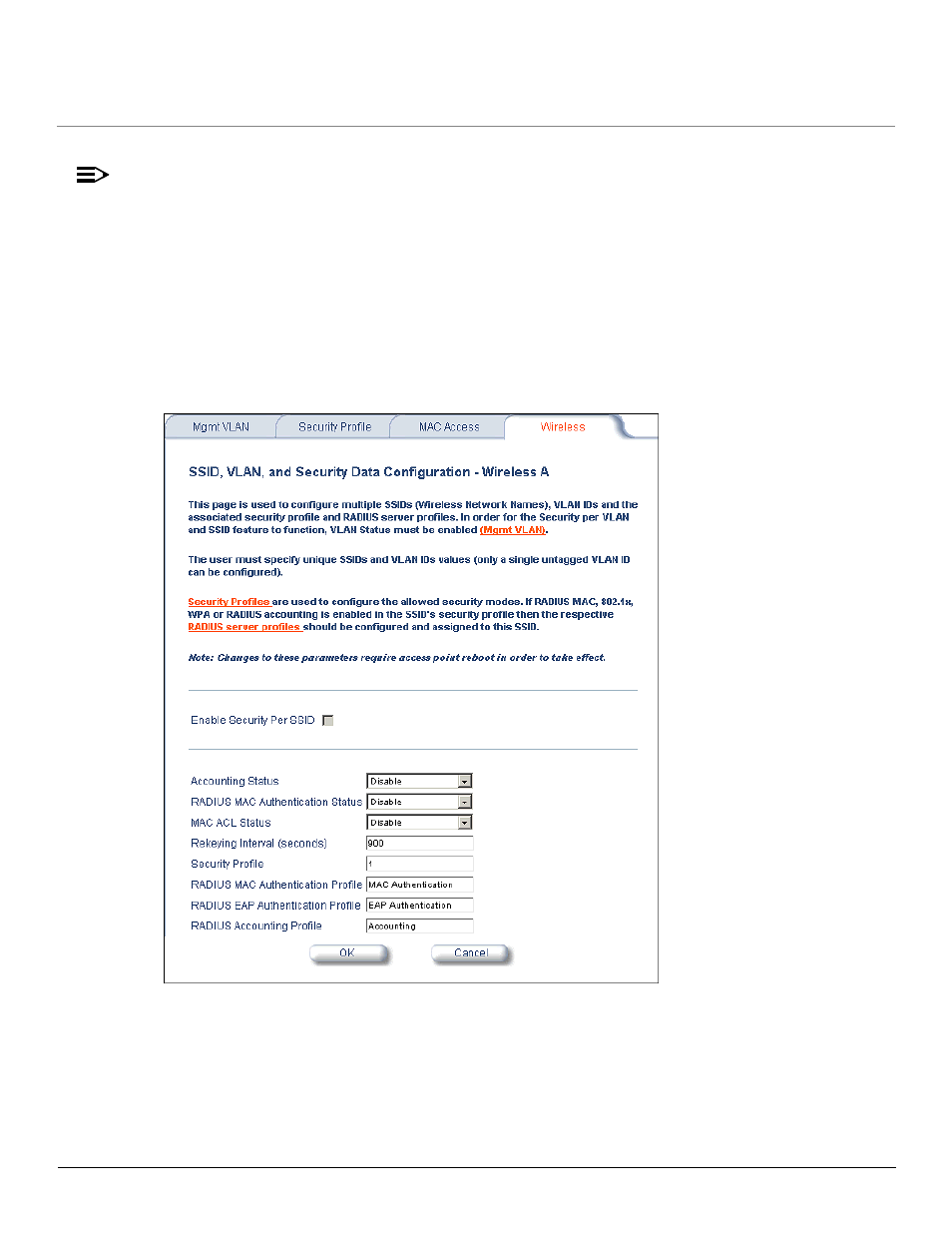

Figure 4-43 SSID, VLAN, and Security Data Configuration (VLAN Protocol Disabled)
8. Enable or disable RADIUS accounting on the VLAN/SSID under the Accounting Status drop-down menu.
9. Enable or disable RADIUS MAC authentication status on the VLAN/SSID under the RADIUS Authentication Status drop-down menu.
10. Enable or disable MAC Access Control List status on the VLAN/SSID under the MAC ACL Status drop-down menu.
11. Enter the Rekeying Interval in seconds. The default interval is 900 seconds.
12. Enter the Security Profile used by the VLAN in the Security Profile field. Refer to the
section for more information.
