1.3.4 Dimensional Envelope

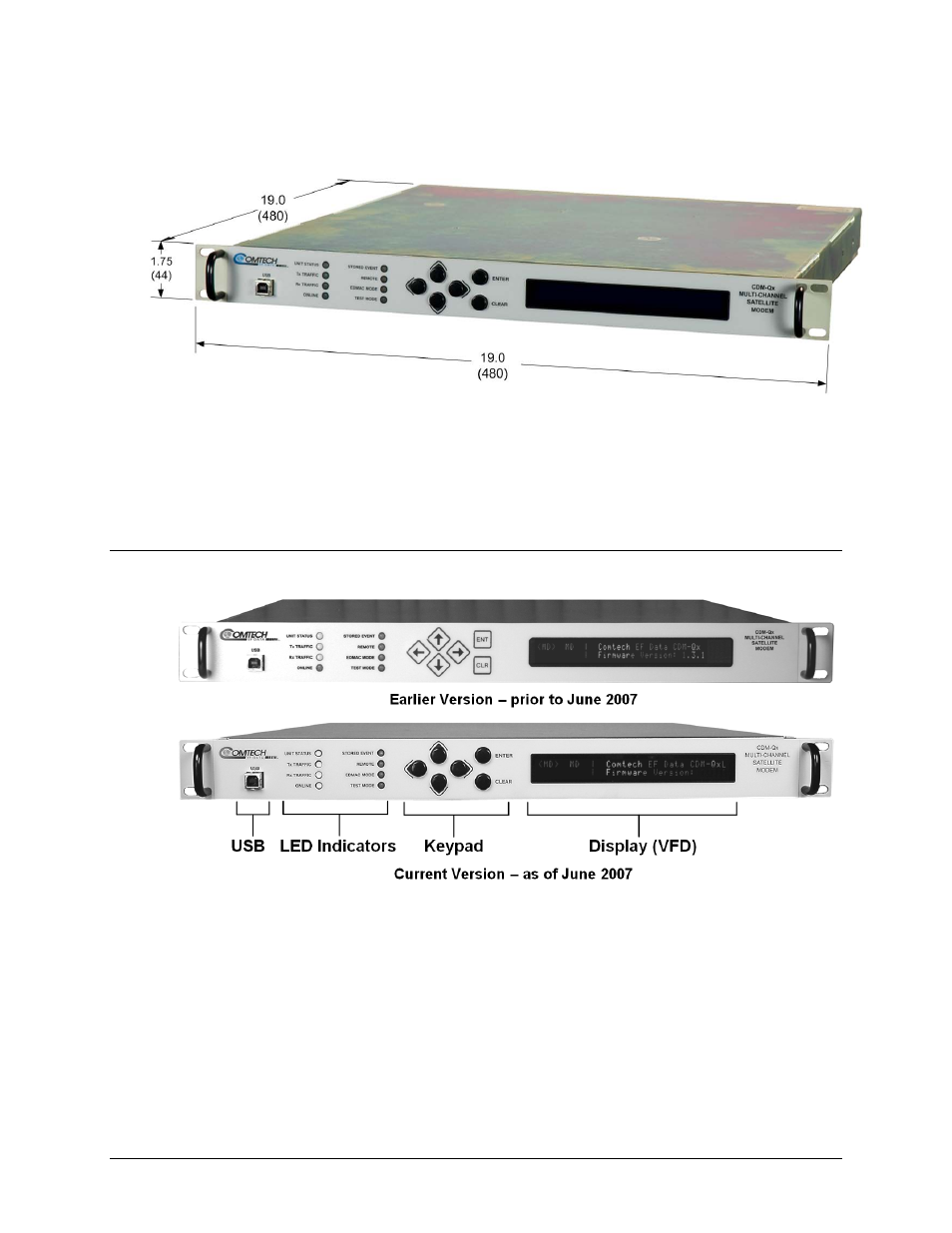

Figure 1-3. CDM-Qx/QxL Dimensional Envelope
1.3.5 Physical Features
1.3.5.1 Front Panel
Figure 1-4. Front Panel View (CDM-Qx shown)
Figure 1-4 shows the front panel of the CDM-Qx/QxL Open Network Satellite Modem. The
front panel features (from left), a USB port; eight Light-Emitting-Diode (LED) indicators; a
keypad; and a Vacuum Fluorescent Display (VFD):
• The USB port is a slave connector used to reflash the unit’s firmware. For more
information, refer to Chapter 4. FLASH UPGRADING.
• The LEDs indicate, in a summary fashion, the status of the unit.
• The keypad comprises six individual keyswitches. They have a positive ‘click’ action,
which provides tactile feedback. The user enters data via the keypad, and messages are
displayed on the VFD.
