A.1.1 EIA-530 to RS-422/449 Data Cable

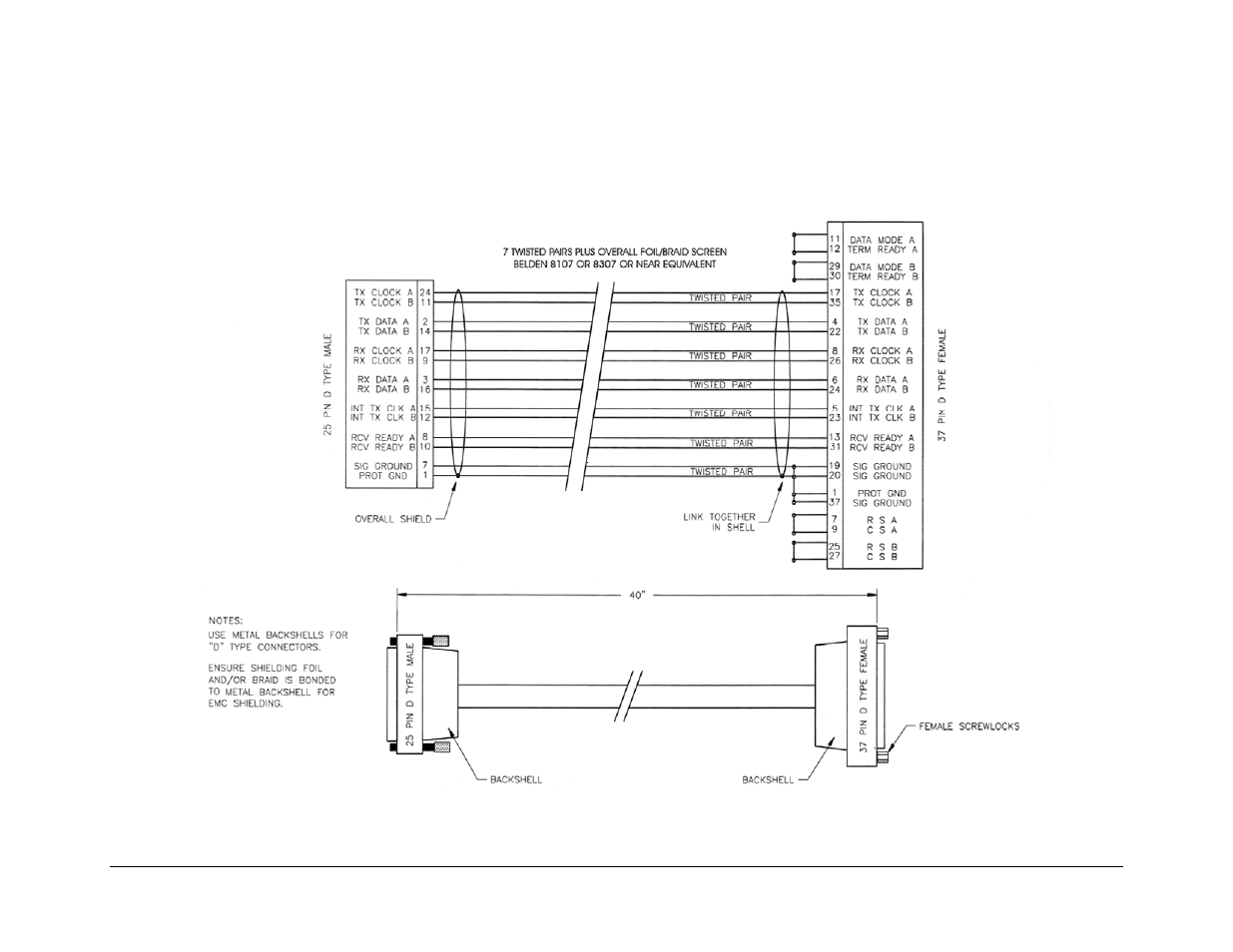

Figure A-1 shows the cable drawing for EIA-530 to RS-422/449 DCE conversion for connections between the CDM-Qx/QxL and the
User data.
Figure A-1. : EIA-530 to RS-422/449 DCE Conversion Cable (CA/WR0049)
