Mocomtech CDM-QX - Manual (Page 163)

CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier® Revision 7
Ethernet Management MN/CDMQX.IOM
6–33
6.5.4.3.2 Config Mdm | Unit Status Page

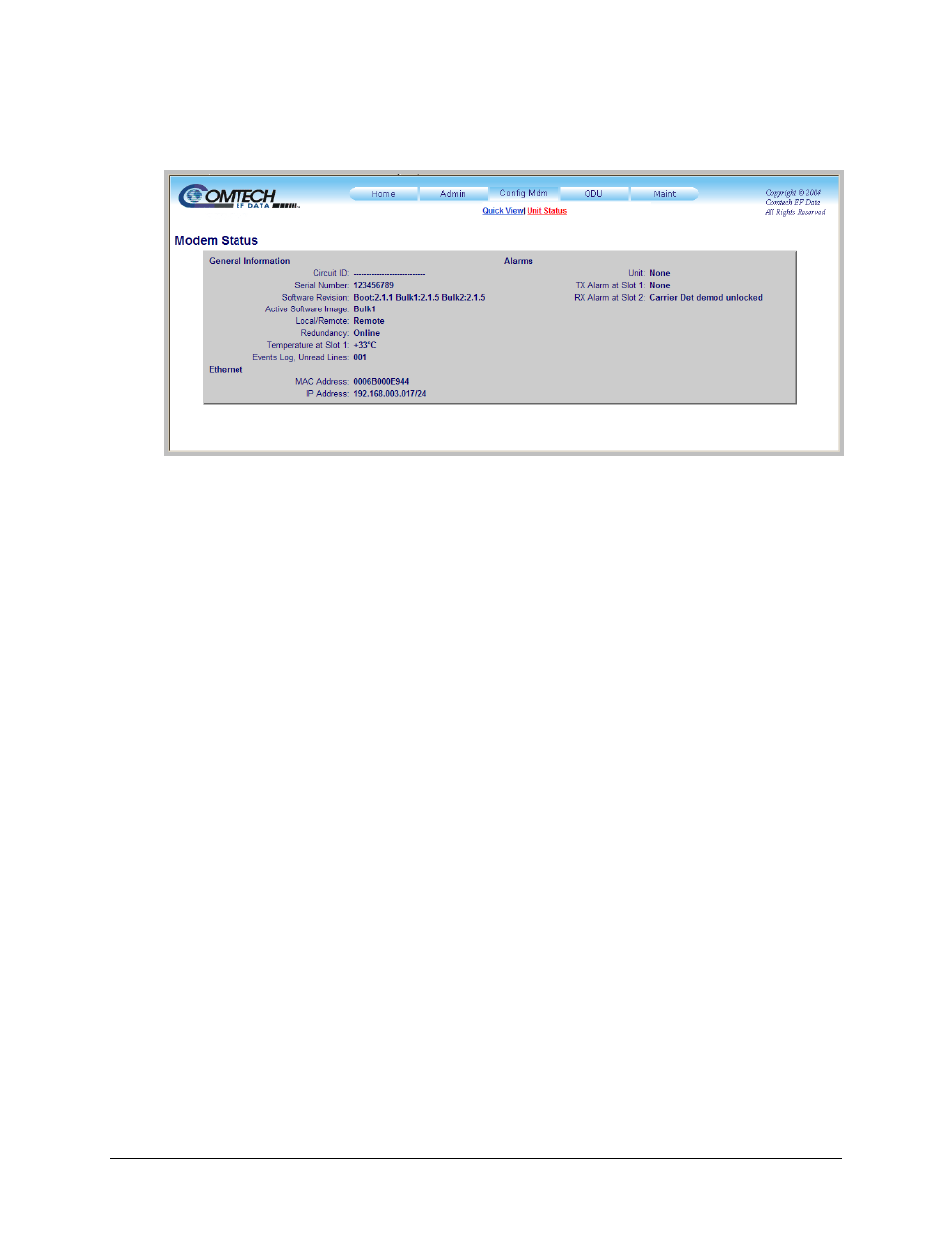

Figure 6-17. Config Mdm | Unit Status Page
The ‘Config Mdm | Unit Status’ page (Figure 6-17) provides the user with read-only status
window pertaining to:
• General Information about the base unit;
• Ethernet MAC and IP Address assignments;
• Alarms.
Click any tab or hyperlink to use other interface features.
