• Using the drop-down menus…
o Tx Pwr Max Increase – Select a value (in dB) from 0 to 9.
o Max Pwr Reached Action – Select No Action or Generate Tx Alarm.
o AUPC Enable – Select Enables or Disabled.
o Rem Rx Unlock Action – Select Go to Nominal Power or Go to Maximum
Power.
• For Rem Tx Target Eb/No – Type in a target value (in dB) from 0.0 to 9.9.
Click [Submit] once all the parameters have been set in this section.
(Quad, D&I++) Drop and Insert
(Available only on the MD nested Utility page) – The appearance of the Drop & Insert section of
this page is dependent on the Framing Mode selected on the ‘Config Mdm | Quick View | (Tx,
Rx, or MD) Config page (Sect. 6.5.4.3.1.1.). Contents will vary accordingly:

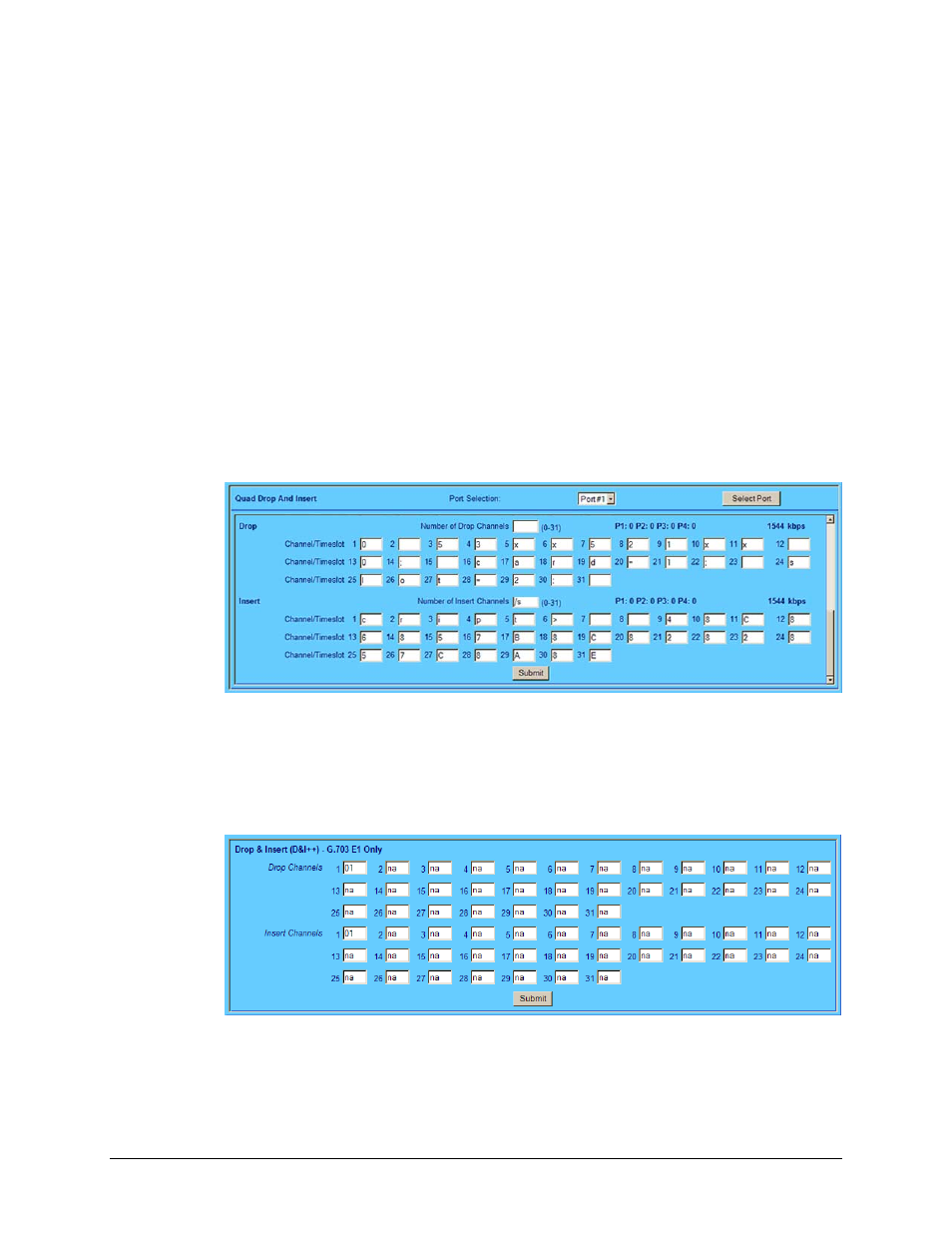

• If the selected Framing Mode is Unframed, EDMAC, or EDMAC-2, the section heading
reads “Quad Drop and Insert” and the available parameters appear as follows:
For full details on Quad Drop and Insert, see Sect. 5.4.6.4 CONFIG: INTERFACE Æ
QDI in Chapter 5. FRONT PANEL OPERATION.
Once the desired configuration settings have been made on this page, the user should then
click [Submit] as needed to save those changes.
• If the selected Framing Mode is D&I++, the section heading will read “Drop & Insert
(D&I++) – G.703 E1 Only” and the available parameters appear as follows:
For full details on D&I++, see Sect. 5.4.5.3 CONFIG: FRAME Æ D&I++ in Chapter 5.
FRONT PANEL OPERATION.
Once the desired configuration settings have been made on this page, the user should then
click [Submit] as needed to save those changes.
