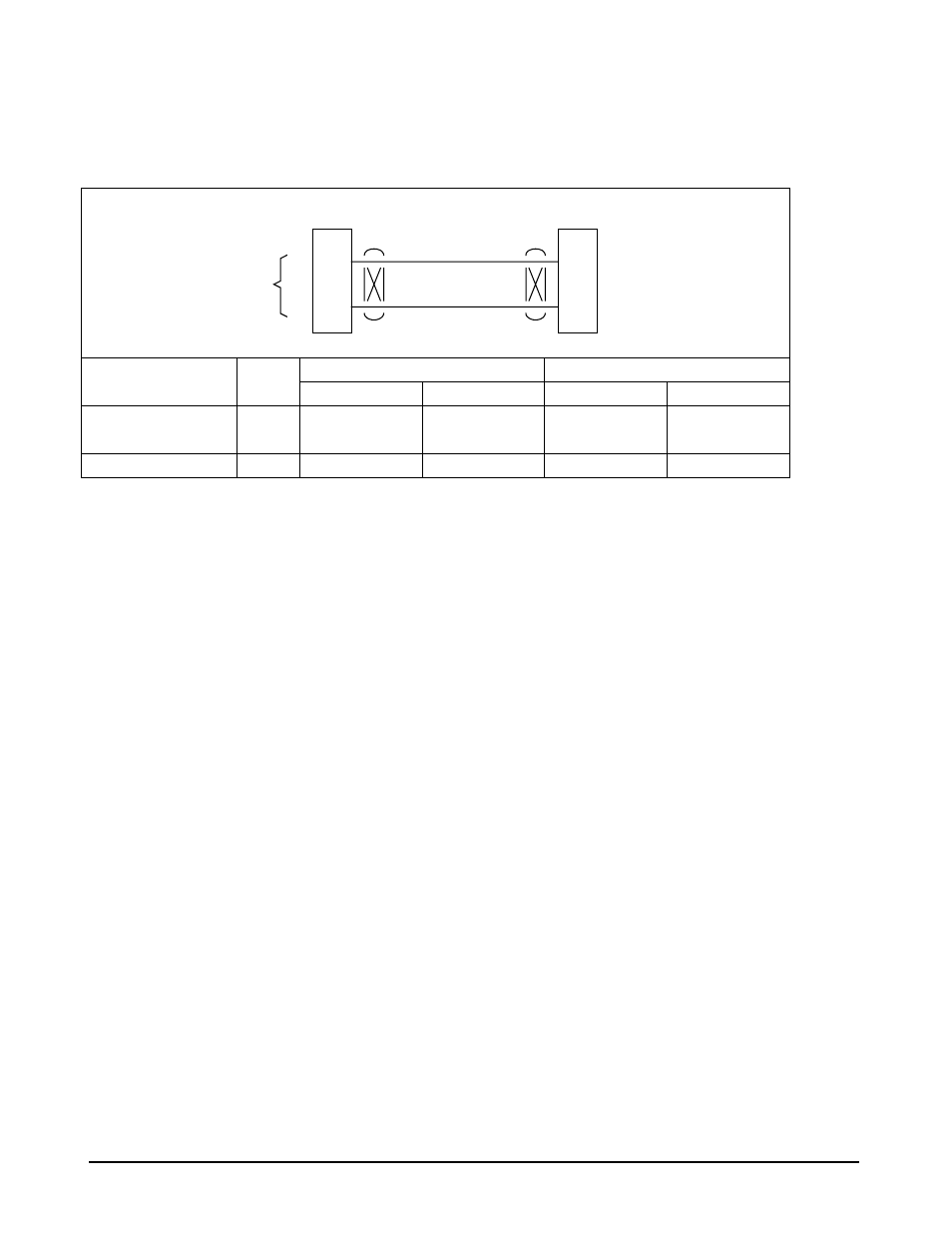

3.4.3 Digital –AR INC 575 (Cat. 2 ID 2)
Air Data Type 2 (ADC-80 or equivalent) is a low speed, digital ARINC 575 signal having the air data labels 203,
206, 212, and 213.
39
38
A
B
J2
ARINC 575 Air Data
ARINC 575 Bus - Hi
ARINC 575 Bus - Lo
EGPWS MK VI / MK VIII
A
B
ARINC 575
Air Data Bus
ARINC575-ADC.vsd
Cat 2
Bus 1
Bus 2
Vendor Model
ID
A
B
A
B
Collins ADC-80( )
Collins ADC-82A
2
P3-35
P3-36
B&D 90004
2
J1-27
J1-9
NOTE:
The connector pin numbers given in the Table above are to the best knowledge of Honeywell EGPWS engineering. Please
contact the manufacturer’s customer service to confirm your installation.
