Honeywell
MK VI MK VIII EGPWS Installation Design Guide
Proprietary notice on title page applies
CAGE CODE: 97896 SCALE: NONE SIZE: A DWG NO: 060-4314-150 REV: SHEET 33
INSTALLATION ASSEMBLY SEQUENCE
STEP 1 Install all MK VI/MK VIII system aircraft wiring to this connector using items 1.2 (Crimp
Contacts) and item 1.1 (Connector). See figure 2.1-1 below.

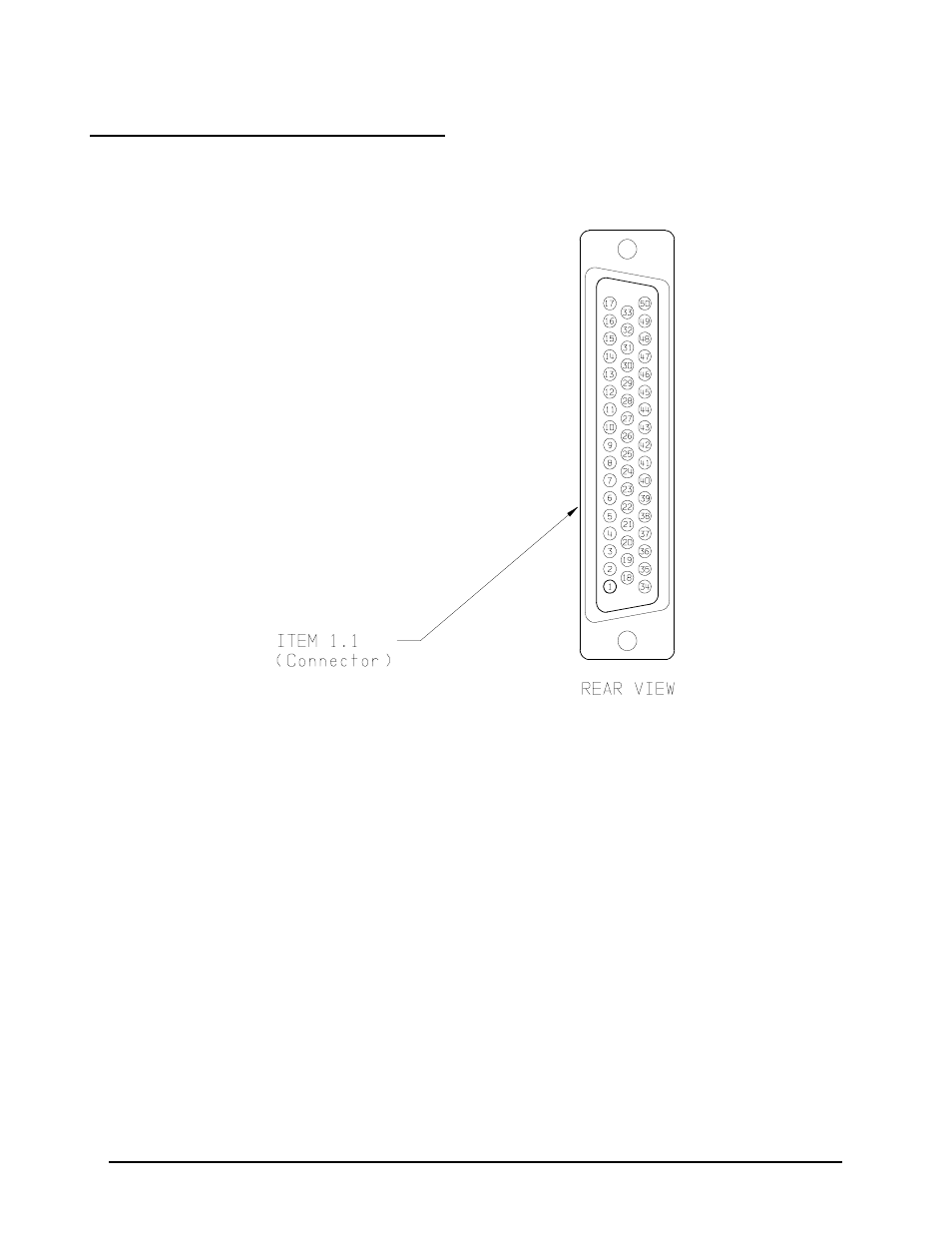

FIGURE 2.1-1 MK VI/MK VIII EGPWS CONFIGURATION MODULE
