MK VI MK VIII EGPWS Installation Design Guide
Proprietary notice on title page applies
CAGE CODE: 97896 SCALE: NONE SIZE: A DWG NO: 060-4314-150 REV: SHEET 36
STEP 4 Install item 1.3 (Backshell Housing) onto connector using item 1.8 (Screws) as shown in figure
2.1-4 below:
Ground Wire (used for electrostatic discharge {ESD} protection) is terminated with shielded
pigtails of wires at this connector.

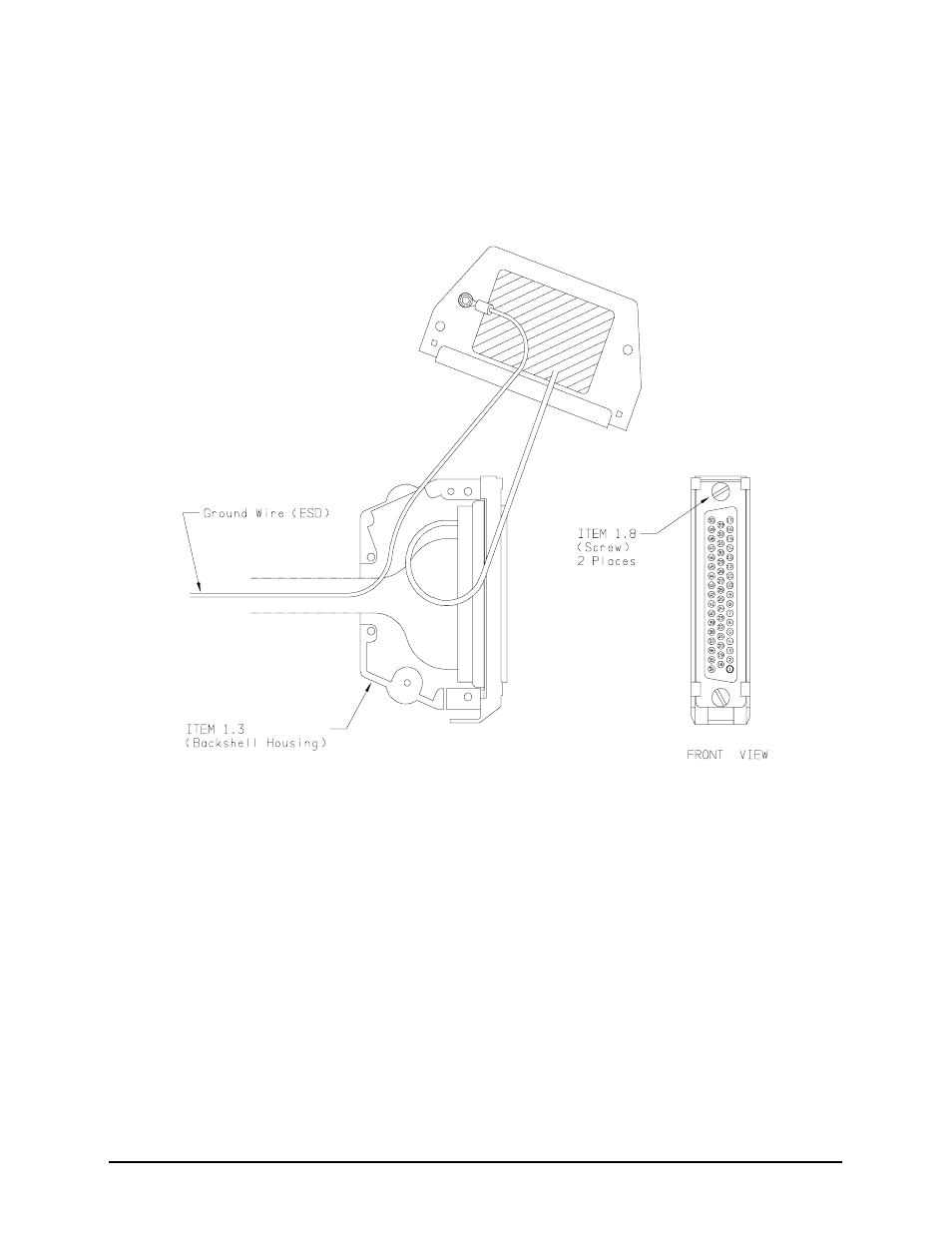

FIGURE 2.1-4 MK VI/MK VIII EGPWS CONFIGURATION MODULE
