HEIDENHAIN iTNC 530 453
16.13 MEA
S
URE PLANE (Cy
c
le 431, DIN/ISO:
G431)
16.13 MEASURE PLANE (Cycle 431,
DIN/ISO: G431)
Cycle run

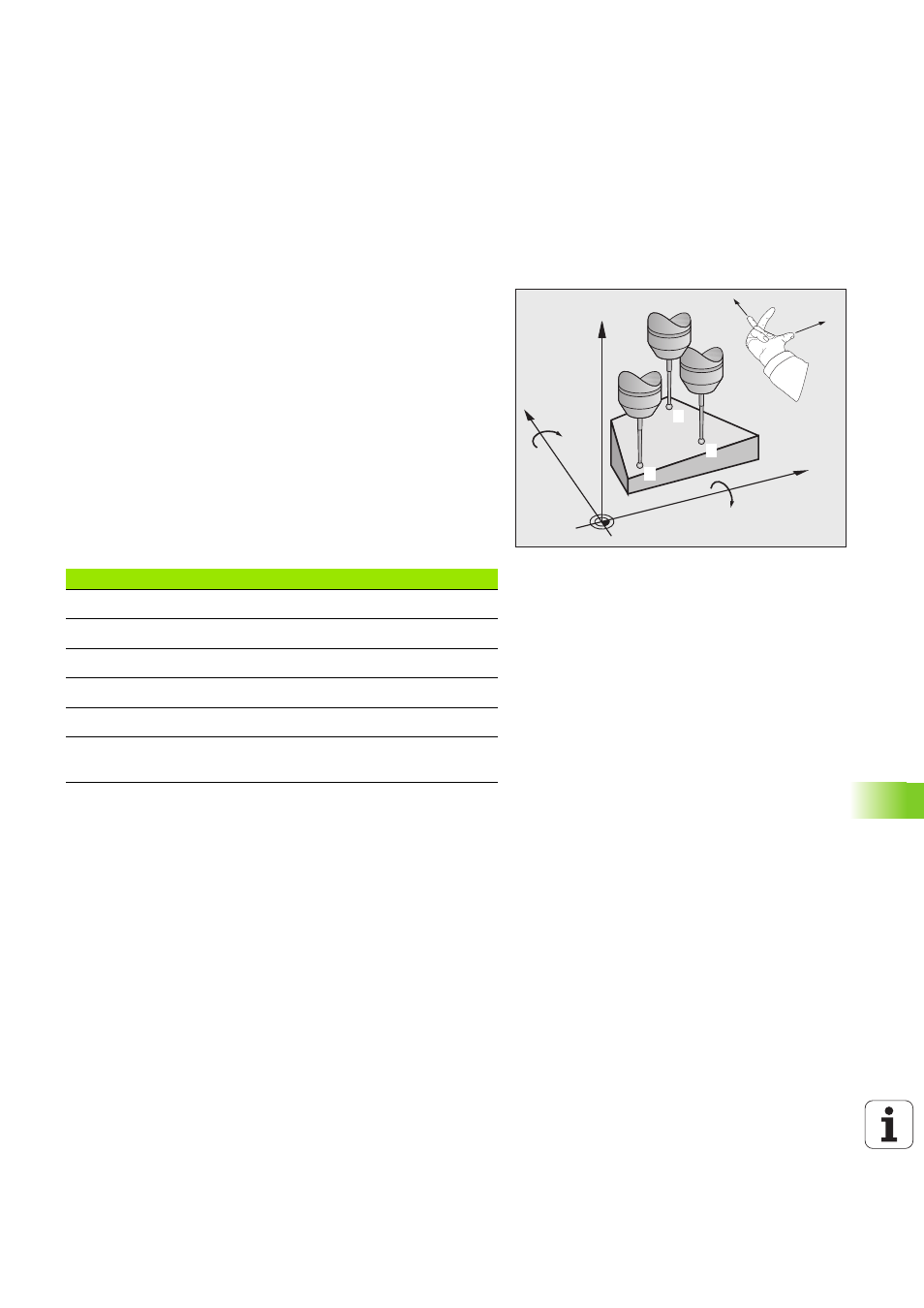

Touch Probe Cycle 431 finds the angles of a plane by measuring three
points. It saves the measured values in system parameters.
1 Following the positioning logic (siehe „Executing touch probe
cycles” auf Seite 334), the TNC positions the touch probe at rapid
traverse (value from MP6150) to the programmed starting point
1
and measures the first touch point of the plane. The TNC offsets
the touch probe by the safety clearance in the direction opposite
to the direction of probing.
2 The touch probe returns to the clearance height and then moves in
the working plane to starting point
2 and measures the actual value
of the second touch point of the plane.
3 The touch probe returns to the clearance height and then moves in
the working plane to starting point
3 and measures the actual value
of the third touch point of the plane.
4 Finally the TNC returns the touch probe to the clearance height and
saves the measured angle values in the following Q parameters:
X
Z
Y
1
2
3
+X
+Y
A
B
Parameter number Meaning
Q158 Projection angle of the A axis
Q159 Projection angle of the B axis
Q170 Spatial angle A
Q171 Spatial angle B
Q172 Spatial angle C
Q173 to Q175 Measured values in the touch probe axis
(first to third measurement)
