5.4 SL
O
T
MILLING (Cy
c
le 253, DIN/ISO:
G253)

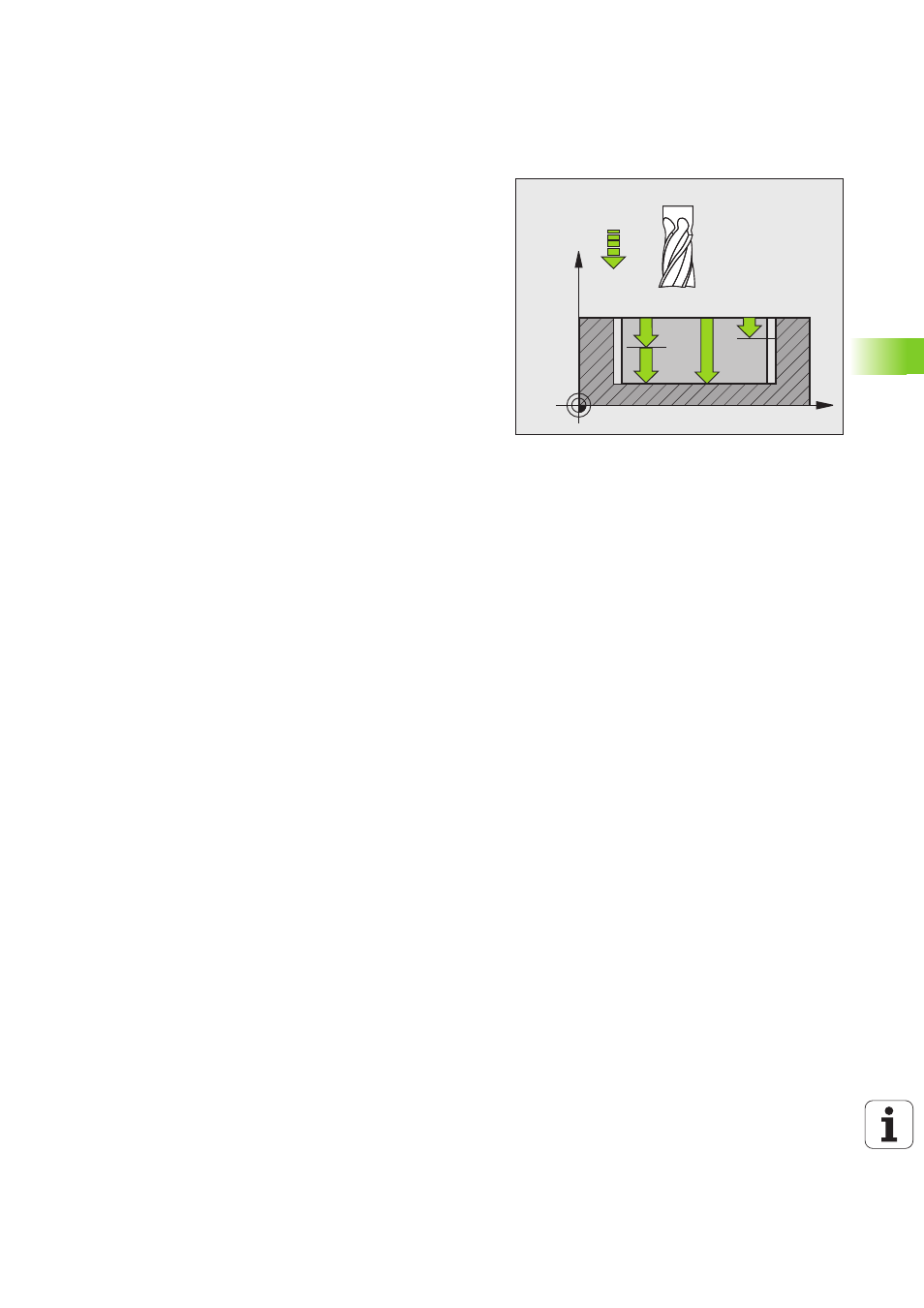

 Depth Q201 (incremental): Distance between
workpiece surface and bottom of slot. Input range
-99999.9999 to 99999.9999
 Plunging depth Q202 (incremental): Infeed per cut.
Enter a value greater than 0. Input range 0 to
99999.9999
 Finishing allowance for floor Q369 (incremental):
Finishing allowance in the tool axis. Input range 0 to
99999.9999
 Feed rate for plunging Q206: Traversing speed of
the tool in mm/min while moving to depth. Input
range 0 to 99999.999; alternatively FAUTO, FU, FZ
 Infeed for finishing Q338 (incremental): Infeed per
cut. Q338=0: Finishing in one infeed. Input range 0 to
99999.9999
X
Z
Q201
Q206
Q202
Q338
