130 Teach-in mode
4.2
W
or
kpiece
blank
cy
cles

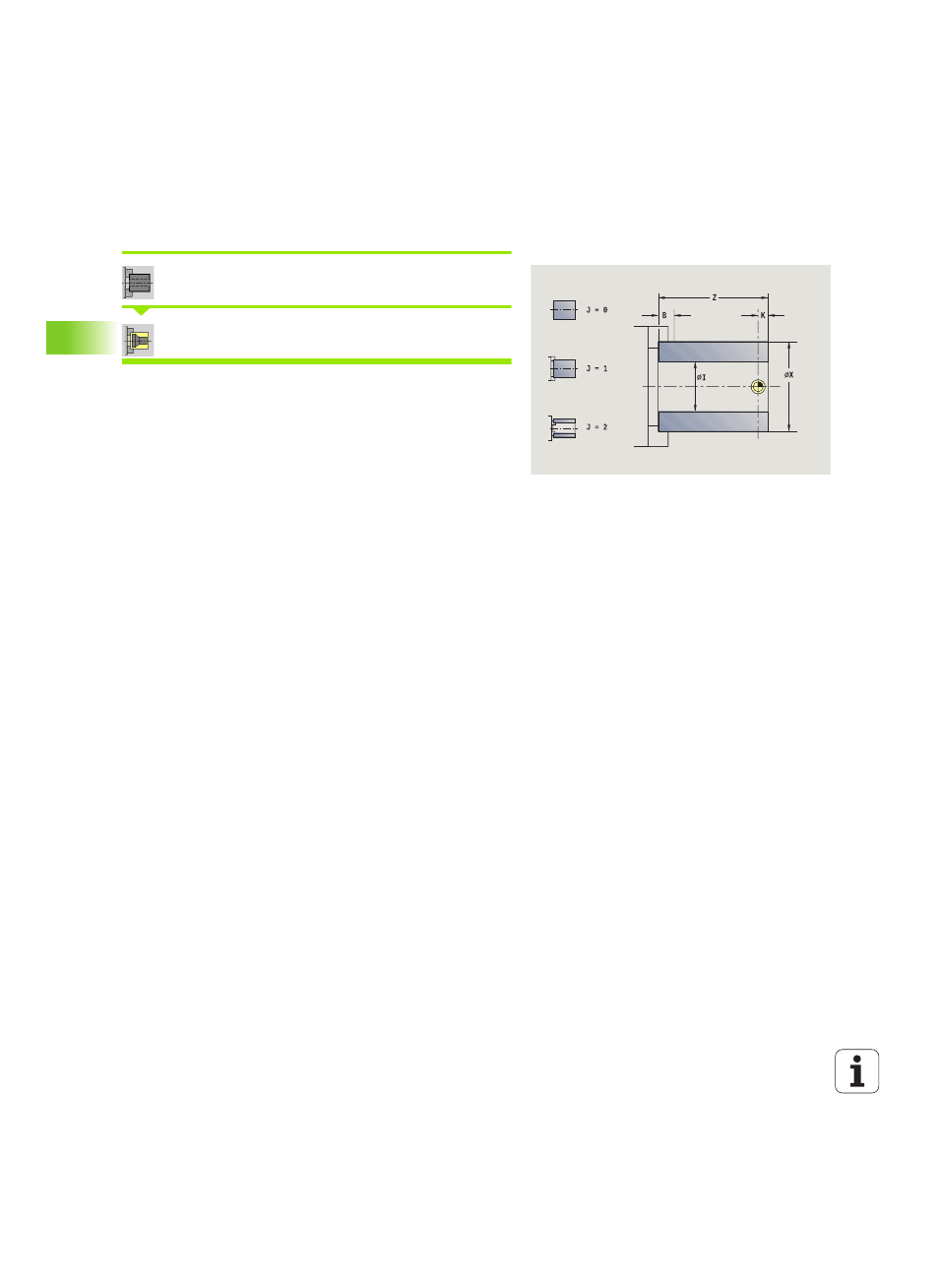

Bar/tube blank
Select define the blank
Select bar/tube blank
The cycle describes the workpiece blank and the setup used. This
information is evaluated during the simulation.
Cycle parameters
X
Outside diameter
Z Length, including transverse allowance and clamping range
I Inside diameter for workpiece blank "tube"
K Right edge (transverse allowance)
B Clamping range
J Clamp type
 0: Not clamped
 1: Externally clamped
 2: Internally clamped
WP Displays which workpiece spindle is used to process the cycle
(machine-dependent)
 Main drive
 Opposing spindle for rear-face machining
RG Contour follow-up for Teach-in mode (see also "Contour follow-
up in Teach-in mode" on page 124):
 0: Without contour follow-up
 1: With contour follow-up
