Chapter 7 Modifying a Channel: Timecode Settings
184 Profile XP System Guide July 27, 2001

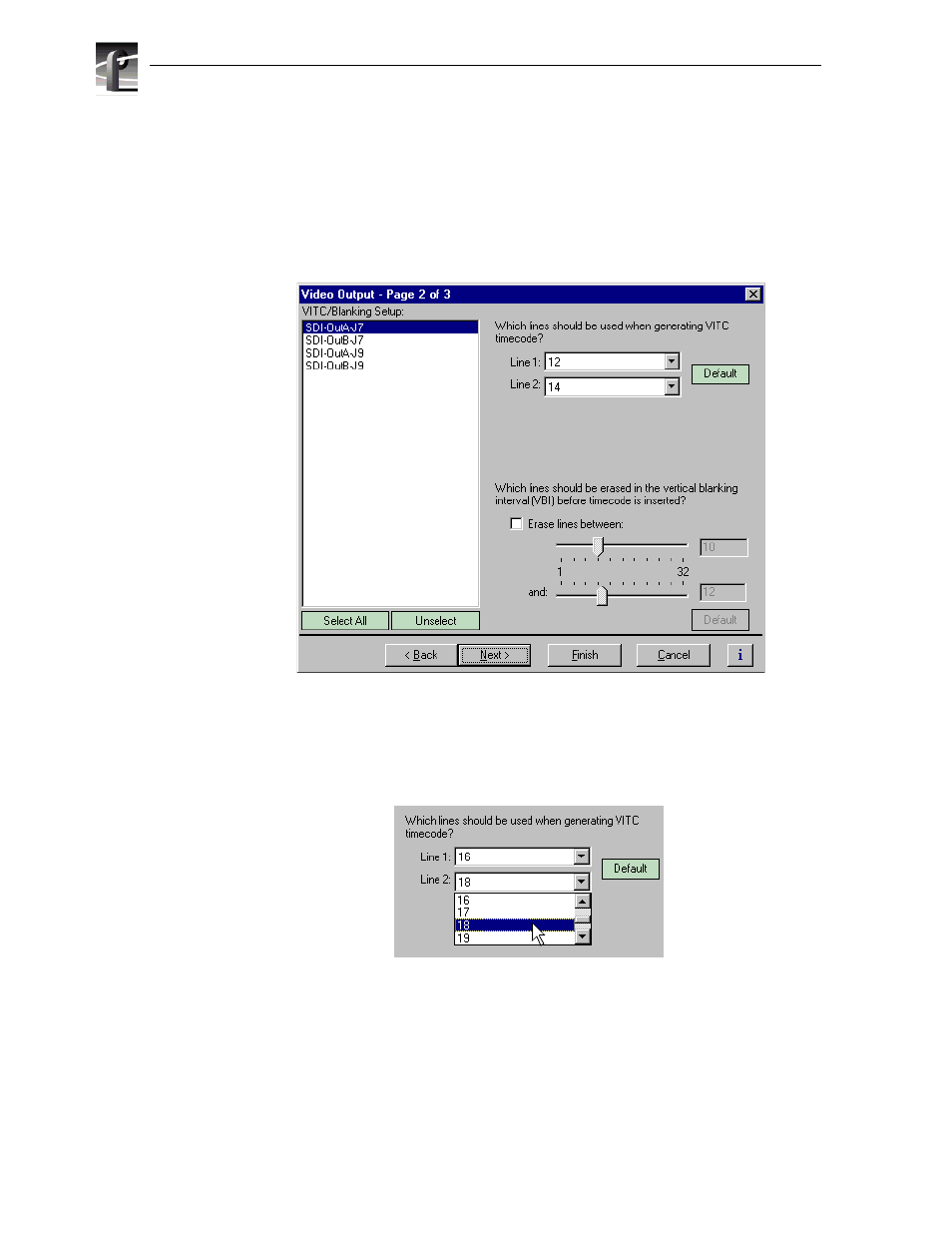

Setting up the VITC generator on a video output
To set up the VITC generator:
1. Choose Video Output in the Configuration Manager window. The Video Output
dialog box appears.
2. Click Next to navigate to Video Output page 2 of 3.
3. Select a video output from the list or click Select All to configure all video inputs
at the same time.
6. Type or select the line numbers where the VITC signals should be generated using
the Line 1 , Line 2 drop-down lists.
4. Click Finish save your settings.
