Chapter 4 Adding or Removing Channels
104 Profile XP System Guide July 27, 2001

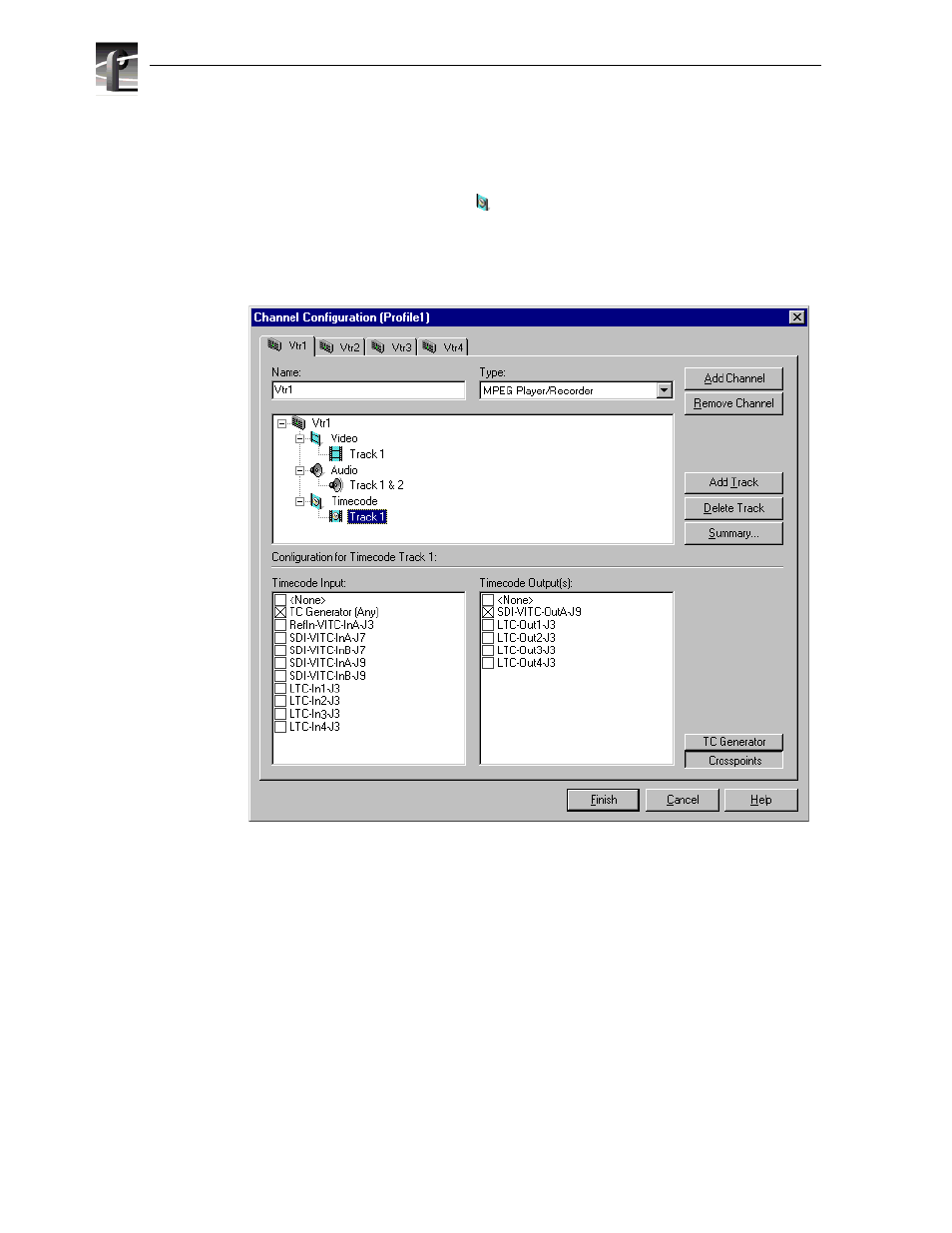

Selecting timecode I/O for each timecode track
To select timecode inputs and outputs for each timecode track:
1. Double-click the Timecode icon ( ) to expand the configuration tree.
2. Click the Crosspoints button and then select a timecode input from the Timecode
Input list. If you choose TC Generator, refer to “Using the internal timecode
generators” on page 172 for instructions on setting up the timecode generator.
3. With the Crosspoints button still selected, choose a timecode output from the
Timecode Output(s) list.
NOTE: The VITC output listed corresponds to the video output assigned to the
channel. For example, “SDI-VITC-OutA-J5” appears in the Timecode Output list
box for Vtr1 when “SDI-OutA-J5” is selected as the video output. If you change a
video output for a channel, the VITC output listed also changes.
4. Click the Finish to save your channel settings and close the Channel Configuration
dialog box. You can now select the new channel in your Profile application.
