Front Panel Operations Imagestore 750 User Manual
Page 80 Miranda Technologies Inc.
Setup
Left
Right
Top
Bottom
C, G & T
Clip (Value 64 to 940)
Gain (Value 64 to 940)
Trans (Value 0 to 512)
Cut To/Fr Blk
Cut From Blk
Cut To Blk
Fade To/Fr Blk
Fade From Blk
Fade To Blk
FTB Rate
(Value in fields 1 to 999)
A CUT transition is an instant switch to the selected source. By default this is
achieved between frames in the vertical interval so the active picture is
allowed to finish before the new data is transmitted, but other cut options are
also possible (see page 68).
A FADE transition is the gradual process of switching to the selected source
with rates adjustable between 1 and 999 fields (16.65 seconds at 60Hz, 19.98
seconds at 50Hz). By default fades begin between frames in the vertical
interval, but this can be adjusted (see page 68).

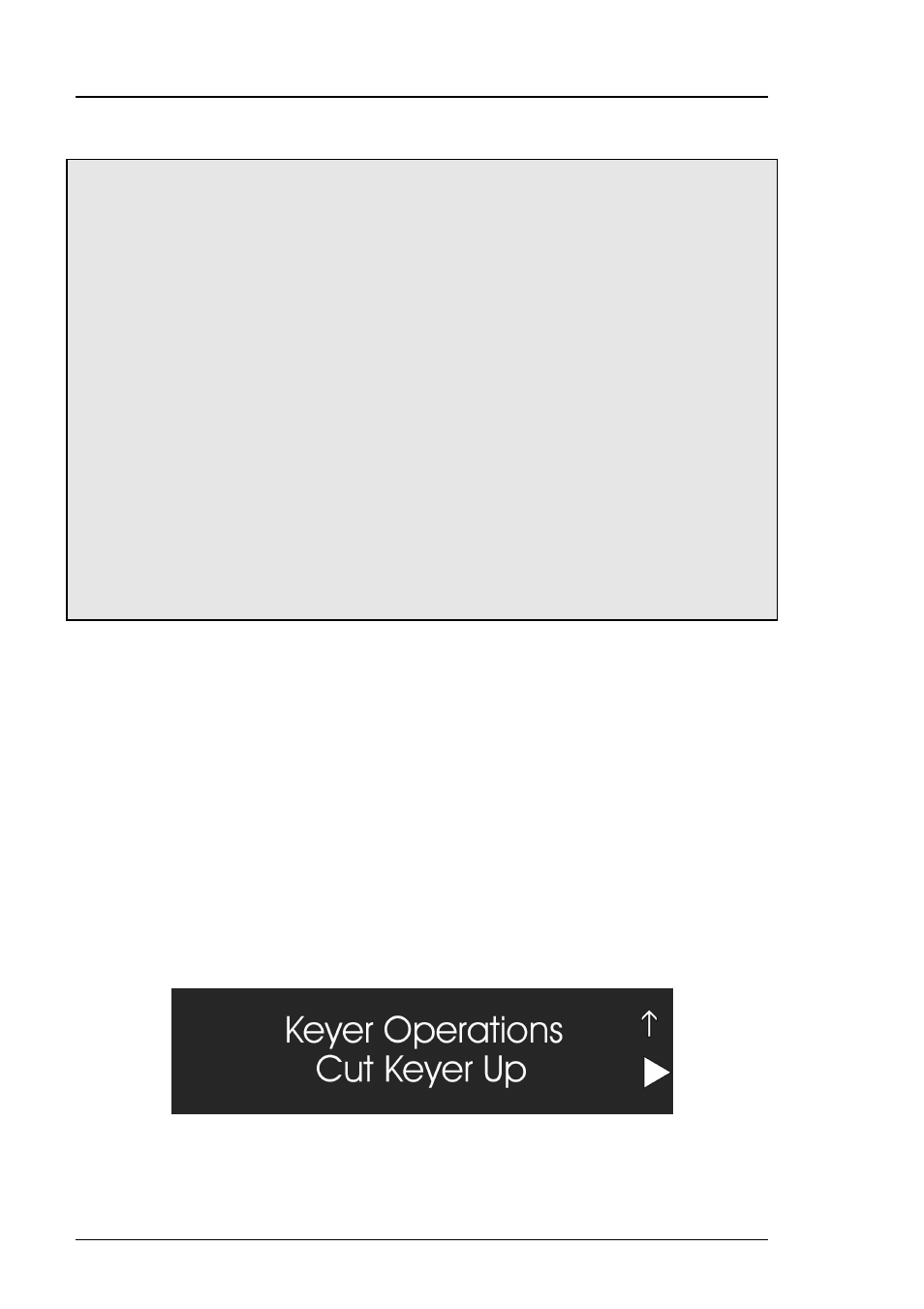

Symbols will appear on the top line of the front panel display indicating the
status of the keyer.
