Installation
Imagestore 750 User Manual
Page 270
Miranda Technologies Inc.

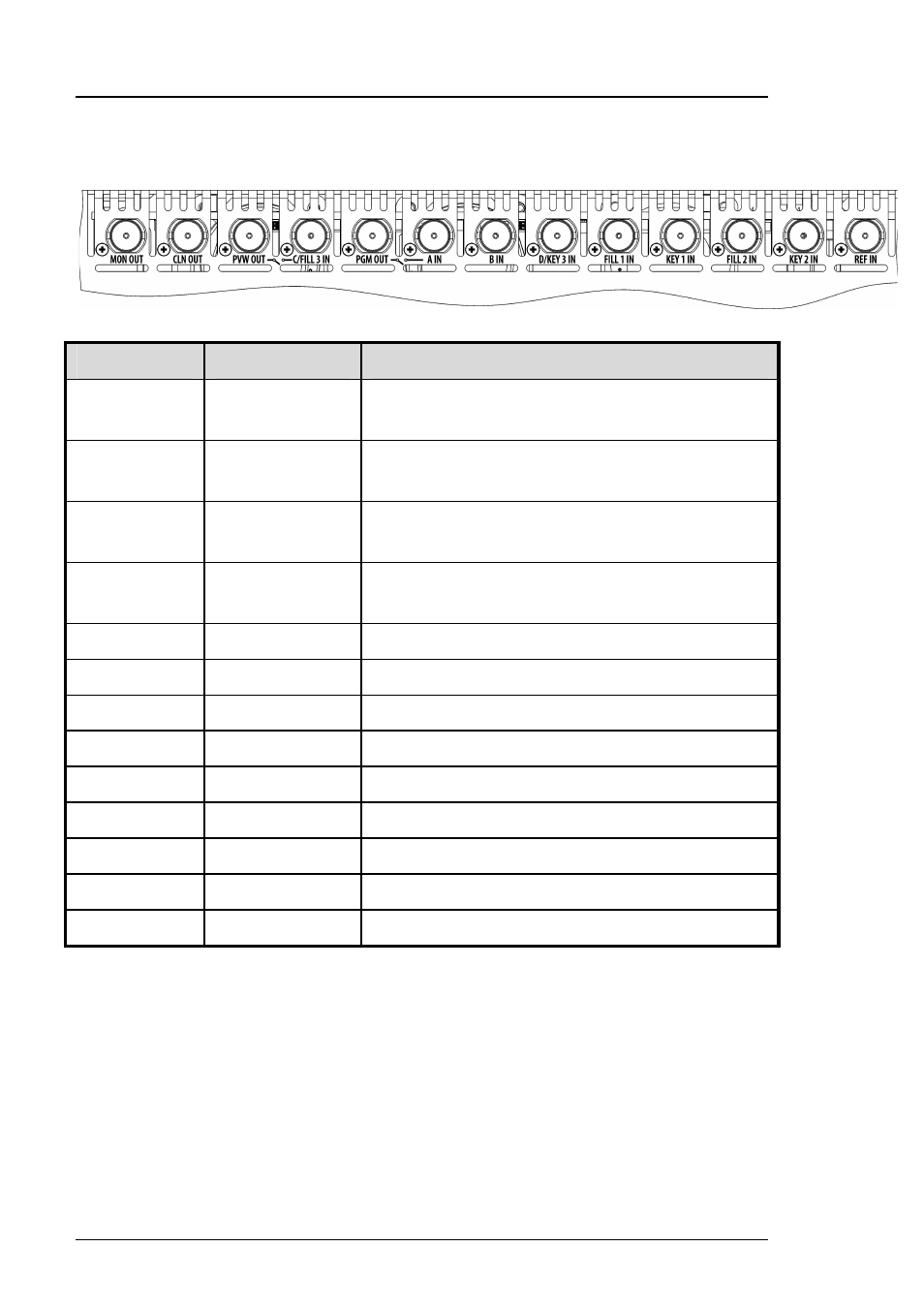

Name
Connector
Description
REF IN
BNC (female)
Analogue reference HD tri-level sync or SD
bi-level sync (“black and burst”)
MON OUT
BNC (female)
Selectable, SDI Monitor Output.
See page 97 for options.
CLN OUT
BNC (female)
Selectable, SDI Clean Feed Output.
See page 96 for options.
PVW OUT
BNC (female)
Selectable, SDI Preview Output.
See page 95 for options.
PGM OUT
BNC (female)
SDI Program Output
A IN
BNC (female)
SDI video input A (Background).
B IN
BNC (female)
SDI video input B.
FILL-1 IN
BNC (female)
SDI video Fill-1 input.
KEY-1 IN
BNC (female)
SDI video Key-1 input.
FILL-2 IN
BNC (female)
SDI video Fill-2 input.
KEY-2 IN
BNC (female)
SDI video Key-2 input.
C/FILL-3 IN
BNC (female)
SDI video Fill-3 input or C input.
D/KEY-3 IN
BNC (female)
SDI video Key-3 input or D input.
Video Relay Bypass
Two mechanical video relay bypasses are fitted which route SDI inputs to
outputs in the event of a power failure and also while the Imagestore 750 unit
is starting up.
