Configuring Up-Mix via Route Manager
The Route Manager is part of the Configurator tool, a Windows graphical
user interface tool which ships within the Miranda Conversion Software
(MCS) CD. This allows the engineering user to configure various aspects of
the Imagestore, including the audio setup.
The Route Manager is the recommended tool for designing audio
configurations that incorporate Up-Mix modules.

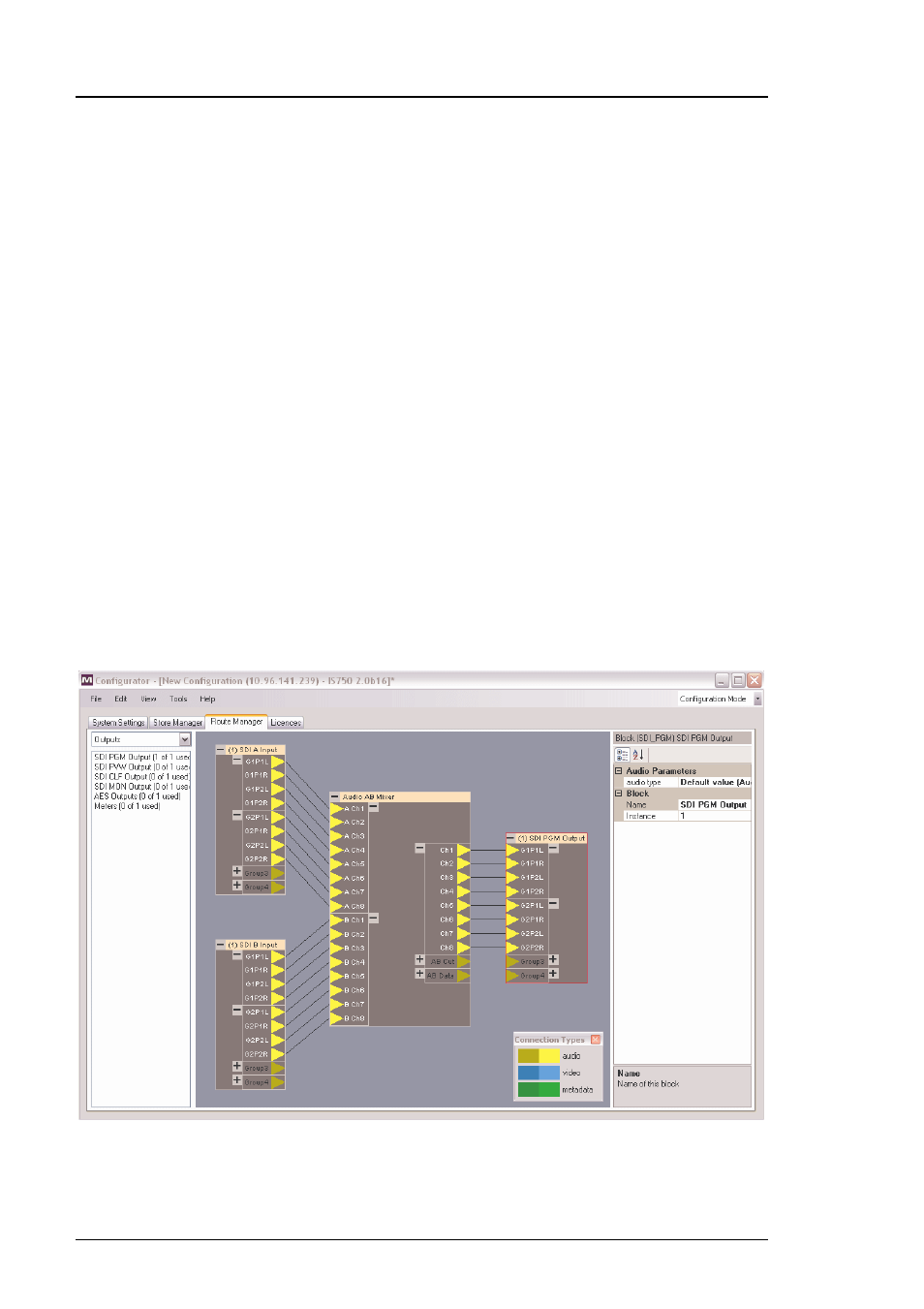

Configurator Tool
Within the Configurator tool, the user can set up the following:
•
Draw the audio configuration connecting up audio inputs/outputs
and other blocks to Up-Mix blocks
•
Draw Dolby metadata configurations and connect up any required
metadata to Up-Mix modules
