Technical Specifications
Inside an Imagestore 750 that is fitted with a Dolby kit, there is a Dolby
carrier card fitted which contains four available slots for Dolby modules.
There are no specific slots for Encode or Decode modules because the
Imagestore 750 detects the modules’ presence and type automatically.
Dolby Module Types
The Dolby modules used in the Imagestore 750 are as follows:
•
Dolby Decoder Module
•
Dolby E Encoder Module
•
Dolby Digital Encoder Module

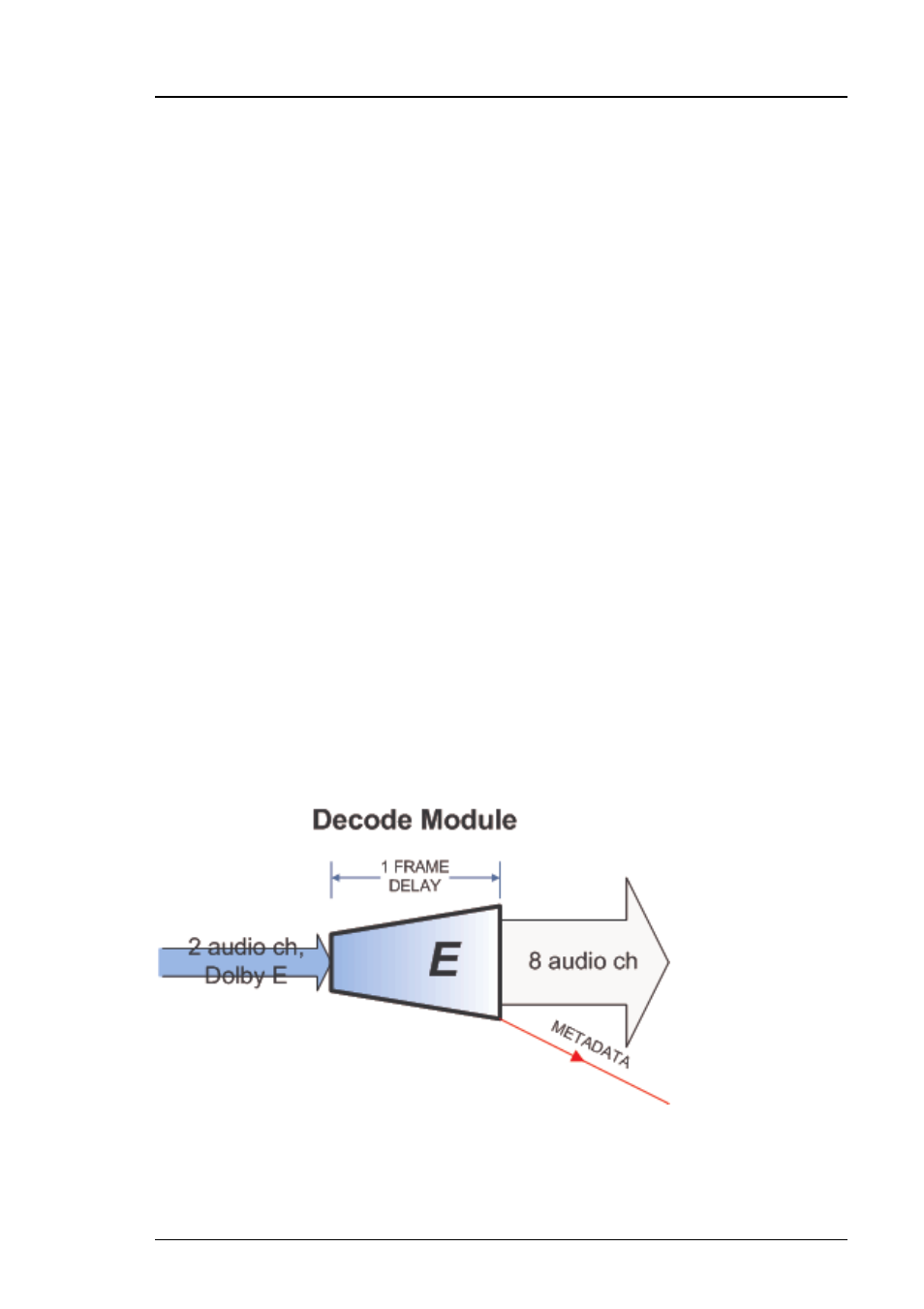

Dolby Decode Module
Dolby part number: CAT552
The Dolby CAT552 module has capability for both Dolby-E and Dolby
Digital decode. The Imagestore 750 decoder application here is for Dolby E
contribution audio only. The module accepts a stereo pair, and outputs a
metadata stream, and eight audio channels.
