4–1
Chapter 4. FRONT PANEL
OPERATION
4.1 Front Panel
The modem front panel (Figure 4-1) enables control of modem configuration parameters and
displays the modem status.

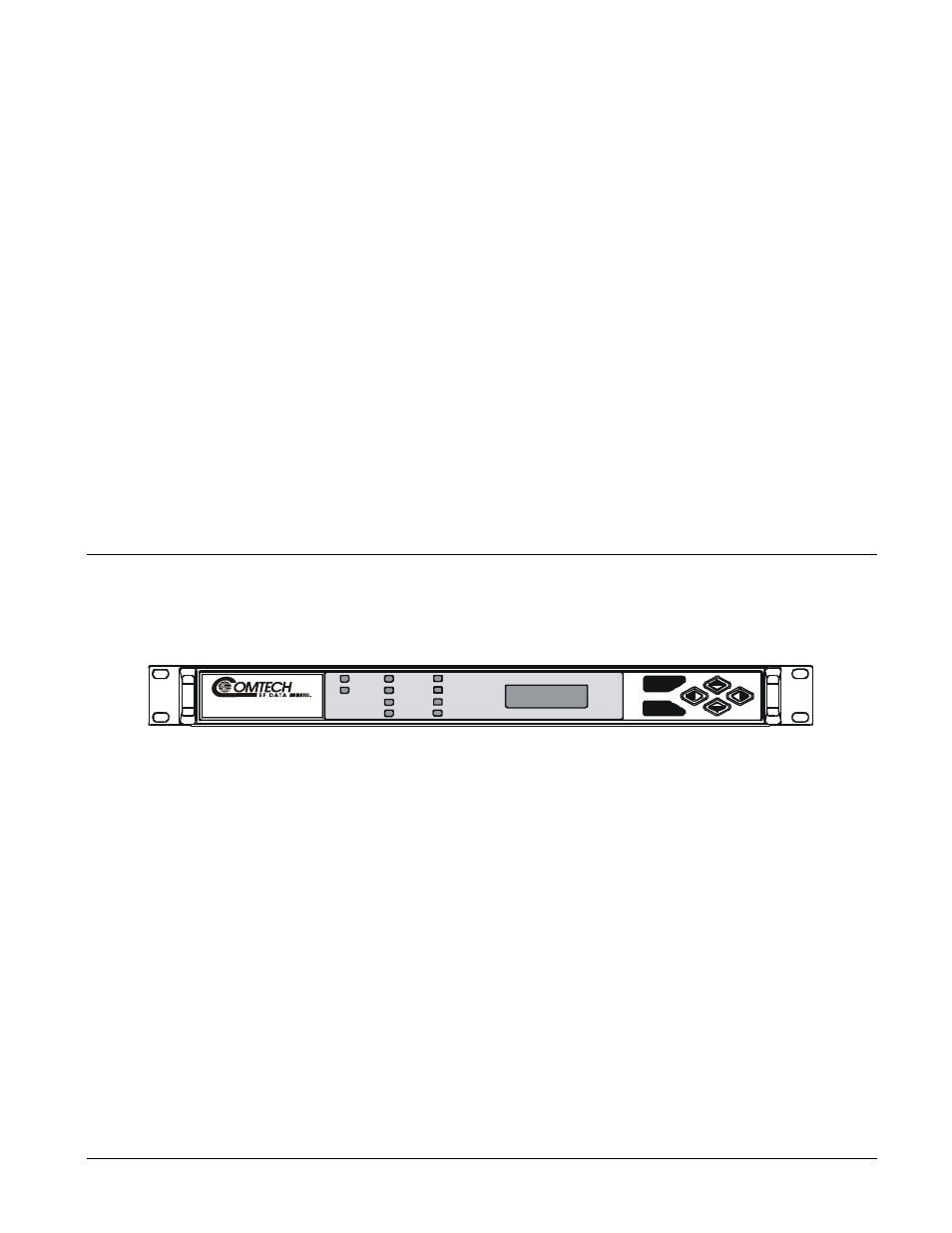

Figure 4-1. Front Panel View
The front panel features include:
• 32-character, 2-line LCD display
• 6-button keypad for local control
• 10 LEDs to provide overall status at a glance
All functions are accessible at the front panel by entering one of six pre-defined Function
Select categories or levels:
• Configuration
• Monitor
• Faults/Alarms
• Stored
Faults/Alarms
• AUPC
• Utility
POWER ON
T RANSMIT TER ON
CARRIER DETECT
TEST MODE
ENTER
CLEAR
S N M - 1 0 1 0 D a t a C o n t r o l M o d e m
O P WER ON
TRANSMIT TER ON
CARRIER DETECT
EST MODE
ENTER
CLEAR
SNM-1001L
Satellite Modem
TRANSMIT
RECEIVE
TRANSMIT
RECEIVE
COMMON
STORED T
