Figure 7-6. sequential decoder and 56 kbps – Comtech EF Data SNM-1001L User Manual
Page 188
SNM-1001L Satellite Modem
Revision 1
Forward Error Correction Options
MN/SNM1001L.IOM
7–12

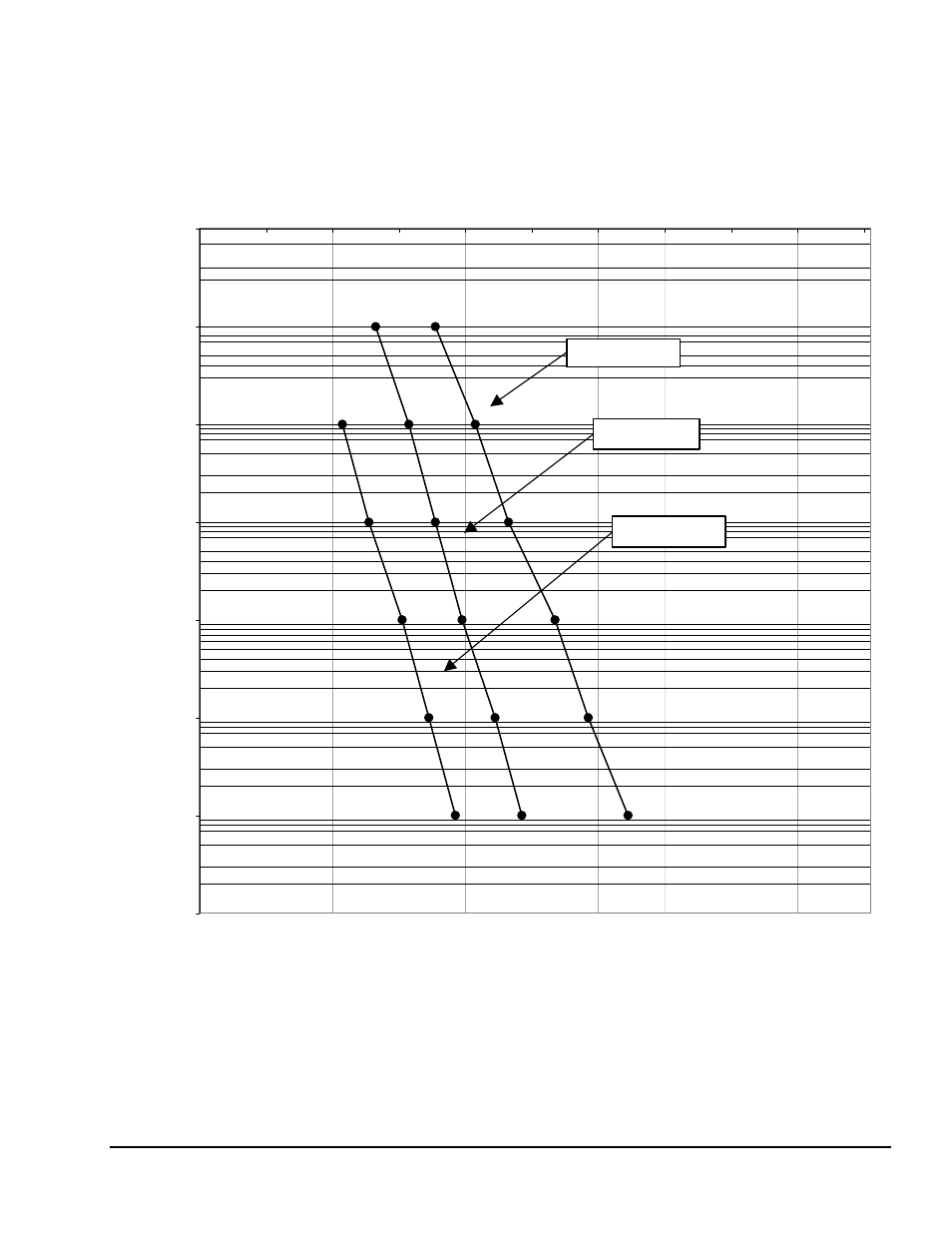

BPSK/OQPSK Sequential Decoder 56 Kbps
1.0E-09
1.0E-08
1.0E-07
1.0E-06
1.0E-05
1.0E-04
1.0E-03
1.0E-02
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
Eb/No (dB)
BER
Specification Limit
Rate 7/8 Coding
Specification
Limit
Specification Limit
Rate 1/2 Coding
Figure 7-6. Sequential Decoder and 56 kbps
