Chp_15 reed-solomon codec, Reed-solomon codec, Chapter 15. reed-solomon codec – Comtech EF Data SNM-1001L User Manual
Page 233
15–1
Chapter 15. REED-SOLOMON
CODEC
15.1 Reed-Solomon
Codec
Note: Refer to Chapter 2 Installation/Upgrades for Reed-Solomon installation.
The modem must have the Reed-Solomon PCB installed to access this feature. The
Reed-Solomon Codec PCB is a 4.75” x 6.00” (12.07 x 15.24 cm) daughter card
located on the main PCB (Figure 15-1).
TX REED-SOLOMON
RX REED-SOLOMON

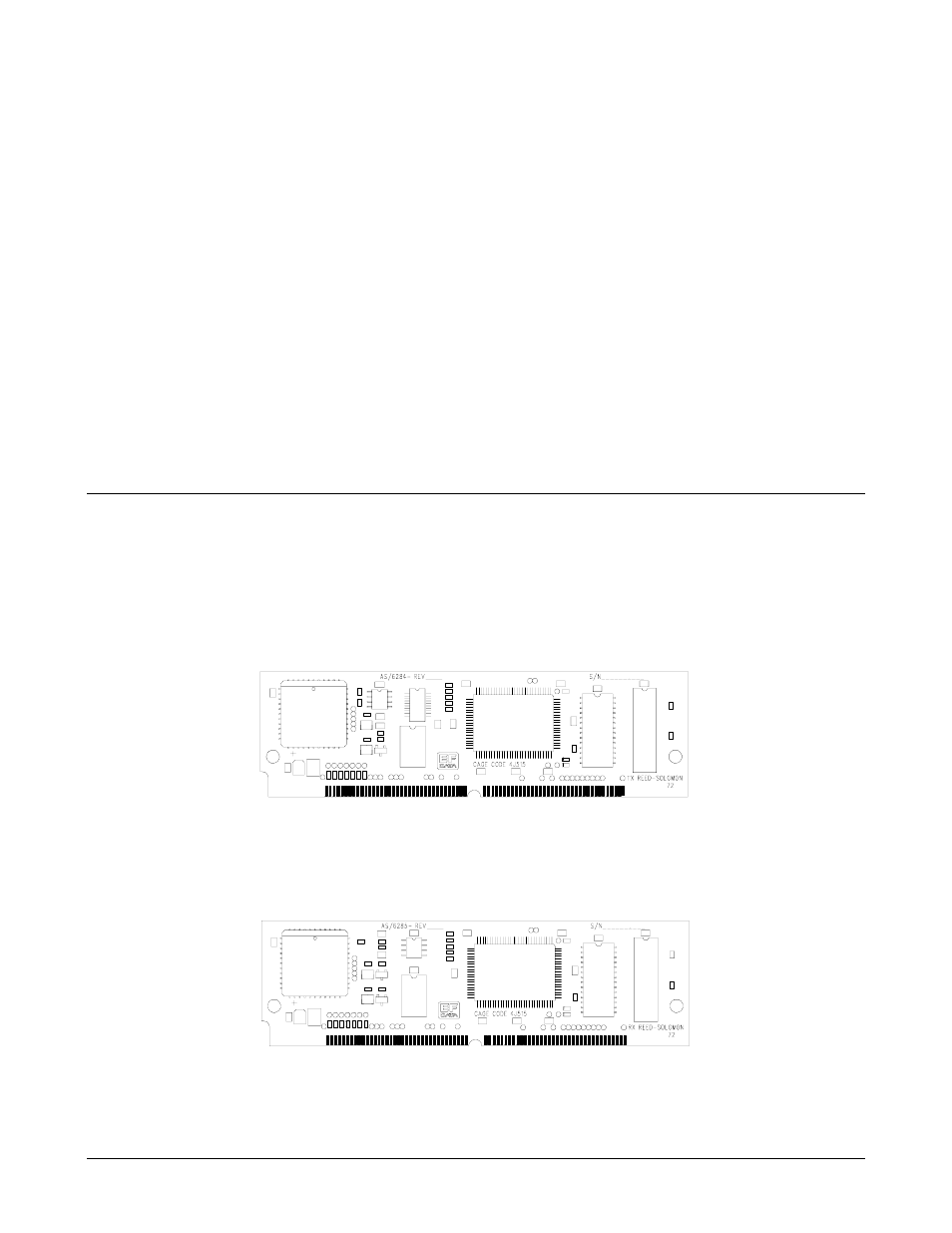

Figure 15-1. Reed-Solomon PCB (AS/5304-1)
