SNM-1001L Satellite Modem

Revision 1

Asymmetrical Loop Timing MN/SNM1001L.IOM

11–2


The transmit data is normally clocked into the modem with the Terminal Timing (TT)
clock in typical EIA-422 operation. The received data is clocked out with the Receive
Timing (RT) clock. The asymmetrical loop timing option allows the transmit and receive
data to be clocked with the same, or a multiple of the same clock. The added benefit is
that the transmit and receive data rates do not have to be the same.

PLL

DDS

TXD

TXC

EXT

REF

INT

RXC

S2

S1

MC

ST

TT

TXD

S4

S3

OUTPUT

Clock Selection

S1 set to:

S2 set to:

S3 set to:

S4 set to:

TX TERR (TT)

DDS

INT

TT

INT (SCT)

DDS

INT

ST

SCT (INT)

DDS

EXT REF (See Note 2)

ST

SCT (LOOP)

DDS

EXT REF (See Note 2)

ST

INT (LOOP)
(See Note 1)

RXC PLL

ST

EXT CLOCK

MC

PLL

ST


Notes:

1. When CONFIGURATION INTERFACE

→ LOOP TIMING is set to ON, SCT

(INT) will change to read: SCT (LOOP).

2. When CONFIGURATION MOD

→ MOD REF is set to EXT MOD, S3 will

switch to the EXT REF position.

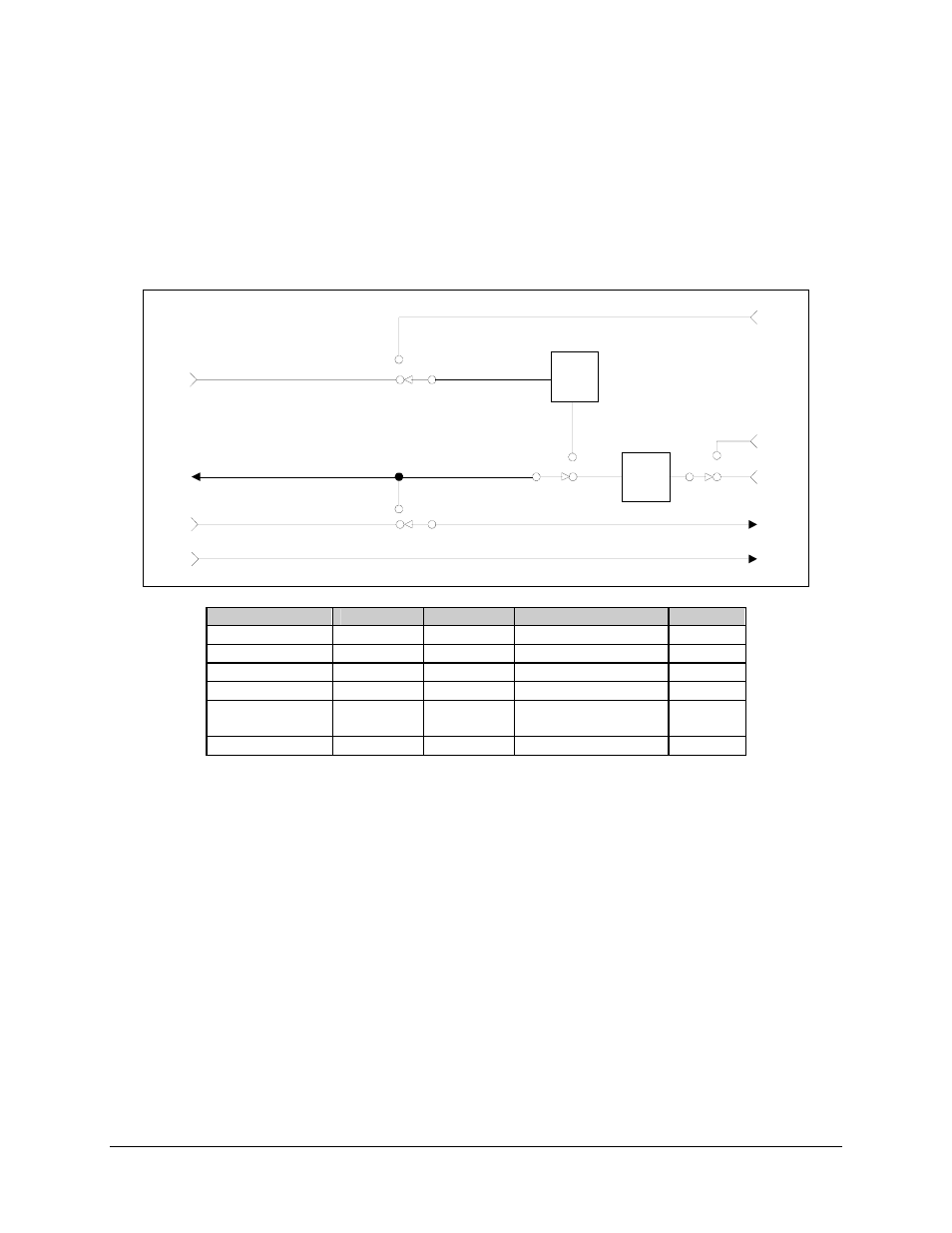

Figure 11-1. Transmit Section of the Asymmetrical Loop Timing Block Diagram
