High-Power C-Band Satellite Terminal Redundant System Installation
Rev. 0 4–15
4.3.3 Spar Installation
Note: EFData does not recommend the unit be spar mounted.
Install the RFTs to a spar as follows:
1. Set the units on their sides, with the mounting holes facing up.
2. Install the 8” unistruts as follows:

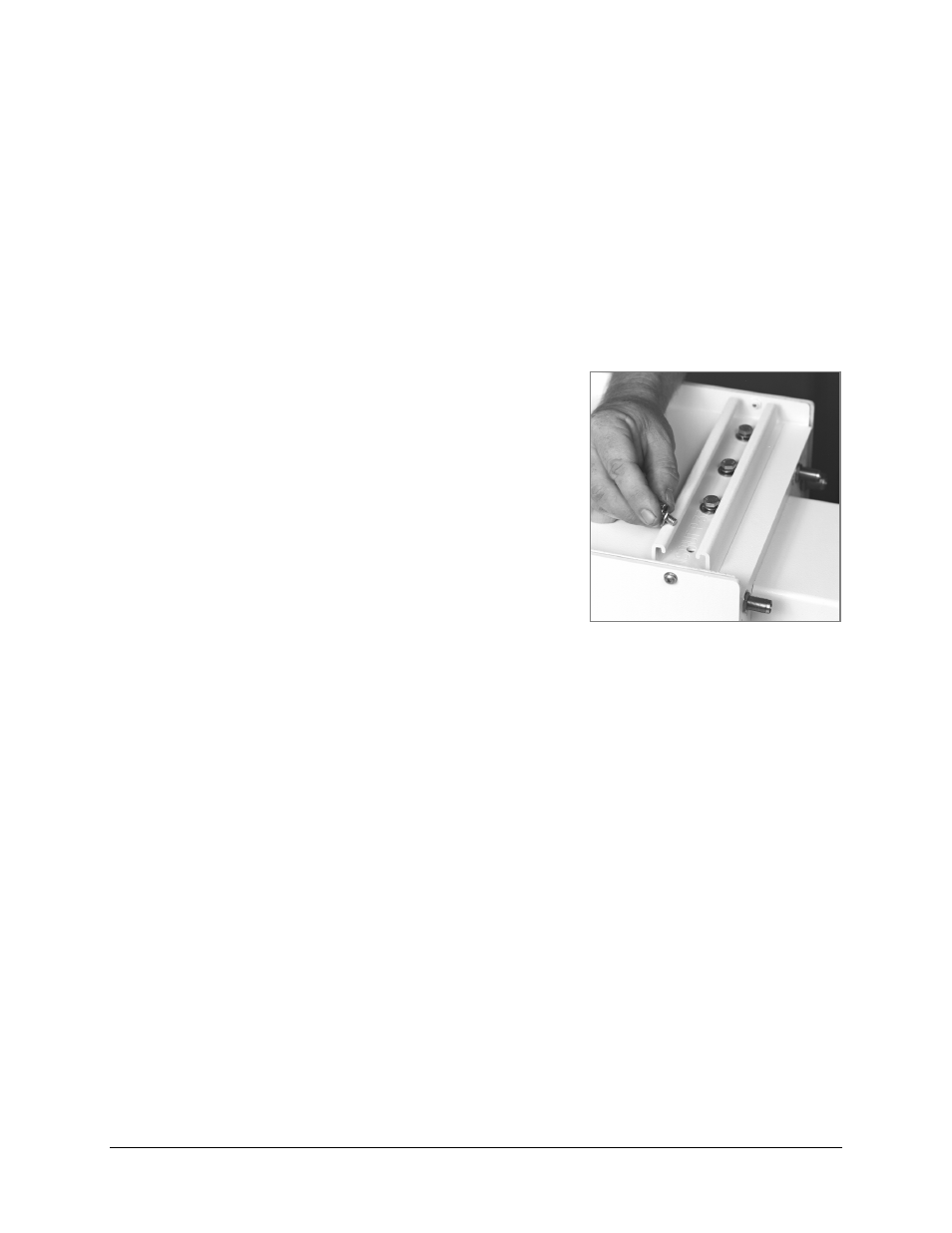

a. Position an 8” unistrut (with the open
side facing up) over one set of the
mounting holes on the RFT.
b. Using four 1/4-20 x 1” bolts, 1/4”
split lockwashers, and 1/4” flat
washers, attach an 8” unistrut to the
RFT.
Note: Tighten the bolts firmly.
c. Repeat Steps 2.a. and 2.b. for the
remaining 8” unistruts (for a total of
four).
