High-Power C-Band Satellite Terminal Single Thread System Installation
Rev. 0 3–9

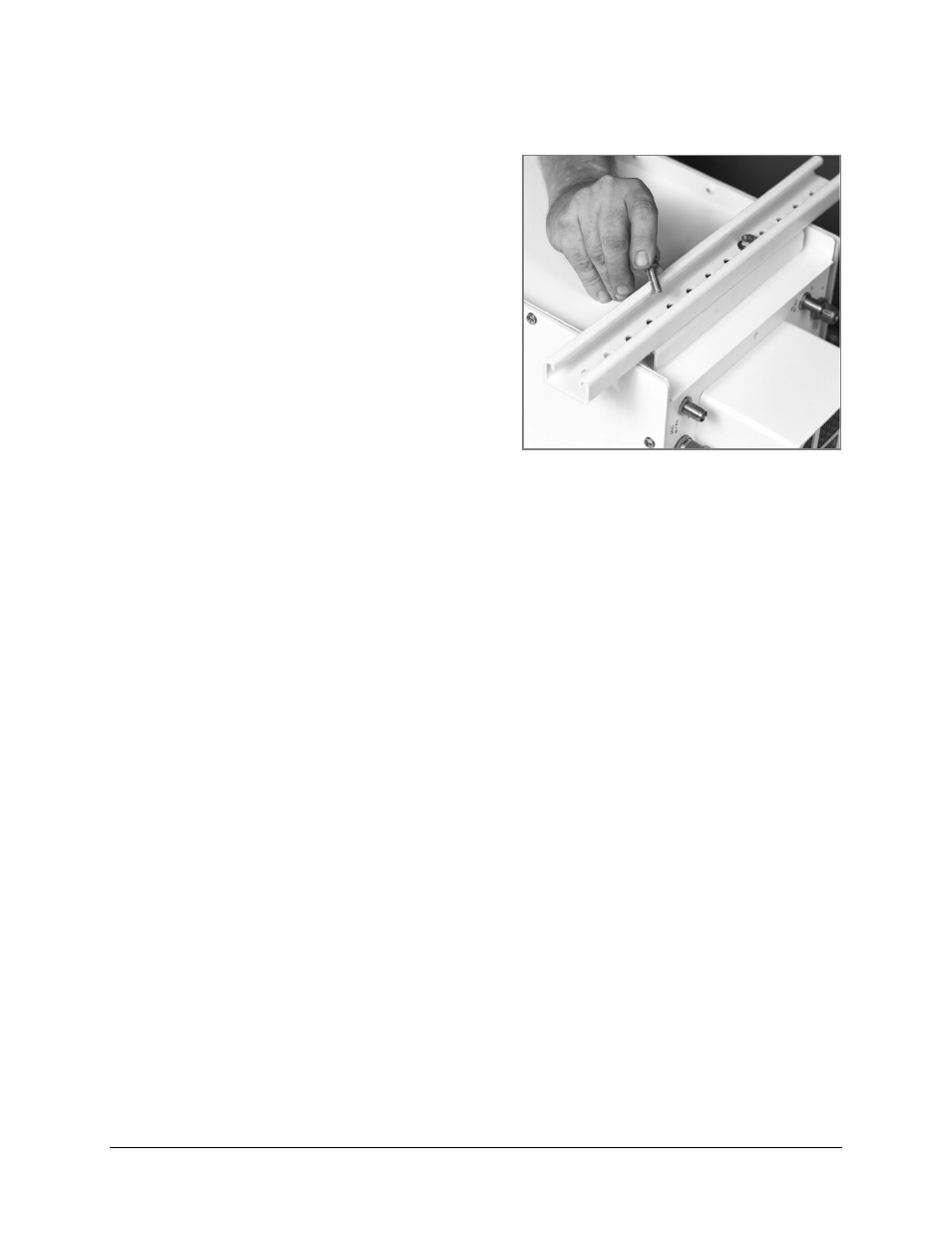

c. Position a 14” unistrut
(open side facing up) over
one of the 8” unistruts.
Note: Ensure the 14”
unistrut is centered over the
RFT.
d. Using two 5/16-18 x 1-1/4”
bolts, 5/16” split
lockwashers, and 5/16” flat
washers, attach the 14”
unistrut to the 8” unistrut.
Note: The bolts should be installed in the fifth hole from each end, as
illustrated.
e. Tighten the bolts firmly.
f. Attach the second 14” unistrut to the second 8” unistrut by repeating
Steps 3.a. through 3.d.
