High-Power C-Band Satellite Terminal Redundant System Installation
Rev. 0 4–25
Notes:
1. Ensure the flanges of the flat fitting plates are in the grooves of the
unistruts.
2. Before tightening the nuts on the threaded rods, ensure that the end of each
rod is screwed in until it contacts the unistrut. This ensures the rods are
threaded completely through the spring nuts.

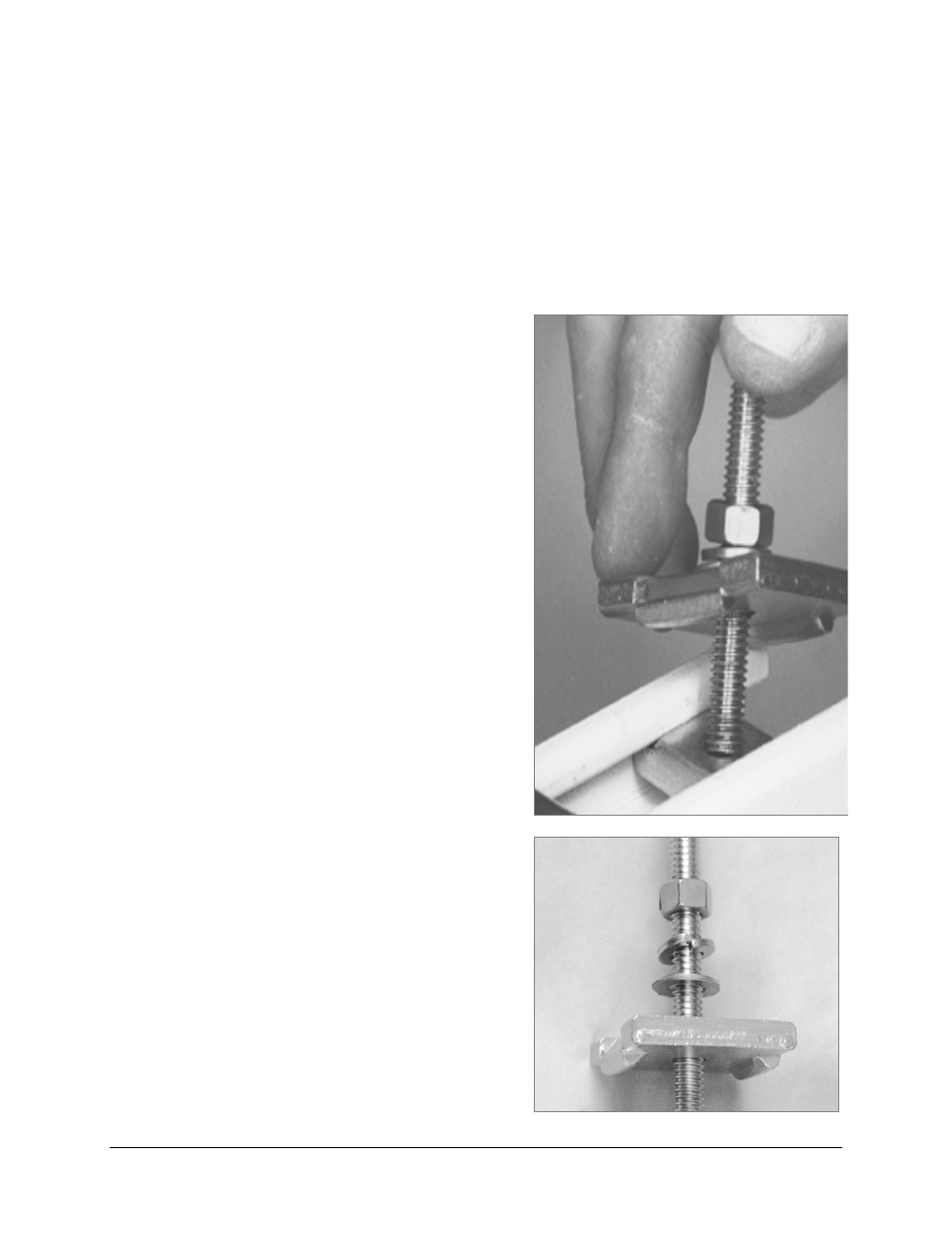

e. One threaded rod at a time,
hold the washers and plate in
place on the threaded rod and
screw it into a spring nut, as
illustrated.
f. Thread a 5/16-18 nut about 2”
onto the end of each threaded
rod. Tighten each nut firmly.
g. Slip a 5/16” split lockwasher,
5/16” flat washer, and flat
fitting plate (in that order)
onto each threaded rod.
