Redundant System Installation High-Power C-Band Satellite Terminal
4–10 Rev. 0

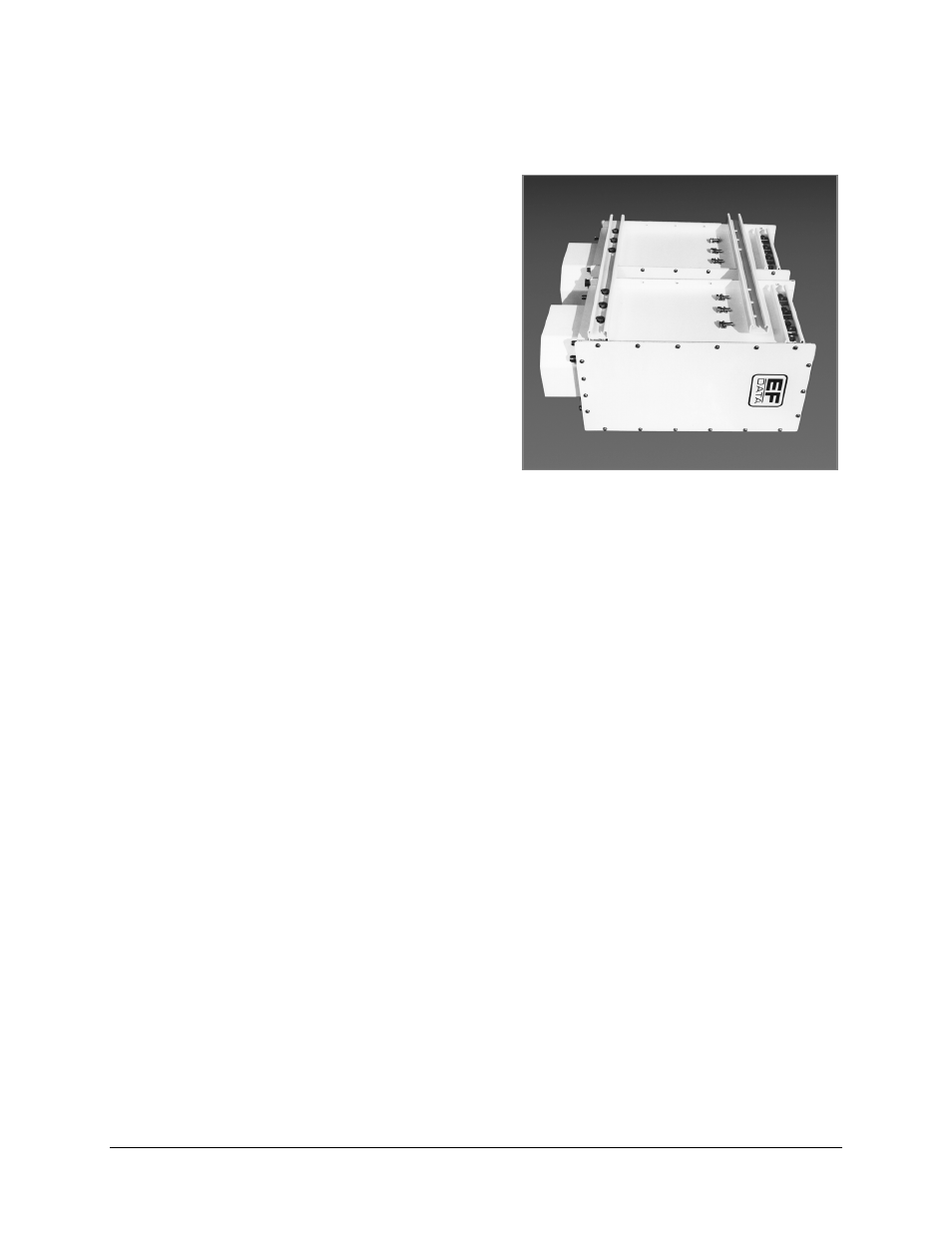

c. With the RFTs side-by-side,
position a 20” unistrut
(open side facing up) in
place over one pair of 8”
unistruts.
Note: Ensure the long
unistrut is centered over the
RFT.
d. Using two or three 5/16-18
x 1-1/4” bolts, 5/16” split
lockwashers, and 5/16” flat
washers, attach the 20”
unistrut to the 8” unistruts.
e. Tighten bolts firmly.
f. Attach the second 20” unistrut to the second set of 8” unistruts by repeating
Steps 3.a. through 3.d.
